Unusual Circuit board configuation

jw0752

I was busy salvaging a bunch of Dental electronic equipment for interesting parts when I came across this interesting circuit board construction and I thought you might get a kick out of it.

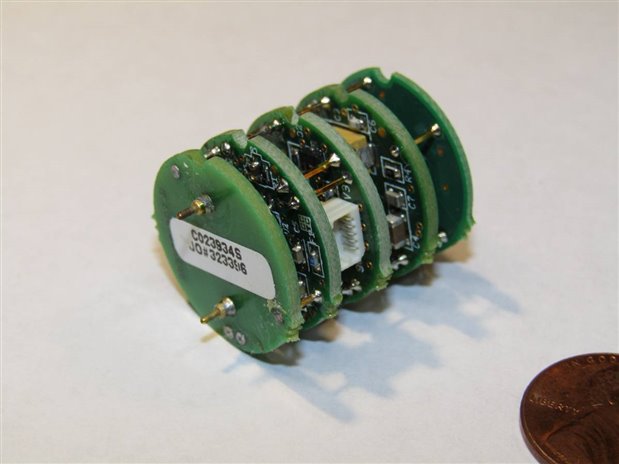

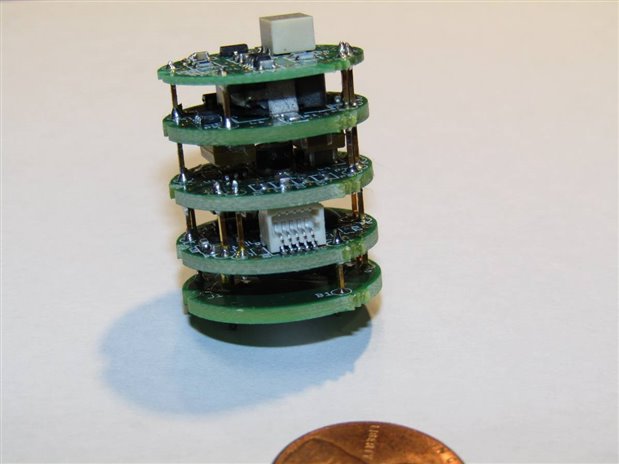

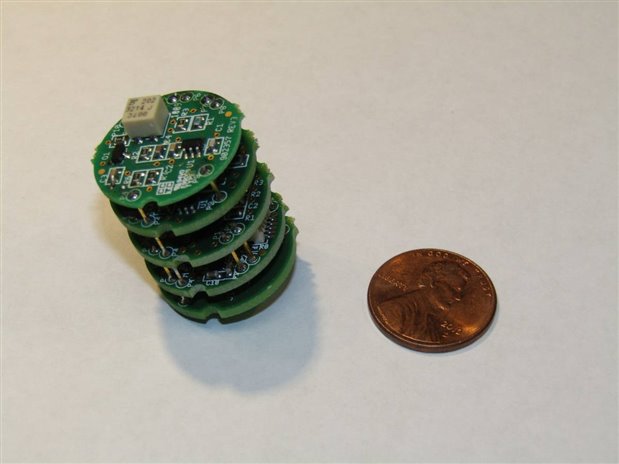

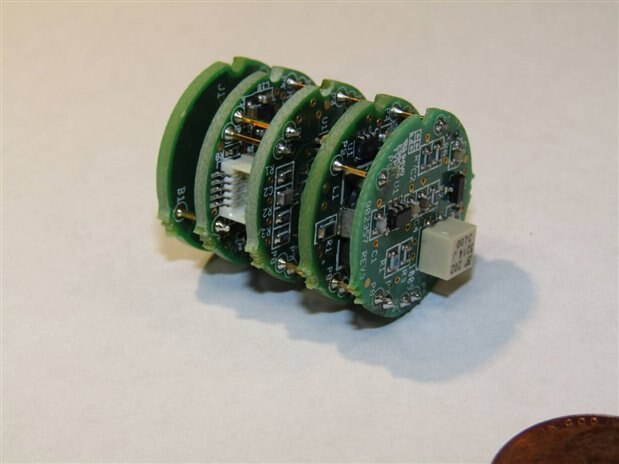

This is a driver circuit from a handheld LED composite cure light. It allows the operator to select a timer setting and drives a high power LED that has it's light output towards the blue end of the spectrum. The unit also controls a cooling fan the size of a dime to help cool the LED. In order to fit the needed components into a body witha diameter on the order of a broom handle they had to stack a set of circuit board disks 2.2 cm in diameter.  Pretty cool!
