Altera: DK-DEV-2AGX125N Arria II GX FPGA Development Kit

Overview

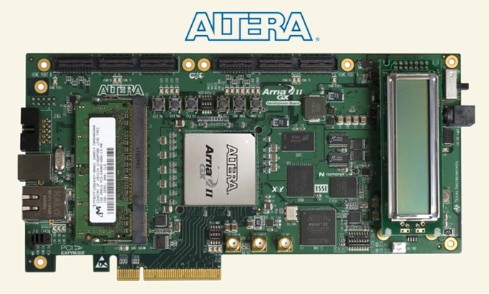

The Altera DK-DEV-2AGX125NDK-DEV-2AGX125N Arria II GX FPGA Development Kit is a complete design environment that includes both the hardware and software you need to develop Arria II GX FPGA designs. The PCI-SIG-compliant board and the one-year license for the Quartus II software provide everything you need to begin developing custom Arria II GX FPGA designs.

The board provides a wide range of peripherals and memory interfaces to facilitate the development of the Arria II GX FPGA designs. Two high-speed mezzanine card (HSMC) ports are available to add additional functionality via a variety of HSMCs available from Altera and various partners. Design advancements and innovations, such as the 3.75-Gbps transceiver modules, the PCI Express hard IP implementation, and programmable power technology ensure that designs implemented in the Arria II GX FPGAs operate faster, with lower power, and have a faster time to market than previous FPGA families.

The following list describes what you can accomplish with the kit:

• Develop and test PCI Express (PCIe) designs.
• Develop and test memory subsystems consisting of DDR2 and DDR3 memories.
• Take advantage of the modular and scalable design by using the high-speed mezzanine card (HSMC) connectors to interface to over 30 different HSMCs provided by Altera partners, supporting protocols such as Serial RapidIO, 10 Gigabit Ethernet, SONET, Common Public Radio Interface (CPRI), Open Base Station Architecture Initiative (OBSAI) and others.

Key Applications: Wireless, Wireline, Broadcast and Military.

Development Tools

Software Development Tools:

Hardware Development Tools:

Back to top

Technical Documents

Learning Center

Design Elements

Back to top

Video

You don't have permission to edit metadata of this video.

Edit media

Dimensions x Small Medium Large Custom

Subject (required) Brief Description Tags (separated by comma) Video visibility in search results Visible Hidden

Parent content

Altera: DK-DEV-2AGX260N Arria II GX FPGA Development Kit (6G Edition) Altera: DK-DEV-2AGX125N Arria II GX FPGA Development Kit

Poster

Upload Preview

Ok

Cancel

Back to top

Kit Features

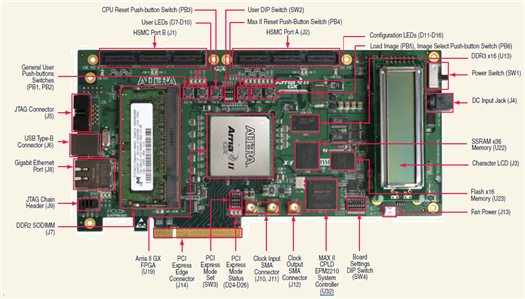

The board features the following major component blocks:
