Altera: DK-DEV-3CLS200N Cyclone III LS FPGA Development Kit

Overview

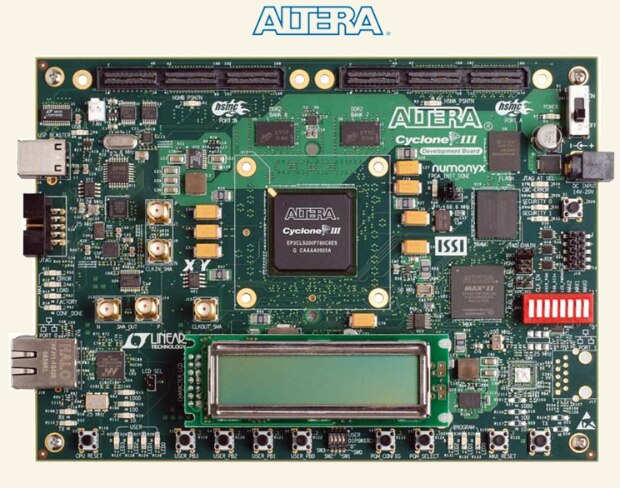

The Altera DK-DEV-3CLS200NDK-DEV-3CLS200N Cyclone III LS FPGA Development Kit is a complete design environment that includes both the hardware and software you need to develop Cyclone III LS FPGA designs. The board and the one-year license for the Quartus II software provide everything you need to begin developing custom Cyclone III LS FPGA designs.

The following list describes what you can accomplish with the development kit:

• Develop and test memory subsystems consisting of DDR2 memory
• Take advantage of the modular and scalable design by using the high-speed mezzanine card (HSMC) connectors to interface to over 20 different HSMCs provided by Altera partners

The Cyclone III LS FPGA development board provides a hardware platform for developing and prototyping low-power, secure, high-volume, feature-rich designs as well as to demonstrate the Cyclone III LS device's on-chip memory, embedded multipliers, and the Nios II embedded soft processor. The board provides a wide range of peripherals and memory interfaces to facilitate the development of the Cyclone III LS FPGA designs. Two high-speed mezzanine card (HSMC) connectors are available to add additional functionality via a variety of HSMCs available from Altera and various partners.

The Cyclone III LS FPGAs are the first to offer a suite of security features at the silicon, software, and intellectual property (IP) level on a low-power, high-functionality FPGA. This suite of security features protects your IP from tampering, reverse engineering, and cloning. Additionally, these devices enable you to introduce redundancy in a single chip using design separation, which in turn reduces the size, weight, and power of your applications.

The suite of security features in Cyclone III LS FPGAs consists of:

• Silicon security
  • 256-bit AES bitstream encryption
  • JTAG port protection
  • Internal oscillator
  • Zeroization (active clear)
  • Cyclical redundancy check (CRC)
• Software security
  • Design separation
• Supervisor IP

Key Applications: Automotive, Consumer, Display, Industrial, Military, Video and image processing and Wireless.

Development Tools

Software Development Tools:

Hardware Development Tools:

Back to top

Technical Documents

Learning Center

Design Elements

Back to top

Video

Video 1

Video 2

You don't have permission to edit metadata of this video. Edit media Dimensions x Small Medium Large Custom Subject (required) Brief Description Tags (separated by comma) Video visibility in search results Visible Hidden Parent content Altera: P0037 DE0 Development Board Altera: DK-DEV-3CLS200N Cyclone III LS FPGA Development Kit Altera: DK-START-3C25N Cyclone III FPGA Starter Board Altera: DK-DEV-3C120N Cyclone III FPGA Development Kit Poster Upload Preview Ok Cancel

You don't have permission to edit metadata of this video. Edit media Dimensions x Small Medium Large Custom Subject (required) Brief Description Tags (separated by comma) Video visibility in search results Visible Hidden Parent content Altera: P0037 DE0 Development Board Altera: DK-DEV-3CLS200N Cyclone III LS FPGA Development Kit Altera: DK-DEV-3C120N Cyclone III FPGA Development Kit Poster Upload Preview Ok Cancel

Back to top

Kit Features

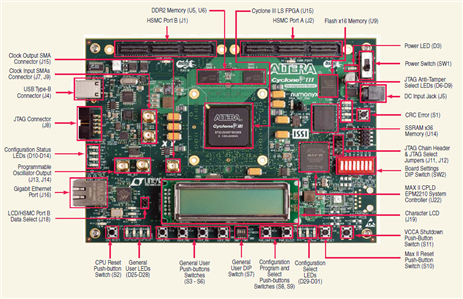

The board features the following major component blocks:

• Cyclone III LS EP3CLS200F780 FPGA in the 780-pin FineLine BGA (FBGA) package
  • 198,464 LEs
  • 8,211 Kbit on-die memory
  • 20 global clocks
  • 413 user I/O
  • 4 phase locked loops (PLLs)
  • 396 18x18 multipliers
  • 1.2-V core power
• MAX IIEPM2210F256 EPM2210F256 CPLD in the 256-pin FBGA package
  • 2.5-V core power
• FPGA configuration circuitry
  • MAX II CPLD EPM2210 EPM2210 System Controller and flash passive serial (PS) configuration
  • On-board USB-BlasterTM for use with the Quartus II Programmer
• On-Board ports
  • Two HSMC expansion ports
  • One gigabit Ethernet port
• On-Board memory
  • Two 512-Mbit 64-bit DDR2
  • 2-Mbyte Synchronous Static Random Access Memory (SSRAM)
  • 64-Mbyte flash
  • I2C EEPROM
• On-Board clocking circuitry
  • Four on-board oscillators
    • 50-MHz oscillator
    • 66.6-MHz oscillator
    • 100-MHz oscillator
    • Programmable oscillator with a default frequency of 125-MHz
  • LVPECL SMA connectors for external clock input
  • LVDS SMA connectors for external clock output
  • SMA connector for FPGA clock output
• General user I/O
  • LEDs and display
    • Four user LEDs
    • Two-line character LCD display
    • One configuration done LED
    • Three anti-tamper example design status LEDs
    • Five Ethernet LEDs
  • Push-Button switches
    • One CPU reset push-button switch
    • One MAX II configuration reset push-button switch
    • One PGM configure push-button switch (configure the FPGA from flash memory)
    • One PGM select push-button switch (select image to load from flash memory)
    • One VCCA shutdown push-button switch
    • One CRC error insert push-button switch
    • Four general user push-button switches
  • DIP switches
    • Four user DIP switches
    • Eight MAX II CPLD EPM2210 System Controller DIP switches
• Power supply
  • 14-V – 20-V DC input
  • On-board power measurement circuitry

Back to top

Kit Contents

The Altera DK-DEV-3CLS200NDK-DEV-3CLS200N Cyclone III LS FPGA Development Kit supplied with below contents:

Hardware:

• Cyclone III LS FPGA development board - A development platform that allows you to develop and prototype hardware designs running on the Cyclone III LS EP3CLS200 FPGA.
• Power supply and cables - The development kit includes the following items:
  • Power supply and AC adapters for North America/Japan, Europe, and the United Kingdom
  • USB cable
  • Ethernet cable

Software:

• Altera Complete Design Suite DVD - A DVD that includes the following items:
  • Quartus II Software
  • MegaCore IP Library
  • Nios II Embedded Design Suite (EDS)
• Cyclone III LS FPGA Development Kit CD-ROM - A CD-ROM that includes all the documentation and design examples for the kit.
