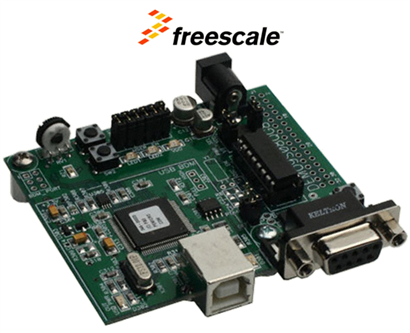

 | Kit Overview The DEMO9S08QG8DEMO9S08QG8 is a demonstration board for the MC9S08QG8MC9S08QG8 microcontroller. Development of application code is quick and easy with the integrated USB-to-BDM interface, CodeWarriorTM Development Studio, and software examples. A 32-pin connector allows connecting the DEMO9S08QG8 board to an expanded evaluation environment.

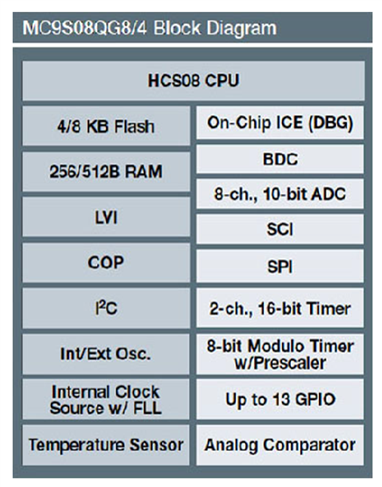

The S08QG Family of microcontrollers provide a wide variety of serial interfaces and peripherals, normally found in higher-end devices, all in a small package. Featuring low-power S08 8-bit architecture, S08QG devices are a perfect fit for battery-powered devices.
The operating modes of the MC9S08QG8/4 are described below. Entry into each mode, exit from each mode, and functionality while in each mode are described.
Key Applications:
| |||||||||||
| ||||||||||||
Development Tools
Software Development Tools:
| Tool Type | Supplier | MPN | Supported Family | Description |
|---|---|---|---|---|
| IDE | Freescale | CodeWarrior | All Freescale MCU's | Freescale's software and development solutions take you beyond the silicon, helping to bring your embedded applications to life. Learn More |
| RTOS | Freescale | MQX | ColdFire / HC08 / HC12 / ARM / S08 / RS08 / PowerPC | The Freescale MQX Real-Time Operating System (RTOS) provides real-time performance within a small, configurable footprint. This RTOS is designed to allow you to configure and balance code size with performance requirements. Learn More |
| RTOS | Micrium | uC/OS III | ColdFire / HC08 / HC12 / ARM / S08 / RS08 / PowerPC | μC/OS-III is Micrium’s newest RTOS, designed for developers who need to save time on their current and next embedded sytem projects. Using a commercial real-time kernel such as μC/OS-III provides a solid foundation and framework to the design engineer dealing with the growing complexity of embedded designs. Learn More |
| RTOS | Segger | embOS | ColdFire / HC08 / HC12 / ARM / S08 / RS08 | SEGGER embOS (Real Time Operating System) follows strict, yet efficient coding and documentation standards. embOS is a priority-controlled real time operating system, designed to be used as foundation for the development of embedded real-time applications. Learn More |
Hardware Development Tools:
| Tool Type | Supplier | MPN | Supported Family | Description |
|---|---|---|---|---|
| Debuggers, Emulators & JTAG Tools | Freescale | USBMULTILINKBDMEUSBMULTILINKBDME | HC08 / HCS12 / S08 / RS08 / Coldfire V1 | USB BDM Interface cable for the 68HC(S)12(X) and 68HCS08 and 68RS08 and ColdFire V1 |
| Debuggers, Emulators & JTAG Tools | Freescale | U-MULTILINKU-MULTILINK | HC08 / HCS12 / S08 / RS08 / Coldfire / Kinetis | P&E USB Multilink Universal debug and programming interface for HCS08, HC(S)12(X), ColdFire, Qorivva MPC55xx/56xx, and Kinetis |
| Debuggers, Emulators & JTAG Tools | Freescale | M68CYCLONEPROEM68CYCLONEPROE | HC08 / HCS12 / S08 / RS08 / Coldfire V1 | Hardware Debug Interface and Stand-Alone Programmer for HC08, HCS08, RS08, ColdFire V1, and HC(S)12(X) |
Technical Documents
Learning Center
| Type | Description |
|---|---|
| User Guide | Freescale: User Guide for MC9S08QG8 microcontroller |
| User Guide | Freescale: Quick Start Guide for DEMO9S08QG8 Demo Board |
| User Guide | Freescale: Application User Guide for DEMO9S08QG8 Microcontroller |
| Product Brief | Freescale: BR8BITLOWEND-Application document on 8-bit controllers |
| Application Note | Freescale: Application Note for DEMO9S08QG8 Demo Board |
Design Elements
| Type | Description |
|---|---|
| Schematic | Freescale: Schematics File for DEMO9S08QG8 Demo Board |
| Application Library | Freescale: Software Code for DEMO9S08QG8 Demo Board |
| Application Library | Freescale: SoftwareTest Code for DEMO9S08QG8 Demo Board |
Video
Kit Features
- MC9S08QG8MC9S08QG8 CPU, 16-pin DIP, Socketed
- 8K Byte Flash
- 512 Bytes RAM
- Internal 32 kHz Oscillator, trimmable to ±0.2%
- 12 GPIO, 1 Input Only, 1 Output only
- Timer Interface Module
- SCI and SPI Communication Ports
- IIC Module
- 8 KBI inputs
- 2-Ch, 16-bit, Timer Interface
- 8-Ch, 10-bit Analog to Digital Converter (ATD)
- Analog Comparator w/ internal compare
- USB-to-BDM Interface
- RS-232RS-232 Serial Port w/ DB9 Connector
- SPI, IIC ports available on Connector J1
- External 32.768 kHz Clock Oscillator Option
- Power Input Selection Jumper
- Power input from USB-BDM
- Power input from on-board regulator
- Power input from Connector J1
- Power output through Connector J1
- User Components Provided
- 3 Push Switches; 2 User, 1 Reset
- 3 LED Indicators; 2 User, 1 VDD
- Jumpers
- USER_EN
- PWR_SEL
- COM_SEL
- VX_EN
- Connectors
- 32-pin MCU I/O Connector
- 2.0mm Barrel Connector
- DB9 Serial Connector
- Specifications:
- Board Size 2.9 x 2.5
- Power Input:
- USB Cable - 500mA max
- PWR Connector - 9VDC typical, +7VDC to +18VDC
Kit Contents
The Freesacale's DEMO9S08QG8EDEMO9S08QG8E is Supplied with below contents;
- Installation Guide
- Demonstration Board
- CodeWarrior
Software - Adapter cable
- Resource CD–ROM
