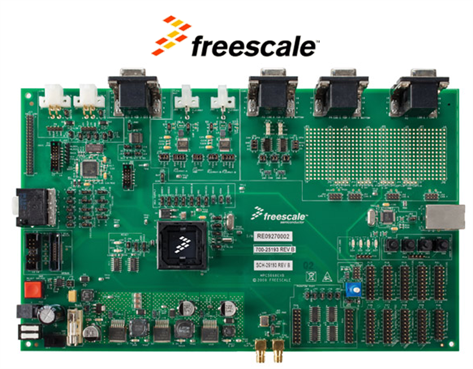

Kit Overview

The Evaluation Kit MPC5668GKIT built on Dual core Power Architecture technology which uses 32-bit MPC5668G MCU, It connects at one single point all the possible communication protocols you can find in a car. The dual-core architecture provides the performance throughput you need to maintain real-time operation backed-up by a strong third-party ecosystem support.

The Qorivva MPC56xx family of 32-bit microcontrollers built on Power Architecture Technology, is designed for engine management applications, body control, gateway, safety, chassis and driver information applications. The Qorivva MPC56xx and MPC55xx families offer significant benefits to automotive designers:

Software and hardware compatibility from low to high end.
Scalability among different core versions and product features
Embedded flash experience implemented in a high-density, floating-gate technology
Unmatched efficiency-parallel processing in conjunction with sophisticated peripheral sets leverages Power Architecture tools and software ecosystem
Designed to assist meeting present and future emmission regulations

Key Applications: Automotive - Central Body Controllers, Automotive Gateways, Battery State of Health Monitoring, Battery Monitoring Central Gateway / In-Vehicle Networking and Body Electronics .

More Development Kits and Tools
	Freescale Development Kits		Freescale Development Tools
	Development Platforms & Kits		element14 Knode

Development Tools

Software Development Tools:

Tool Type	Supplier	MPN	Supported Family	Description
IDE	Freescale	CodeWarrior	All Freescale MCU's	Freescale's software and development solutions take you beyond the silicon, helping to bring your embedded applications to life. Learn More
RTOS	Freescale	MQX	ColdFire / HC08 / HC12 / ARM / S08 / RS08 / Power Arch.	The Freescale MQX Real-Time Operating System (RTOS) provides real-time performance within a small, configurable footprint. This RTOS is designed to allow you to configure and balance code size with performance requirements. Learn More
RTOS	Micrium	uC/OS III	ColdFire / HC08 / HC12 / ARM / S08 / RS08 / Power Arch.	μC/OS-III is Micrium’s newest RTOS, designed for developers who need to save time on their current and next embedded sytem projects. Using a commercial real-time kernel such as μC/OS-III provides a solid foundation and framework to the design engineer dealing with the growing complexity of embedded designs. Learn More

Tool Type

Supplier

MPN

Supported Family

Description

IDE

Freescale

CodeWarrior

All Freescale MCU's

Freescale's software and development solutions take you beyond the silicon, helping to bring your embedded applications to life. Learn More

RTOS

Freescale

MQX

ColdFire / HC08 / HC12 / ARM / S08 / RS08 / Power Arch.

The Freescale MQX Real-Time Operating System (RTOS) provides real-time performance within a small, configurable footprint. This RTOS is designed to allow you to configure and balance code size with performance requirements. Learn More

RTOS

Micrium

uC/OS III

ColdFire / HC08 / HC12 / ARM / S08 / RS08 / Power Arch.

μC/OS-III is Micrium’s newest RTOS, designed for developers who need to save time on their current and next embedded sytem projects. Using a commercial real-time kernel such as μC/OS-III provides a solid foundation and framework to the design engineer dealing with the growing complexity of embedded designs. Learn More

Hardware Development Tools:

Tool Type	Supplier	MPN	Supported Family	Description
Debuggers, Emulators & JTAG Tools	Freescale	USBMLPPCBDMUSBMLPPCBDM	Power Architecture	USB Power Architecture BDM Multilink

Technical Documents

Learning Center

Type	Description
User Guide	Freescale: Quick Start Guide for MPC5668GKITJ Dev Kit
User Manual	Freescale: User Manual for Guide for MPC5668GKITJ Dev Kit
Datasheet	Freescale: Datasheet for MPC5668x Microcontroller
Application Note	Freescale: Application Note for MPC56xx C90FL Flash Recovery
Application Note	Freescale: Application Note for System Integration Unit Lite Pin Multiplexing
Application Note	Freescale: Application Note for Qorivva MPC56xx Flash Programming Through Nexus/JTAG
Application Note	Freescale: Application Note for MPC5668x Family Demonstration Lab Training

Design Elements

Type	Description
Schematic	Freescale: Schamatics File for Guide for MPC5668GKITJ Dev Kit
Application Library	Freescale: Software Code for MPC5668x Family Demonstration Lab Training

Video

Video1	Video2
This video is unavailable. You don't have permission to edit metadata of this video.	This video is unavailable. You don't have permission to edit metadata of this video.

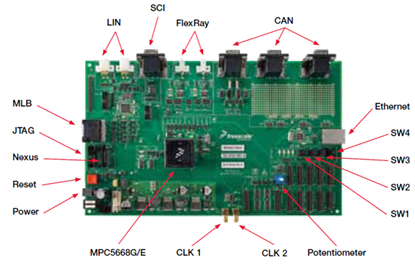

Kit Features

MCU Socket supporting the 208BGA production package and the 256BGA development package
Single 12-14V external power supply input with on-board regulators to provide all of the necessary EVB and MCU voltages
Flexible MCU clocking options
Standard 14-pin ONCE debug connector and 38-pin MICTOR Nexus connectors
Ethernet signals routed to a National Semiconductor physical interface and Pulsejack RJ45 connector with integrated magnetics
Supports all automotive communication protocols currently available
Optimized for communication data management:
- 592 KB embedded RAM, split into two blocks to allow concurrent accesses by bus masters
- Additional e200z0 core to pre-process incoming communication data from high-speed networks,such as FlexRayTM and Ethernet

Kit Contents

The Freescale's MPC5668GKITJ is Supplied with below contents:

MPC5668GKITJ Evaluation Kit
Power supply 12VDC 5A, with US cord and adapters EUR, UK, AUST. PSE approved
Cable: DB9 M/F, RS-232RS-232 serial, 6 ft
Cable, 6ft. USB2.0 A-M to B-M
P&E PowerPC Nexus Multilink for Freescale MPC55XX microcontrollers, RoHS compliant
Freescale warranty card
MPC5668GKITJ Quick Start
MPC5668EVB hardware doc DV
