Digilent: 210-229 chipKIT Pmod Shield-Uno

Buy NowBuy Now

Kit Overview

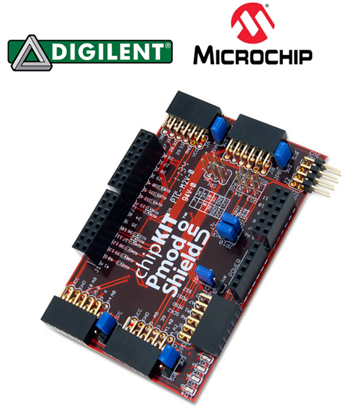

The Digilent chipKIT Pmod Shield-Uno (210-229210-229) is an input/output expansion board for use with the chipKIT Uno32chipKIT Uno32. It provides the additional circuitry and connectors to allow Digilent peripheral modules (Pmods) to be used with the Uno32. The Pmod Shield-Uno (210-229210-229) has five 2x6 Digilent Pmod connectors. It also provides access to the I/O connectors available on the Uno32 as well as connecting to the I²C bus supported by the Uno32. The Pmod Shield-Uno has the same form factor as the Uno32 board.

The Pmod Shield-Uno (210-229210-229) is designed to be used with the chipKIT Uno32chipKIT Uno32 board. When used in combination, the two boards provide the necessary supporting hardware and connectors to make use of all of the advanced communications and networking features of the Microchip's PIC32MX795F512LPIC32MX795F512L microcontroller on the Uno32. The chipKIT Uno32chipKIT Uno32 is based on the popular Arduino open-source hardware prototyping platform and adds the performance of the Microchip PIC32 microcontroller.

The chipKIT Uno32chipKIT Uno32 is the same form factor as the Arduino Uno board and is compatible with Arduino shields. It features a USB serial port interface for connection to the IDE and can be powered via USB or an external power supply. The chipKIT Uno32chipKIT Uno32 board takes advantage of the powerful PIC32MX320F128PIC32MX320F128 microcontroller. This microcontroller features a 32-bit MIPS processor core running at 80Mhz, 128K of flash program memory and 16K of SRAM data memory. In addition, the Uno32 is fully compatible with the advanced Microchip MPLAB IDE and the PICKit3PICKit3 in-system programmer/debugger.

Microchip's 32-bit portfolio with the MIPS M4K offers high performance microcontrollers, and all the tools needed to develop your embedded project. With free software, low cost development tools, and pin/peripheral compatibility from 16-bit product lines, PIC32 MCUs shorten time to market and allow your designs to grow. PIC32 gives your application the processing power, memory and peripherals your design needs!

Key Applications: Embedded applications

More Development Kits and Tools
	Microchip Development Kits		Microchip Development Tools
	Development Platforms & Kits		element14 Knode

Development Tools

Software Development Tools:

Tool Type	Supplier	MPN	Supported Family	Description
IDE	Microchip	MPLAB IDE	PIC/dsPIC	MPLAB IDE for all Microchip platforms. Learn More
RTOS	Micrium	uC/OS III	PIC24, dsPIC33, PIC32 (MIPS)	μC/OS-III is Micrium’s newest RTOS, designed for developers who need to save time on their current and next embedded sytem projects. Using a commercial real-time kernel such as μC/OS-III provides a solid foundation and framework to the design engineer dealing with the growing complexity of embedded designs. Learn More
RTOS	Segger	embOS	PIC18/PIC24F/PIC24H	SEGGER embOS (Real Time Operating System) follows strict, yet efficient coding and documentation standards. embOS is a priority-controlled real time operating system, designed to be used as foundation for the development of embedded real-time applications. Learn More

Tool Type

Supplier

MPN

Supported Family

Description

IDE

Microchip

MPLAB IDE

PIC/dsPIC

MPLAB IDE for all Microchip platforms. Learn More

RTOS

Micrium

uC/OS III

PIC24, dsPIC33, PIC32 (MIPS)

μC/OS-III is Micrium’s newest RTOS, designed for developers who need to save time on their current and next embedded sytem projects. Using a commercial real-time kernel such as μC/OS-III provides a solid foundation and framework to the design engineer dealing with the growing complexity of embedded designs. Learn More

RTOS

Segger

embOS

PIC18/PIC24F/PIC24H

SEGGER embOS (Real Time Operating System) follows strict, yet efficient coding and documentation standards. embOS is a priority-controlled real time operating system, designed to be used as foundation for the development of embedded real-time applications. Learn More

Hardware Development Tools:

Tool Type	Supplier	MPN	Supported Family	Description
Debuggers, Emulators & JTAG Tools	Microchip	DV244005DV244005	PIC/dsPIC	MPLAB REAL ICE In-Circuit-Emulator
Debuggers, Emulators & JTAG Tools	Microchip	DV164035DV164035	PIC/dsPIC	MPLAB ICD 3 In-Circuit-Debugger
Debuggers, Emulators & JTAG Tools	Microchip	PG164130PG164130	PIC/dsPIC	MPLAB PICkit 3 Debugger Programmer

Technical Documents

Learning Center

Type	Description
Datasheet	Microchip: Data Sheet for PIC32MX3XX/4XX Family
Datasheet	Microchip: Data Sheet for PIC32MX5XX/6XX/7XX Family
Application Note	Microchip: Application Note on Debugging chipKIT with MPLAB IDE 8
Solution Guide	Microchip: Flash Programming Specification for PIC32MX
User Manual	Microchip: Jumpers settings on the chipKIT Uno32 board
Reference Manual	Microchip: chipKIT Uno32 reference manual
Reference Manual	Microchip: Hardware Reference Manual For chipKIT Uno32 Board
Reference Manual	Digilent: Reference Manual for chiipKIIT Pmod Shiielld-Uno

Design Elements

Type	Description
Schematics	Microchip: chipKIT Uno32 schematics
Schematics	Microchip: Open source EAGLE v5.11 project for the chipKIT Uno32
Schematics	Microchip: chipKIT Uno32 Pinout Table
Schematics	Microchip: Schematic ForchipKITUno32 Board
Application Library	Microchip: Software Code For chipKIT Uno32 Board
Code Snippet	Microchip: chipKIT Bootloader Image loaded into the Uno32's PIC32 microcontroller

Video

Video 1	Video 2
You don't have permission to edit metadata of this video. Edit media Dimensions x Subject (required) Brief Description Tags (separated by comma) Video visibility in search results Parent content Poster Upload Preview	You don't have permission to edit metadata of this video. Edit media Dimensions x Subject (required) Brief Description Tags (separated by comma) Video visibility in search results Parent content Poster Upload Preview

Kit Features

Usable with the chipKIT Uno32chipKIT Uno32
Gives Uno32 users access to our full line of Pmod peripheral modules
Five 2x6 Digilent Pmod connectors
One 6-pin header connector for SPI
One I²C daisy chain connector

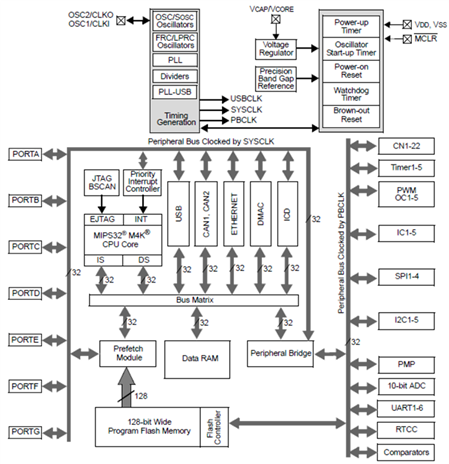

Microchip PIC32MX795F512LPIC32MX795F512L Features: MCU Core

80MHz, 1.56 DMIPS/MHz, 32-bit MIPS M4K Core
USB 2.0 On-The-Go Peripheral with integrated PHY
10/100 Ethernet MAC with MII/RMII Interfaces
2 x CAN2.0b modules with 1024 buffers
8 Dedicated DMA Channels for USB OTG, Ethernet, and CAN
5 Stage pipeline, Harvard architecture
MIPS16e mode for up to 40% smaller code size
Single cycle multiply and hardware divide unit
32 x 32-bit Core Registers
32 x 32-bit Shadow Registers
Fast context switch and interrupt response

MCU System Features

512K Flash (plus 12K boot Flash)
128K RAM (can execute from RAM)
8 Channel General Hardware DMA Controller
Flash prefetch module with 256 Byte cache
Lock instructions or data in cache for fast access
Programmable vector interrupt controller

Analog Features

Fast and Accurate 16 channel 10-bit ADC,
Max 1 Mega sample per second at +/- 1LSB, conversion available during SLEEP & IDLE

Power Management Modes

RUN, IDLE, and SLEEP modes
Multiple switchable clock modes for each power mode, enables optimum power settings

Debug Features

iFlow Trace: Non-intrusive Hardware Instruction Trace port (5 Wires)
8 hardware breakpoints (6 Instruction and 2 Data)
2 wire programming and debugging interface
JTAG interface supporting Programming, Debugging and Boundary scan

Other MCU Features

Fail-Safe Clock Monitor - allows safe shutdown if clock fails
2 Internal oscillators (8MHz & 31KHz)
Hardware RTCC (Real-Time Clock and Calendar with Alarms)
Watchdog Timer with separate RC oscillator
Pin compatible with 16-bit PIC MCUs
Serial Communication Modules allow flexible UART/SPI/I2C configuration

Kit Contents

The Digilent's 210-229210-229 chipKIT Pmod Shield-Uno kit is supplied with the below contents:

chiipKIIT Pmod Shield-Uno Expansion Board
Five 2x6 Digilent Pmod connectors
One 6-pin header connector for SPI
One I²C daisy chain connector
