Freescale: TRK-MPC5604B MPC5604B StarterTRAK Development Kit

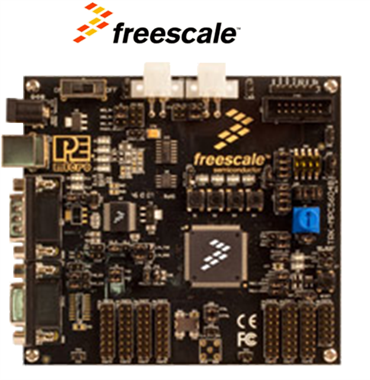

Kit Overview The Freescale's TRK-MPC5604BTRK-MPC5604B board is part of the Freescale StarterTRAK series, a development platform that enables rapid prototyping and tool re-use. Take your design to the next level and begin constructing with your StarterTRAK system today.   The TRK-MPC5604BTRK-MPC5604B is a low-cost development system supporting Freescale MPC5604B/MPC5607B microcontrollers in 144LQFP packages. The Embedded OSJTAG circuitry on the TRK-MPC5604B board allows the processor on the board to be debugged and programmed via USB from a PC. In addition, the demo board can be powered using the USB bus.   The TRK-MPC5604BTRK-MPC5604B is a demonstration and development system for Freescale’s MPC5604B microcontrollers in 144LQFP packages. Application development is quick and easy using Embedded OSJTAG. An optional 14-pin JTAG port is provided to allow the use of an external Power Architecture Nexus interface such as P&E’s USB Multilink or Cyclone MAX automated programmer. P&E’s USB Multilink provides faster communication speeds and can be used to debug both the TRK-MPC5604B and the user’s own targets. The DEMO board’s Embedded OSJTAG is intended to function with the onboard processor only. It cannot be used to communicate with other devices.   The Qorivva MPC560xB/C family of 32-bit microcontrollers (MCUs) includes the latest in integrated devices for automotive body electronics applications. These scalable Power Architecture devices are supported by an enablement ecosystem that includes software drivers, operating systems and configuration code to help you quickly implement your designs.   Key Applications: Automotive body and industrial applications

More Development Kits and Tools Freescale Development Kits Freescale Development Tools Development Platforms & Kits element14 Knode

Development Tools

Software Development Tools:

Hardware Development Tools:

Back to top

Technical Documents

Learning Center

Design Elements

Back to top

Video

Video 1

Video 2

You don't have permission to edit metadata of this video. Edit media Dimensions x Small Medium Large Custom Subject (required) Brief Description Tags (separated by comma) Video visibility in search results Visible Hidden Parent content Freescale: TRK-MPC5604P StarterTRAK Development Kit for MPC5604P MCU Freescale: TRK-MPC5604B MPC5604B StarterTRAK Development Kit Video: StarterTRAK speeds your design for Qorivva 32-bit Automotive MCUs * Video: StarterTRAK speeds your design for Qorivva 32-bit Automotive MCUs* Comment on StarterTRAK Development Boards * Poster Upload Preview Ok Cancel

You don't have permission to edit metadata of this video. Edit media Dimensions x Small Medium Large Custom Subject (required) Brief Description Tags (separated by comma) Video visibility in search results Visible Hidden Parent content Freescale: TRK-MPC5604B MPC5604B StarterTRAK Development Kit MPC5604B Interior Lighting Demo * Poster Upload Preview Ok Cancel

Back to top

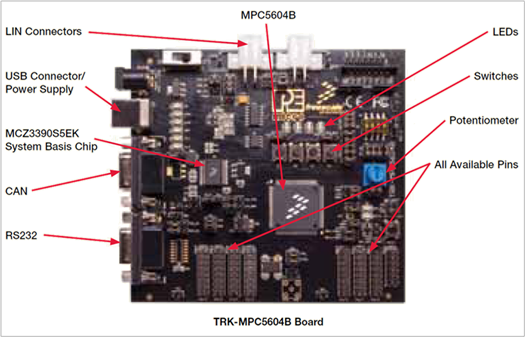

Kit Features

• MPC5604B/C Microcontroller in a 144LQFP package
• On-board JTAG connection via open source OSBDM circuit using the MPC9S08JM microcontroller
• MCZ3390S5EK system basis chip with advanced power management and integrated CAN transceiver
• CAN & LIN Interface
• Analog Interface with potentiometer
• High- efficiency LEDs
• SCI serial communication interface

TRK-MPC5604BTRK-MPC5604B Board Features:

• TRK-MPC5604BTRK-MPC5604B Board FeaturesSoldered MPC5604B LQFP144 device
• Access to MCU pins with standard headers
• Embedded OSJTAG: USB to JTAG circuitry which allows host PC to communicate with the microcontroller through USB 2.0.
• On-board Virtual Serial Port
• ON/OFF Power Switch w/ LED indicator
• A 9VDC to 12VDC power supply input barrel connector
• Power Input Selection Jumpers for selecting the input voltage source:
  • Power Input from USB Connector
  • Power Input from DC Power Jack
    • Freescale MC3390x
    • External LDO power circuitry
• Jumper to select BAM source:
  • From internal memory
  • From CAN
  • From LIN Flex
• RESET Push Button and LED indicator w/ enable
• User Features:
  • 4 User Push Buttons w/ enable and pull-up & pull-down options
  • 4 DIL switches w/ enable and pull-up & pull-down options
  • 10K Ohm POT connected to an ADC input channel w/ enable
  • 1 photocell w/ enable
  • 4 User LED’s w/ enable
  • 1 RS232 interface w/ enable (DB9 and transceiver footprint only)
  • 1 CAN interface w/ enable to high-speed CAN transceiver with DB9 CAN connector
  • 2 LIN channels w/ enable sharing one LIN transceiver with two standard LIN connectors
  • 4 distinct GND test points
• Specifications:
  • Board Size 4.7” x 4.3”
  • Power Input:
  • USB Cable: 5VDC, 500mA max
  • DC Power Jack: 2.1/5.5mm barrel connector, 9VDC to 12VDC Center Positive

Back to top

Kit Contents

The Freescale's TRK-MPC5604BTRK-MPC5604B StarterTRAK Development Kit is supplied with the below contents:

• TRK-MPC5604B Board
• TRK-MPC5604B DVD-ROM (includes CodeWarrior software)
• USB A–to–B Cable
• Freescale Warranty Card

Back to top
