| Kit Overview

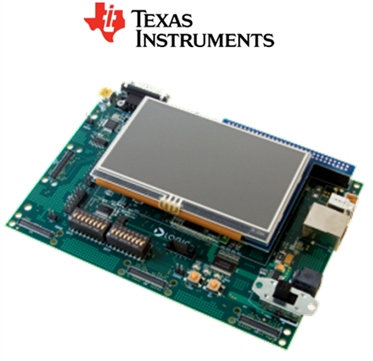

The Zoom OMAP-L138OMAP-L138 eXperimenter Kit is a low-cost application development kit for evaluating the functionality of Texas Instruments' energy-efficient OMAP-L138OMAP-L138 applications processor and Logic PD's System on Module (SOM).
Application development is performed right on the product-ready OMAP-L138OMAP-L138 SOM-M1 and software Board Support Packages (BSPs) included in the kit, which enables you to seamlessly transfer your application code and hardware into production.
The OMAP-L138OMAP-L138 SOM-M1 is ideal for applications that require high-speed data transfer and high-capacity storage, such as test and measurement, public safety radios, music effects and intelligent occupancy sensors. The OMAP-L138OMAP-L138 offers a universal parallel port (uPP) and is the first TI device with an integrated Serial Advanced Technology Attachment (SATA) interface. For medical, industrial, audio, and communication products, the OMAP-L138OMAP-L138 SOM M1 allows for powerful versatility, long-life, and greener products.
The OMAP-L138OMAP-L138 C6-Integra DSP+ARM processor is a low-power applications processor based on an ARM926EJ-S and a C674x DSP core. It provides significantly lower power than other members of the TMS320C6000 platform of DSPs.
The device enables OEMs and ODMs to quickly bring to market devices featuring robust operating systems support, rich user interfaces, and high processing performance life through the maximum flexibility of a fully integrated mixed processor solution.
Key Applications: Medical, Industrial, Audio, Communication,etc. | |||||||||||
| ||||||||||||
Development Tools
Software Development Tools:
| Tool Type | Supplier | MPN | Supported Family | Description |
|---|---|---|---|---|
| IDE | Texas Instruments | Code Composer Studio (CCStudio) | TI ARM MCUs | CCStudio is an integrated development environment (IDE) for TI embedded processor families. CCStudio comprises a suite of tools used to develop and debug embedded applications. It includes compilers for each of TI's device families, source code editor, project build environment, debugger, profiler, simulators, real-time operating system and many other features. Learn More |
| IDE | ARM | Keil MDK-ARM | ARM Cortex -M / Cortex-R4 / ARM7 / ARM9 | The MDK-ARM is a complete software development environment for Cortex-M, Cortex-R4, ARM7 and ARM9 processor-based devices. MDK-ARM is specifically designed for microcontroller applications, it is easy to learn and use, yet powerful enough for the most demanding embedded applications. Learn More |
Hardware Development Tools:
| Tool Type | Supplier | MPN | Supported Family | Description |
|---|---|---|---|---|
| Emulator | Spectrum Digital | XDS510 USB Plus JTAG EmulatorXDS510 USB Plus JTAG Emulator | C6000 DSP+ARM Processor | XDS510 USB Plus JTAG Emulator |
| Emulator / Debugger / Programmer | ARM | ULINK2ULINK2 | ARM Cortex-M / Cortex-R4 / ARM7 / ARM9 | ULINK2 Debug Adapter |
| Emulator / Debugger / Programmer | ARM | ULINKProULINKPro | ARM Cortex-M / Cortex-R4 / ARM7 / ARM9 | ULINKpro Debug and Trace Unit |
| Emulator | Segger | J-LinkJ-Link | ARM Cortex-M / Cortex-R4 / ARM7 / ARM9 | JTAG/SWD Emulator with USB interface |
| Programmer | Segger | Flasher ARMFlasher ARM | ARM Cortex-M / Cortex-R4 / ARM7 / ARM9 | Flash Programmer for ARM and Cortex cores |
Technical Documents
Learning Center
Design Elements
| Type | Description |
|---|---|
| Simulation Model | TI: OMAP-L138 ZCE BSDL Model |
| Simulation Model | TI: OMAP-L138 ZCE IBIS Model |
Video

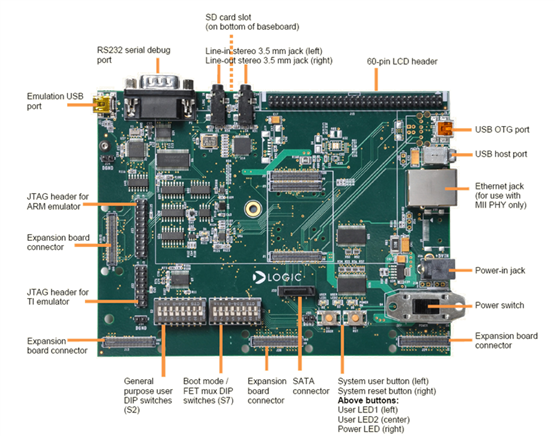

Kit Features
- Texas Instruments OMAP-L138OMAP-L138 SOM-M1
- SOM included to evaluate the OMAP-L138OMAP-L138 processor (with 128 MB Mobile DDR)
- 4.3” LCD Display
- Integrated LCD, touch, and backlight connector for optional Zoom Display Kits
- Audio
- Stereo in/out connectors
- TLV320AIC3106TLV320AIC3106 audio codec
- Network Support
- One RJ45 Ethernet connector SATA
- Serial ATA connector
- PC Card Expansion
- MMC/SD card
- USB
- USB SD card reader
- Serial cable (null-modem)
- One USB 2.0 high-speed On-the-Go interface
- One USB 1.1 full-speed host
- Serial Ports
- 115.2kbps RS-232RS-232 debug serial port
- Debug
- Connectors for JTAG interface
- XDS100 emmulation circuit
- Software
- U-Boot (bootloader/monitor)
- Open source Linux DVSDK and demos
- WinCE SDK
- Code Composer Studio (CCS) v4
- DSP/BIOS v5
- Board Support Library (BSL) sample programs
Kit Contents
- OMAP-L138OMAP-L138 SOM-M1
- 4.3” LCD Display Kit
- Software
- Cables & Accessories
- USB SD card reader
- Serial cable (null-modem)
- USB A to mini-B cable
- 5 volt power supply with power adapters (Europe, Japan, UK, and US)
