ARM: The Keil MDK-ARM (Microcontroller Development Kit)

Overview

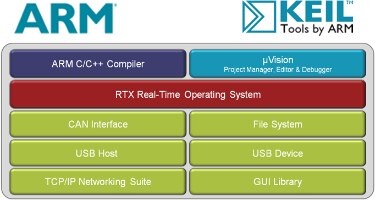

The MDK-ARM (Microcontroller Development Kit) is the complete software development environment for ARM7, ARM9, Cortex-M, and Cortex-R4 processor-based devices. MDK is specifically designed for microcontroller applications and combines the ARM C/C++ Compiler with the Keil RTX real-time operating system and middleware libraries. All tools are integrated into μVision which includes project management, editor and debugger in a single easy-to-use environment. The fully integrated ARM C/C++ Compiler offers significant code-size and performance benefits to the embedded developer, however, MDK can also be used with the GNU GCC Compiler.

The Keil RTX is a deterministic real-time operating system with small memory footprint. MDK-Professional includes a flexible File System and Middleware for TCP, USB, and CAN peripherals. The TCP Networking Suite offers multiple internet protocols and provides various applications such as HTTP, Telnet, and FTP server. USB Device and USB Host stacks are provided with standard driver classes. Numerous application examples help you to get quickly started with application development. MDK works with several debug adapters. ULINKpro enables on-the-fly analysis of running applications and records every executed Cortex-M instruction. It delivers time profiling and complete code coverage for applications optimization and certification.

MDK-Cortex-M: Discover the same functionality found in the MDK-ARM Standard Edition – yet supporting only Cortex-M devices. It’s a complete software development environment for Cortex-M, processor-based devices, specifically designed for microcontroller applications. It’s also easy to learn and use, yet powerful enough for the most demanding embedded applications.

Key Features

• Complete support for Cortex-M, Cortex-R4, ARM7, and ARM9 devices
• Industry-leading ARM C/C++ Compiler generates the smallest and fastest code
• Powerful μVision4 IDE, debugger and simulation environment
• Advanced analysis tools enable developers to quickly identify bottlenecks and defects within their code
• RTX fully-featured RTOS including source code
• Comprehensive middleware libraries allow easy implementation of complex networking and communication systems, and protocols
• Support for a wide range of debug adapters, including the ULINKpro which supports on-the-fly application analysis and unique streaming trace
• Complete Code Coverage identifies every instruction that has been executed, ensuring thorough testing of your application
• Numerous project examples and templates are included to help speed-up code development
• CMSIS Cortex Microcontoller Software Interface Standard compliant

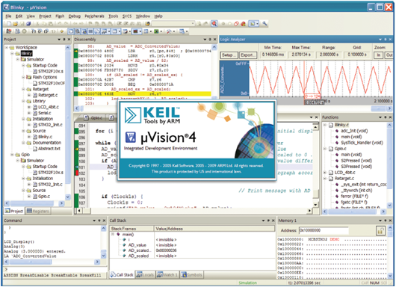

μVision IDE

μVision IDE combines project management and source code editing capabilities in a single development environment:

• Integrated Device Database provides out-of-box support for vast array of ARM-Powered microcontrollers.
• Editor provides an optimized workflow with intuitive toolbars.
• Source Browser provides access to all application symbols.
• Configuration Wizard allows you to view, modify and document bit-level settings quickly and easily.

μVision Debugger

μVision Debugger provides a single environment to test, verify, and optimize your application and includes:

• System Viewer windows display detailed information of peripheral registers. Content values are instantly updated by the target hardware as changes occur.
• A configurable Logic Analyzer gives a graphical display of signals and variables.
• Code Coverage statistics verify applications that require certification testing and validation.
• Performance Analyzer displays the execution time recorded for functions in your application.
• Execution Profiler records execution statistics for each CPU instruction, including the execution count and execution time of instruction.
• The Call Stack window displays current call nesting with argument and local variables.

Core Simulation

The µVision Simulator allows you to debug programs using only your PC and device simulation drivers provided by Keil and various third-party developers. A good simulation environment, like µVision, does much more than simply simulate the instruction set of a microcontroller — it simulates your entire target system including interrupts, startup code, on-chip peripherals, external signals, and I/O.

• Instruction Simulation: Instruction Simulation simulates the exact effects and timing of each MCU instruction.
• Interrupt Simulation: Interrupt Simulation simulates the cause and effect of a system or peripheral interrupt.
• Peripheral Simulation: Peripheral Simulation simulates the effects of on-chip peripherals including special function regisers.
• Debugger Functions: Debugger Functions allow you to expand the command scope of the debugger and create and respond to stimuli.
• Toolbox Buttons: Toolbox Buttons are a convenient way for you to connect debugger functions buttons on the user-interface.
• AGSI Drivers: AGSI drivers interface the µVision Debugger to third-party simulation DLLs.

RTOS and Middleware

MDK-ARM includes a full featured RTOS and tightly coupled middleware libraries which enable developers to focus on application development, save time, and produce more reliable, expandable systems.

• RTX Real-Time Operating System - deterministic, small footprint real-time operating system including source code.
• TCP/IP Networking Suite - full support for transmission protocols and application level services such as HTTP, Telnet, SMTP, SNMP, and FTP.
• USB Host - embedded USB stack supporting MSC (Mass Storage Class) and HID (Human Interface Device) classes.
• USB Device - support for standard device driver classes available with all Windows PCs (MSD, HID, ADC, and CDC).
• File System - FAT12/16/32 file system supporting RAM, ROM, NAND/NOR Flash, and SD/SDHC/MMC cards.
• CAN Interface - provides a standard programming API for supported CAN enabled microcontrollers.

Back to Top

Licensing & System Req.

MDK-ARM is available in four editions as below and all editions provide a complete C/C++ development environment and MDK-Professional includes extensive middleware libraries:

• MDK-ARM Lite
• MDK-Cortex-M (Only for Cortex-M)MDK-Cortex-M (Only for Cortex-M)
• MDK-ARM Standard (Node Lock)MDK-ARM Standard (Node Lock)
• MDK-ARM Standard (Floating)MDK-ARM Standard (Floating)
• MDK-ARM Professional Node LockMDK-ARM Professional Node Lock

Minimum System Requirements:

• 2 GHz host processor (dual-core recommended)
• 1 GB of RAM (1 GB recommended)
• 1.4 GB of hard disk space

Suported Operating Systems:

• MDK-ARM supports the 32-bit and 64-bit versions of the following x86 host platforms:
• Windows XP Professional service pack 2
• Windows Vista and Windows 7 Professional and Enterprise Edition
• Support for Windows Vista service pack 2 is deprecated

Back to Top

The ARM Compiler toolchain, previously known as ARM RealView Compilation tools include:

• The ARM C/C++ Compiler (armcc)
• MicroLib
• The ARM Macro Assembler (armasm)
• The ARM Linker (armLink)
• ARM Utilities (Librarian and FromELF)

These development tools for the ARM family of microcontrollers allow you to write ARM applications in C or C++ that, once compiled, have the efficiency and speed of assembly language. The ARM Compiler toolchain translates C/C++ source files into relocatable object modules which contain full symbolic information for debugging with the µVision Debugger or an in-circuit emulator. In addition to the object file, the compiler generates a listing file which may optionally include symbol table and cross-reference information.

Back to Top

Debuggers and Programmers

The ULINK Debug Adapters connect your PC’s USB port to your target system (via JTAG or SWD), allowing you to debug and analyze embedded programs running on target hardware.

All ULINK adapters enable you to:

• Download programs to your target hardware.
• Examine memory and registers.
• Single-step through programs and insert multiple breakpoints.
• Run programs in real-time.
• Program Flash Memory.
• Connect using JTAG or Serial Wire modes.
• On-the-fly debug of ARM Cortex-M series processor-based devices.
• Examine Trace information from ARM Cortex-M3 and Cortex-M4 processor-based devices.
