NXP: LPC1830 Based LPC1830-Xplorer Board from NGX (OM13028)

Buy NowBuy Now

Kit Overview

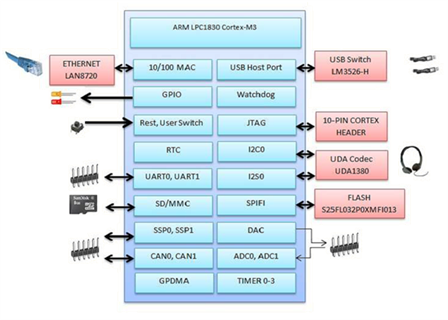

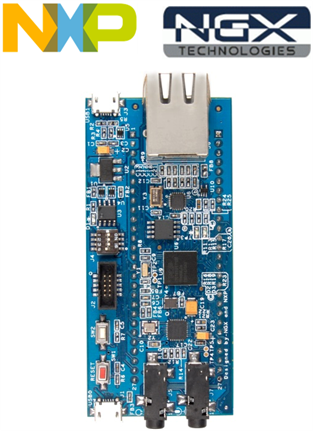

LPC1830-Xplorer (OM13028OM13028) is a breakout board for LPC1830LPC1830 Cortex-M3 based microcontroller. The LPC1830LPC1830 microcontroller has flash and flashless parts. For flashless microcontroller has 200KB SRAM, two 32KB SRAM blocks with separate bus. 64KB ROM containing boot code and on-chip software drivers. 32-bit OTP. For flash microcontroller 1MB dual bank flash, 136KB SRAM, Ethernet MAC, one USB 2.0 Device/Host/OTG interface with DMA support, one USB2.0 Host/Device interaface with DMA, on-chip full-speed PHY and ULPI interface to external high-speed PHY, 4 UARTS with DMA support, 2 C_CAN 2.0B, 2 SSPs, 2 I2C, 2 I2S, LCD controller, 8 GPDMA, up to 164 GPIO, 1 10-bit DAC, 2 10-bit ADCs, and RTC.

LPC1830-Xplorer has been developed in partnership with NGX Technologies. It is a compact and versatile evaluation platform for the NXP's Cortex-M3 based MCUs. NGX's evaluation platforms are generally not tied up to any particular debugger or compiler/IDE. However it is not practical to test and ensure that the solution would work out of box with all the available debuggers and compilers/IDE. As long as the compiler supports the particular MCU and the debugger supports the standard debug interfaces like the SWD/JTAG you can use this platform with any tool. The board is supported by extensive sample examples allowing you to focus on the application development.

Key Applications: Industrial, RFID readers, Consumer, e-Metering, White goods,etc.

More Development Kits and Tools
	Other NXP Development Kits		NXP Overview
	Development Platforms & Kits		element14 Knode

Development Tools

Software Development Tools:

Tool Type	Supplier	MPN	Supported Family	Description
IDE	ARM	Keil MDK-ARM	ARM Cortex-M / Cortex-R4 / ARM7 / ARM9	The MDK-ARM is a complete software development environment for Cortex-M, Cortex-R4, ARM7 and ARM9 processor-based devices. MDK-ARM is specifically designed for microcontroller applications, it is easy to learn and use, yet powerful enough for the most demanding embedded applications. Learn More

Hardware Development Tools:

Tool Type	Supplier	MPN	Supported Family	Description
Emulator / Debugger / Programmer	ARM	ULINK2ULINK2	ARM Cortex-M / ARM7 / ARM9	ULINK2 Debug Adapter
Emulator / Debugger / Programmer	ARM	ULINKProULINKPro	ARM Cortex-M / ARM7 / ARM9	ULINKpro Debug and Trace Unit
Emulator	Segger	J-LinkJ-Link	ARM Cortex-M / Cortex-R4 / ARM7 / ARM9	JTAG/SWD Emulator with USB interface
Programmer	Segger	Flasher ARMFlasher ARM	ARM Cortex-M / Cortex-R4 / ARM7 / ARM9	Flash Programmer for ARM and Cortex cores

Technical Documents

Learning Center

Type	Description
User Guide	NXP: LPC1830-Xplorer Quick Start Guide
User Manual	NXP: LPC18xx ARM Cortex-M3 microcontroller
User Manual	NXP: LPC1830-Xplorer User Manual for KEIL MDK ARM with ULINK2/ME
User Manual	NXP: LPC1830-Xplorer User Manual for LPC-Xpresso with NXP LPC-Link
Product Brief	NXP: Cortex-M microcontroller brochure
Datasheet	NXP: LPC18xx Datasheet
Revision Note	NXP: Errata sheet 1 - LPC1850, LPC1830, LPC1820, LPC1810
Revision Note	NXP: Errata sheet 2 - LPC1850, LPC1830, LPC1820, LPC1810
