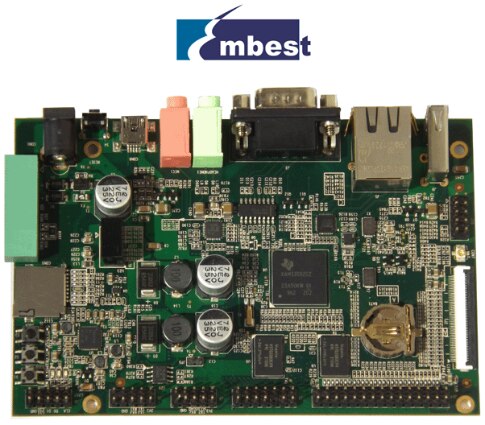

Embest: TI AM3359 ARM Cortex-A8 Based DevKit8600 Evaluation Kit

Overview   Embest introduces its latest DevKit8600DevKit8600 based on Texas Instruments’ Sitara AM3359 ARM Cortex-A8 processor, is a complete development platform and supports running high-level operating systems such as Linux, WinCE and Android. This kit is a reliable and solid reference design and embedded product for application development such as Gaming Peripherals, Home and Industrial Automation, Consumer Medical Appliances, Printers, Smart Toll Systems, Connected Vending Machines, Weighing Scales, Educational Consoles and Advanced Toys.   The Texas Instruments AM335x microprocessor contains ARM Cortex-A8 based Microprocessor unit (MPU), a POWERVR SGX Graphics Accelerator subsystem for 3D graphics acceleration to support display and gaming effects and the Programmable Real-Time Unit and Industrial Communication Subsystem (PRU-ICSS) is separate from the ARM core, allowing independent operation and clocking for greater efficiency and flexibility. The PRU-ICSS enables additional peripheral interfaces and real-time protocols such as EtherCAT, PROFINET, EtherNet/IP, PROFIBUS, Ethernet Powerlink, Sercos, and others.   The DevKit8600DevKit8600 Evaluation Board takes the full features of the 720MHz AM3359 processor and exposed the rich hardware peripherals through connectors or headers including serial ports, USB Host, OTG, Ethernet, CAN, RS485, LCD/TSP, TF, WiFi//Bluetooth, Audio, ADC, SPI, I2C and JTAG. It also offers 512MBytes of DDR3 SDRAM and 512Mbytes of NAND Flash on board memory. The Board is able to support Linux 3.1.0, Android 2.3 and WinCE7 OS. The software package includes the BSP and drivers of which many are in source code. The DevKit8600DevKit8600 Evaluation Kit includes the DevKit8600 evaluation board and all necessary accessories to help the users to start their development. It is preloaded with Linux OS in NAND flash and WinCE OS in TF card. User can output the display using 4.3" or 7” TFT Touch Screen LCD display. Embest has provided all the necessary documentation like user manual, schematics, datasheet and BSP to help customers better understand and use the kit. Besides, it is also provided with Android 2.3 demo.   Ordering Information: MPN Description DevKit8600DevKit8600 DevKit8600 Evaluation Board (Without LCD) DevKit8600 with 4.3" LCDDevKit8600 with 4.3" LCD DevKit8600 Evaluation Kit with 4.3 inch LCD DevKit8600 with 7" LCDDevKit8600 with 7" LCD DevKit8600 Evaluation Kit with 7 inch LCD Key Applications: Connected Vending Machines, Home/Building Automation, Consumer Electronics.

More Development Kits and Tools Embest Development Kits More ARM Development Kits Development Platforms & Kits element14 Knode

Development Tools

Software Development Tools:

Tool Type	Supplier	MPN	Supported Family	Description
IDE	Texas Instruments	Code Composer Studio (CCStudio)	TI ARM MCUs	CCStudio is an integrated development environment (IDE) for TI embedded   processor families. CCStudio comprises a suite of tools used to develop and debug embedded applications. It includes   compilers for each of TI's device families, a source code editor, project build environment, debugger, profiler, simulators, a real-time operating system and many other features. Learn More
IDE	ARM	DS-5	ARM Cortex-A  / Cortex-R / ARM9 / ARM11	The ARM Development Studio 5 (DS-5) tool enable developers to get the best from their ARM technology-based systems. Whether implementing an ARM processor-based SoC or writing software for an Application Specific Standard Product (ASSP), ARM tools enable you to deliver the best solution with the highest performance and lowest power consumption. Learn More

Hardware Development Tools:

Tool Type	Supplier	MPN	Supported Family	Description
Debuggers, Emulators & JTAG Tools	Embest	XDS100v2XDS100v2	ARM 9 / ARM Cortex R4 / A8	USB JTAG Emulator
Debuggers, Emulators & JTAG Tools	ARM	DSTRM-KT-0181ADSTRM-KT-0181A	ARM7 / ARM9 / ARM11 / Cortex-A / Cortex-R / Cortex-M	DSTREAM Debug and Trace Unit
Debuggers, Emulators & JTAG Tools	Segger	J-LinkJ-Link	ARM Cortex-M  / Cortex-R4 / Cortex-A / ARM7 / ARM9	JTAG/SWD Emulator with USB interface
Programmer	Segger	Flasher ARMFlasher ARM	ARM Cortex-M  / Cortex-R4 / Cortex-A / ARM7 / ARM9	Flash Programmer for ARM and Cortex cores

Back to top

Technical Documents

Learning Center

Design Elements

Back to top

Video

You don't have permission to edit metadata of this video.

Edit media

Dimensions x Small Medium Large Custom

Subject (required) Brief Description Tags (separated by comma) Video visibility in search results Visible Hidden

Parent content

Embest: TI AM3359 ARM Cortex-A8 Based DevKit8600 Evaluation Kit Embest: SBC8600B Single Board Computer based on TI AM3359 Sitara ARM Cortex-A8 MPU Texas Instruments: TMDXIDK3359 - AM3359 Industrial Development Kit (IDK)

Poster

Upload Preview

Ok

Cancel

Back to top

Kit Features

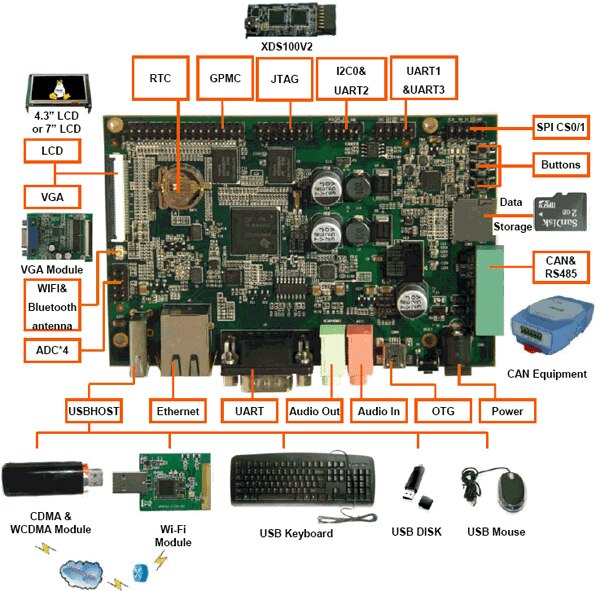

Hardware Features

• Mechanical Parameters
  • Dimensions: 130mm x 80mm
  • Power Supply: +12V
  • Working Temperature: 0~70°C

• Processor
  • TI AM3359 ARM Cortex-A8 microprocessor
  • 720-MHz ARM Cortex-A8 32-bit RISC MPU
  • NEON SIMD Coprocessor
  • 32KB/32KB of L1 Instruction/Data Cache with Single-Error Detection (parity)
  • 256KB of L2 Cache with Error Correcting Code (ECC)
  • SGX530 Graphics Engine
  • Programmable Real-Time Unit Subsystem

• Memory and Storage
  • 512MBytes DDR3 SDRAM
  • 512MBytes NAND Flash
  • TF card slot

• Data Transfer Interfaces
  • 5 line Debug serial port, RS232 voltage (brings out by DB9 connector)
  • 5 line serial port, TTL voltage (brings out by 2.0mm pitch 10-pin dip connector J6)
  • Two 3 line serial ports, TTL voltage (brings out by 2.0mm pitch 10-pin dip connector J5)
  • RS485 serial port (brings out by 8-pin Phoenix Connector)
  • USB2.0 OTG port with Integrated PHY, High-speed (Mini USB type)
  • USB2.0 Host port with Integrated PHY, High-speed (USB-A type)
  • WiFi/Bluetooth Module (only support linux at present)
  • CAN 2.0 interface (8-pin Phoenix Connector)
  • 10/100/1000Mbps Ethernet interface (RJ45 connector)
  • GPMC bus interface (brings out by 2.0mm pitch 30-pin dip connector J14)

• Audio/Video Interfaces
  • Audio input interface (3.5mm audio jack)
  • 2-channel audio output interface (3.5mm audio jack)
  • TFT LCD interface / 4 line Resistive Touch Screen interface (50pin FPC connector)

• Input/Output Interfaces and Other Facilities
  • Battery backed RTC (User needs to prepare battery himself, CR1220 model is ok)
  • Reset button
  • Three User buttons (HOME, MENU, BACK)
  • JTAG connector (2.54mm pitch 14-pin dip connector J7)
  • 4-channel ADC (brings out by 2.0mm 10-pin dip connector J10)
  • 1-channel SPI interface (brings out by 2.0mm 10-pin dip connector J8)
  • 1-channel I2C interfaces (brings out by 2.0mm 10-pin dip connector J6)

Software Features

Back to top

Kit Contents

The Embest DevKit8600DevKit8600 Evaluation Board supplied with below contents:

• DevKit8600 Evaluation board
• 2GB TF card
• Serial cable (DB9-DB9)
• 12V@1.25A Power adapter
• USB cable (Type A Male to Type Mini-B Male)
• USB cable (Type A Female to Type Mini-A Male)
• Crossover Ethernet cable
• WiFi antenna
• Product DVD (including user manual, schematic in PDF format, datasheet, Linux 3.1.0 BSP, Android 2.3 BSP and WinCE 7 BSP)

Back to top

Add-on Modules

* = Provided with Source Code

Back to top
