The CY8CKIT-001CY8CKIT-001 PSoC
The PSoC DVK gives you a practical understanding of PSoC technology. In addition, the kit includes several example projects with step-by-step instructions to enable you to easily get started developing PSoC solutions. This kit includes PSoC 1, PSoC 3, and PSoC 5LP Family Processor Modules.

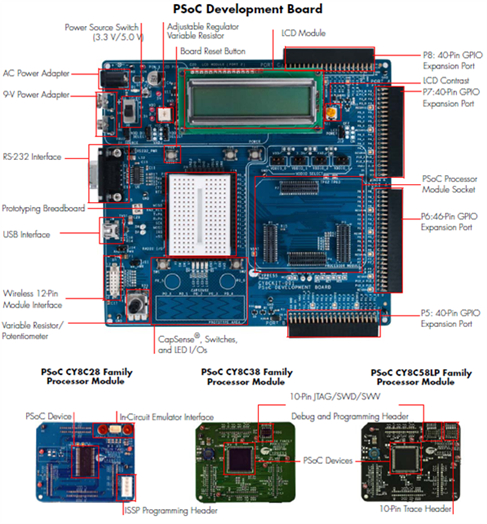

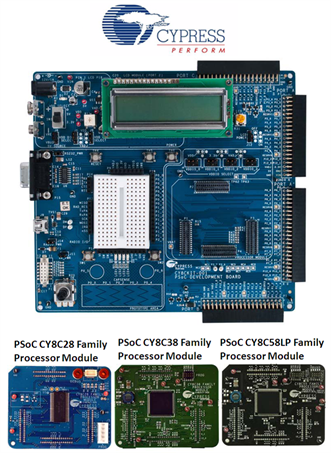

The CY8CKIT-001CY8CKIT-001 PSoC Development Board is designed to aid hardware, firmware, and software developers in building their own systems around Cypressfs PSoC devices. The flexibility to configure the power domains is one of the foremost features of this board. Input power to the board is from one of two sources:
Note: Do not apply more than 15 V as input voltage. Also, do not power the board from test points.
This full-featured board incorporates three onboard linear regulators that power peripherals and PSoC processor modules at voltages between 1.7 V and 5.0 V. These regulators include a fixed 5 V 1-A linear regulator, a fixed 3.3 V 300-mA linear regulator, and a 1.5 V to 3.3 V for 3.3-V supply and 1.5 V to 5 V for 5-V supply adjustable regulator. The board also provides the ability to separate the PSoC core VDD rail into two separate rails, analog and digital. In addition, the board is able to separate the I/O VDD rails, giving the flexibility to power the I/O ports at different voltages.
The board is equipped with a 2x16 alphanumeric LCD module capable of 1.8 V to 5.0 V I/O. In addition, there is a mini-B full-speed USB interface and a female DB9 serial communications interface. Also included is a 12-pin wireless radio module interface, which can be used to develop CyFi. low-power RF or other embedded RF solutions with this kit. The board also has a prototyping area containing a small breadboard, complete with I/O port sockets nearby, multipurpose LEDs, mechanical push buttons, and a multipurpose variable resistor. In addition, three capacitive sensing elements (two buttons and a five segment slider) are included on the board to allow the evaluation of CapSenseR applications.
The board has four general-purpose I/O (GPIO) expansion slots, allowing the I/O to expand to external boards. The board is protected against reverse voltage and overvoltage on the 5-V and 3.3-V lines on the expansion slots.
The board is designed with modularity in mind and, as a result, supports removable processor modules. This allows you to plug different PSoC processor modules into the board based upon the desired features of both 8-bit and 32-bit PSoC devices.
Key Applications: CapSenseR applications, low-power RF or other embedded RF solutions, consumer, industrial, and medical applications. | |||||||||||
| ||||||||||||
Development Tools
Software Development Tools:
| Tool Type | Supplier | MPN | Supported Family | Description |
|---|---|---|---|---|
| IDE | Cypress | PSoC Designer | PSoC 1 | PSoC Designer IDE accelerates system bring-up and time-to-market. Develop the applications using a library of pre-characterized analog and digital peripherals in a drag-and-drop design environment. Then, customize the design leveraging the dynamically generated API libraries of code. Finally, debug and test the designs with the integrated debug environment including in-circuit emulation and standard software debug features. PSoC Designer supports the entire library of PSoC 1 devices. |
| IDE | Cypress | PSoC Createor | PSoC 3 / PSoC 4 / PSoC 5 / PSoC 5LP | PSoC |
| Programmer Software | Cypress | PSoC Programmer | All PSoC | The PSoC Programmer software tool supports all Cypress PSoC programming hardware and PSoC devices. PSoC Programmer is a simple GUI that connects to programming hardware to program and configure PSoC devices. From the GUI users will be able to select the target device, configure programming selections and execute a number of programming actions such as Program, Read, Verify and Erase. PSoC Programmer is a required installation for both PSoC Creator and PSoC Designer. |
| IDE | ARM | Keil C51 | All 8051 Core | The Keil C51 development tools for the 8051 Microcontroller Architecture support every level of software developer from the professional applications engineer to the student just learning about embedded software development. Learn More |
| IDE | ARM | Keil MDK-ARM | ARM Cortex -M / Cortex-R4 / ARM7 / ARM9 | The MDK-ARM is a complete software development environment for Cortex |
| RTOS | Segger | embOS | ARM Cortex-M | embOS is a priority-controlled real time operating system, designed to be used as foundation for the development of embedded real-time applications. It is a zero interrupt latency, high-performance RTOS that has been optimized for minimum memory consumption in both RAM and ROM, as well as high speed and versatility. Learn More |
Hardware Development Tools:
| Tool Type | Supplier | MPN | Supported Family | Description |
|---|---|---|---|---|
| Emulator / Debugger | Cypress | CY3215-DKCY3215-DK | PSoC 1 | PSoC 1 In-Circuit Emulation Development Kit |
| Emulator / Debugger / Programmer | Cypress | CY8CKIT-002CY8CKIT-002 | PSoC 1 / PSoC 3 / PSoC 5 | MiniProg3 Program and Debug Kit is an all-in-one programmer for PSoC 1, PSoC 3 and PSoC 5 architectures and debug tool for PSoC 3 and PSoC 5 architectures |
| Programmer | Cypress | CY3217CY3217 | PSoC 1 (CY25/26xxx devices) | Miniprog1 programmer |
| Emulator / Debugger / Programmer | ARM | ULINK2ULINK2 | All 8051 Core | ULINK2 Debug Adapter |
| Emulator / Debugger / Programmer | ARM | ULINKProULINKPro | ARM Cortex-M / ARM7 / ARM9 | ULINKpro Debug and Trace Unit |
| Emulator | Segger | J-LinkJ-Link | ARM Cortex-M / Cortex-R4 / Cortex-A / ARM7 / ARM9 | JTAG/SWD Emulator with USB interface |
| Programmer | Segger | Flasher ARMFlasher ARM | ARM Cortex-M / Cortex-R4 / Cortex-A / ARM7 / ARM9 | Flash Programmer for ARM and Cortex cores |
Technical Documents
Learning Center
Design Elements
Video
| Video 1 | Video 2 |
|---|---|
Kit Features
Key Features for CY8CKIT-001C PSoC Development Kit:
- Three onboard linear regulators that power peripherals and PSoC processor modules at voltages between 1.7 V and 5.0 V
- The ability to separate the PSoC core VDD rail into two separate rails, analog and digital.
- The board is able to separate the I/O VDD rails, giving the flexibility to power the I/O ports at different voltages.
- The board is equipped with a 2x16 alphanumeric LCD module capable of 1.8 V to 5.0 V I/O.
- A mini-B full-speed USB interface and a female DB9 serial communications interface.
- 12-pin wireless radio module interface
- The board also has a prototyping area
small breadboard, complete with I/O port sockets nearby, multipurpose LEDs, mechanical push buttons, and a multipurpose variable resistor.
- Three capacitive sensing elements (two buttons and a five segment slider)
- The board has four general-purpose I/O (GPIO) expansion slots
- Protected against reverse voltage and overvoltage on the 5-V and 3.3-V lines on the expansion slots.
- Supports removable processor modules.
- Allows you to plug different PSoC processor modules into the board based upon the desired features of both 8-bit and 32-bit PSoC devices.
Key Features for PSoC 5 - CY8C55 Family:
32-bit ARM Cortex-M3 CPU core
Low voltage, ultra low power
Versatile I/O system
Digital peripherals
Analog peripherals (2.7 V ≤ VDDA ≤ 5.5 V)
Programming, debug, and trace
Precision, programmable clocking
Key Features for PSoC 3 - CY8C38 Family:
Single cycle 8051 CPU
Low voltage, ultra low-power
Versatile I/O system
Digital peripherals
Analog peripherals (1.71 V ≤ VDDA ≤ 5.5 V)
Programming, debug, and trace
Precision, programmable clocking
Kit Contents
The Cypress CY8CKIT-001CY8CKIT-001 PSoC Development Kit is supplied with below contents:
- PSoC Development Board
- PSoC 1 CY8C28 Family Processor Module
- PSoC 3 CY8C38 Family Processor Module
- PSoC 5 CY8C58LP Family Processor Module
- MiniProg3 Program/Debug Device
- Program/Debug Ribbon Cable
- USB Cable
- 12V AC Power Adapter
- Quick Start Guide
- Kit CDs, which includes: PSoC Creator, PSoC Designer, PSoC Programmer, Projects, and Documentation.
