The CY8CKIT-031CY8CKIT-031 PSoC CapSense Expansion Board Kit enables you to develop CapSense solutions with PSoC 3 and PSoC 5 devices.This kit is designed for use with the CY8CKIT-001CY8CKIT-001 PSoC Development Kit (sold separately), CY8CKIT-030CY8CKIT-030 PSoC 3 Development Kit (sold separately) and CY8CKIT-050CY8CKIT-050 PSoC 5 Development Kit (sold separately). This kit enables you to develop CapSense solutions with the CY3280 Universal CapSense Module boards. The CapSense component in PSoC Creator allows you to develop CapSense solutions with ease. The code examples provided along with this kit give sample solutions.

The CY3280-BMMCY3280-BMM Matrix Button Module consists of eight LEDs as well as eight CapSense sensors organized in a 4x4 matrix format to form 16 physical buttons. The CY3280-SLMCY3280-SLM Linear Slider Module consists of five CapSense buttons, one linear slider (with ten sensors) and five LEDs. The above 2 module connects to any CY3280 Universal CapSense Controller Board.

The new PSoC 3 and PSoC 5 architectures enable CapSense on all devices and the CapSense signals can be routed to any of the GPIO pins (up to 62). Due to the vast amount of programmable analog and digital resources available in these devices, as well as the higher performance CPUs and larger memory sizes, PSoC 3 and PSoC 5 make great single chip solutions. Typically these applications have a microcontroller doing various functions and a separate CapSense solution. PSoC 3 and PSoC 5 enable integration of these two devices into a single chip solution. What's more, PSoC 3 and PSoC 5 CapSense leverages the revolutionary SmartSense auto tuning solution.

Cypress's SmartSense solution is the industry's first and only true self-tuning system. This patent-pending solution optimizes parameters automatically during the design process, significantly reducing development time, while providing the most robust and quality CapSense solution on the market.

Key Applications: Capsense Technology

More Development Kits and Tools
	More Cypress Development Kits		Cypress Overview
	Knode Development Kits & Platform Room		element14 Knode

Development Tools

Software Development Tools:

Tool Type	Supplier	MPN	Supported Family	Description
IDE	Cypress	PSoC Designer	PSoC 1	PSoC Designer IDE accelerates system bring-up and time-to-market. Develop the applications using a library of pre-characterized analog and digital peripherals in a drag-and-drop design environment. Then, customize the design leveraging the dynamically generated API libraries of code. Finally, debug and test the designs with the integrated debug environment including in-circuit emulation and standard software debug features. PSoC Designer supports the entire library of PSoC 1 devices.
Programmer Software	Cypress	PSoC Programmer	All PSoC	The PSoC Programmer software tool supports all Cypress PSoC programming hardware and PSoC devices. PSoC Programmer is a simple GUI that connects to programming hardware to program and configure PSoC devices. From the GUI users will be able to select the target device, configure programming selections and execute a number of programming actions such as Program, Read, Verify and Erase. PSoC Programmer is a required installation for both PSoC Creator and PSoC Designer.
IDE	Cypress	PSoC Createor	PSoC 3 / PSoC 4 / PSoC 5 / PSoC 5LP	PSoC Creator is a state-of-the-art software development IDE combined with a revolutionary graphical design editor to form a uniquely powerful hardware/software co-design environment. This co-design approach frees embedded designers from hardware re-spins and software hacks. It also enables immediate testing of new ideas, rapid response to hardware changes, and error-free software interaction with on-chip peripherals. Learn More
IDE	ARM	Keil C51	All 8051 Core	The Keil C51 development tools for the 8051 Microcontroller Architecture support every level of software developer from the professional applications engineer to the student just learning about embedded software development. Learn More
IDE	ARM	Keil MDK-ARM	ARM Cortex-M / Cortex-R4 / ARM7 / ARM9	The MDK-ARM is a complete software development environment for Cortex-M, Cortex-R4, ARM7 and ARM9 processor-based devices. MDK-ARM is specifically designed for microcontroller applications, it is easy to learn and use, yet powerful enough for the most demanding embedded applications.Learn More
RTOS	Segger	embOS	ARM Cortex-M	embOS is a priority-controlled real time operating system, designed to be used as foundation for the development of embedded real-time applications. It is a zero interrupt latency, high-performance RTOS that has been optimized for minimum memory consumption in both RAM and ROM, as well as high speed and versatility. Learn More

Hardware Development Tools:

Tool Type	Supplier	MPN	Supported Family	Description
Emulator / Debugger	Cypress	CY3215-DKCY3215-DK	PSoC 1	PSoC 1 In-Circuit Emulation Development Kit
Emulator / Debugger / Programmer	Cypress	CY8CKIT-002CY8CKIT-002	PSoC 1 / PSoC 3 / PSoC 5	MiniProg3 Program and Debug Kit is an all-in-one programmer for PSoC 1, PSoC 3 and PSoC 5 architectures and debug tool for PSoC 3 and PSoC 5 architectures
Programmer	Cypress	CY3217CY3217	PSoC 1 (CY25/26xxx devices)	Miniprog1 programmer
Emulator / Debugger / Programmer	ARM	ULINK2ULINK2	All 8051 Core/ARM Cortex-M / ARM7 / ARM9	ULINK2 Debug Adapter
Emulator / Debugger / Programmer	ARM	ULINKProULINKPro	ARM Cortex-M / ARM7 / ARM9	ULINKpro Debug and Trace Unit
Emulator	Segger	J-LinkJ-Link	ARM Cortex-M / Cortex-R4 / Cortex-A / ARM7 / ARM9	JTAG/SWD Emulator with USB interface
Programmer	Segger	Flasher ARMFlasher ARM	ARM Cortex-M / Cortex-R4 / Cortex-A / ARM7 / ARM9	Flash Programmer for ARM and Cortex cores

Technical Documents

Learning Center

Type	Description
User Guide	Cypress: User Guide for CY8CKIT-031 PSoC CapSense Expansion Board Kit
User Guide	Cypress: Quick Start Guide for CY8CKIT-031 PSoC CapSense Expansion Board Kit
Product Brief	Cypress: Product brief for CY8CKIT-031 PSoC CapSense Expansion Board Kit
Product Brief	Cypress: Cypress PSoC Programmable System-on-Chip Brochure

Design Elements

Type	Description
BOM	Cypress: BOM for CY8CKIT-031 PSoC CapSense Expansion Board Kit
Layout	Cypress: Layout for CY8CKIT-031 PSoC CapSense Expansion Board Kit
Schematics	Cypress: Schematic for CY8CKIT-031 PSoC CapSense Expansion Board Kit
Application Library	Cypress: Software code on PSoC CapSense Expansion Board Kit CY8CKIT-031

Video

Video1	Video2
This video is unavailable. You don't have permission to edit metadata of this video.	This video is unavailable. You don't have permission to edit metadata of this video.

Video1

Video2

This video is unavailable.

Kit Features

Features of CY8CKIT-031CY8CKIT-031:

Kit enables to develop CapSense solutions with PSoC 3 and PSoC 5 devices.
The new PSoC 3 and PSoC 5 architectures enable CapSense on all devices and the CapSense signals can be routed to any of the GPIO pins (up to 62)
Cypress's SmartSense solution is the industry's first and only true self-tuning system.

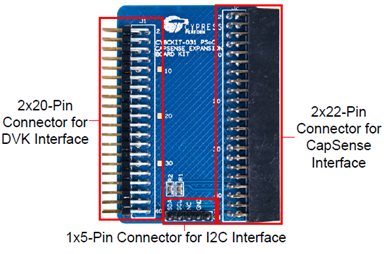

The PSoC CapSense Expansion Board Kit interfaces either of the CY3280 Universal CapSense Module boards with the CY8CKIT-001CY8CKIT-001 PSoC Development Kit or CY8CKIT-030CY8CKIT-030 PSoC 3 Development Kit.
The PSoC CapSense Expansion Board is based on the PSoC 3 family of devices
It combines precision analog and digital logic with a high-performance 8051 single cycle per instruction pipelined processor achieving ten times the performance of previous 8051 processors.
The CapSense component in PSoC Creator allows you to develop CapSense solutions with ease.
PSoC Creator software is a state-of-the-art, easy-to-use integrated development environment (IDE) that introduces a hardware and software design environment based on classic schematic entry and revolutionary embedded design methodology.With PSoC Creator, you can:
- Automatically place and route select components and integrate simple glue logic normally located in discrete muxes.
- Trade off hardware and software design considerations allowing you to focus on what matters and getting to market faster.
PSoC Creator also enables you to tap into an entire tools ecosystem with integrated compiler tool chains, RTOS solutions, and production programmers to support both PSoC 3 and PSoC 5.
CY3280-BMMCY3280-BMM Universal CapSense Matrix Button Module
CY3280-SLMCY3280-SLM Universal CapSense Linear Slider Module

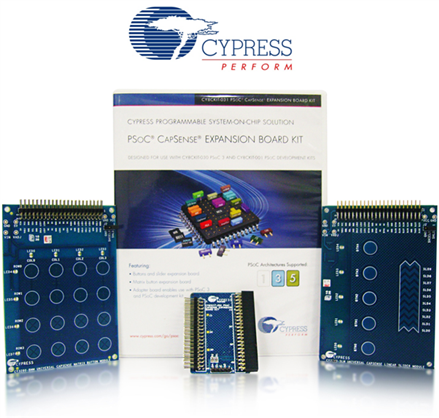

Kit Contents

The Cypress CY8CKIT-031CY8CKIT-031 Expansion Board supplied with below contents:

CY8CKIT-031CY8CKIT-031 PSoC CapSense Expansion Board
CY3280-BMMCY3280-BMM Universal CapSense Matrix Button Module Kit
CY3280-SLMCY3280-SLM Universal CapSense Linear Slider Module Kit
Two 1.5 mm overlay and one 3 mm overlay
Quick Start Guide
Resource CD
