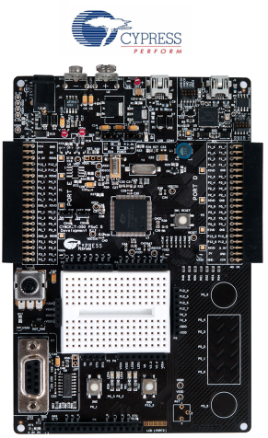

The CY8CKIT-050CY8CKIT-050 PSoC
This kit is designed for analog performance. The kit features a very low noise floor. Care has been taken to separate the analog and the digital domain. Separate regulators are also available and separate ground planes are provided. We have achieved ENOB very close to 20 bits with this kit. Provisions are provided to add an external precision voltage reference, if needed.
Besides the analog, this kit is also meant to demonstrate the low power operation of PSoC 5LP. The PSoC 5LP chip is soldered to the board, this significantly reduces the leakage currents. Special terminals are provided to enable the boost converter operation without requiring many modifications. Jumpers have been provided to remove power to RS232 converter, potentiometer, to have a single regulator for analog and digital domain, and evaluate the low power operation of PSoC 5LP.
It features an onboard programmer (Cypress USB chip based), which allows you to program the PSoC 5LP without connecting to Miniprog3, however, provisions have been provided to program using Miniprog3 as well.
Key Applications: Consumer, Industrial, and Medical applications. | |||||||||||
| ||||||||||||
Development Tools
Software Development Tools:
| Tool Type | Supplier | MPN | Supported Family | Description |
|---|---|---|---|---|
| IDE | Cypress | PSoC Createor | PSoC 3 / PSoC 4 / PSoC 5 / PSoC 5LP | PSoC |
| Programmer Software | Cypress | PSoC Programmer | All PSoC | The PSoC Programmer software tool supports all Cypress PSoC programming hardware and PSoC devices. PSoC Programmer is a simple GUI that connects to programming hardware to program and configure PSoC devices. From the GUI users will be able to select the target device, configure programming selections and execute a number of programming actions such as Program, Read, Verify and Erase. PSoC Programmer is a required installation for both PSoC Creator and PSoC Designer. |
| IDE | ARM | Keil MDK-ARM | ARM Cortex -M / Cortex-R4 / ARM7 / ARM9 | The MDK-ARM is a complete software development environment for Cortex-M, Cortex-R4, ARM7 and ARM9 processor-based devices. MDK-ARM is specifically designed for microcontroller applications, it is easy to learn and use, yet powerful enough for the most demanding embedded applications.Learn More |
| RTOS | Segger | embOS | ARM Cortex-M | embOS is a priority-controlled real time operating system, designed to be used as foundation for the development of embedded real-time applications. It is a zero interrupt latency, high-performance RTOS that has been optimized for minimum memory consumption in both RAM and ROM, as well as high speed and versatility. Learn More |
Hardware Development Tools:
| Tool Type | Supplier | MPN | Supported Family | Description |
|---|---|---|---|---|
| Emulator / Debugger / Programmer | Cypress | CY8CKIT-002CY8CKIT-002 | PSoC 1 / PSoC 3 / PSoC 5 | MiniProg3 Program and Debug Kit is an all-in-one programmer for PSoC 1, PSoC 3 and PSoC 5 architectures and debug tool for PSoC 3 and PSoC 5 architectures |
| Emulator / Debugger / Programmer | ARM | ULINK2ULINK2 | ARM Cortex-M / ARM7 / ARM9 | ULINK2 Debug Adapter |
| Emulator / Debugger / Programmer | ARM | ULINKProULINKPro | ARM Cortex-M / ARM7 / ARM9 | ULINKpro Debug and Trace Unit |
| Emulator | Segger | J-LinkJ-Link | ARM Cortex-M / Cortex-R4 / Cortex-A / ARM7 / ARM9 | JTAG/SWD Emulator with USB interface |
| Programmer | Segger | Flasher ARMFlasher ARM | ARM Cortex-M / Cortex-R4 / Cortex-A / ARM7 / ARM9 | Flash Programmer for ARM and Cortex cores |
Technical Documents
Learning Center
Design Elements
Video
| Video 1 | Video 2 |
|---|---|
Kit Features

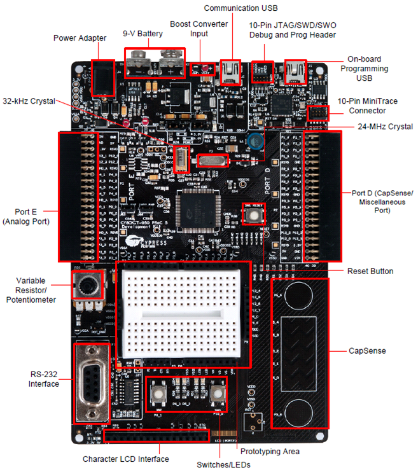

The key features for CY8CKIT-050CY8CKIT-050 PSoC 5LP Development Kit:
- The power supply system on this board is versatile
- Programming Interface
- Using the on-board programming interface
- Using the JTAG/SWD programming interface with a MiniProg3
- USB Communication
- Boost Convertor
- 32-kHz and 24-MHz Crystal
- Protection Circuit
- PSoC 5LP Development Kit Expansion Ports
- RS-232 Interface
- Prototyping Area
- Character LCD
- CapSense Sensors
Key Features for PSoC 5LP:
- 32-bit ARM Cortex-M3 CPU core
- Low voltage, ultra low power
- Versatile I/O system
- Digital peripherals
- Analog peripherals (1.71 V ≤ VDDA ≤ 5.5 V)
- Programming, debug, and trace
- Precision, programmable clocking
- Temperature and packaging
Kit Contents
The Cypress CY8CKIT-050CY8CKIT-050 PSoC Development kit is supplied with below contents:
- PSoC 5LP Development Board
- LCD Character Display
- USB Cable
- Quick Start Guide
- Kit CD, which includes: PSoC Creator, PSoC Programmer, Projects and Documentation
