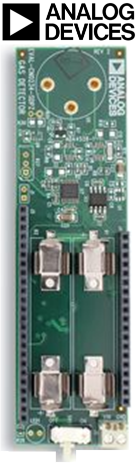

The EVAL-CN0234-SDPZEVAL-CN0234-SDPZ circuit is a single-supply, low power battery operated, portable gas detector using an electrochemical sensor. Electrochemical sensors offer several advantages for instruments that detect or measure the concentration of many toxic gases. Most sensors are gas specific and have usable resolutions under one part per million (ppm) of gas concentration. They operate with very small amounts of current, making them well-suited for portable, battery powered instruments.

The circuit uses the ADA4505-2, dual micro-power amplifier, which has a maximum input bias current of 2 pA at room temperature and consumes only 10 μA per amplifier. In addition, the ADR291ADR291 precision, low noise, micropower reference consumes only 12 μA and establishes the 2.5 V common-mode pseudo-ground reference voltage.

The ADP2503ADP2503 high efficiency, buck-boost regulator allows single-supply operation from two AAA batteries and consumes only 38 μA when operating in power-save mode.

Total power consumption for the circuit (excluding the AD7798AD7798 ADC) is approximately 110 μA under normal conditions (no gas detected) and 460 μA under worst-case conditions (2000 ppm CO detected). The AD7798 consumes approximately 180 μA when operational (G = 1, buffered mode) and only 1 μA in the power-save mode.

This circuit uses the EVAL-CN0234-SDPZEVAL-CN0234-SDPZ circuit evaluation board and the EVAL-SDP-CB1ZEVAL-SDP-CB1Z system demonstration platform (SDP-B) evaluation board. In addition, a small adapter board included with the EVAL-CN0234-SDPZ is required to connect the two circuit boards together. The EVAL-CN0234-SDPZ includes an AD7798 16-bit Σ-Δ ADC to digitize the output voltage of the circuit.

Key Applications: Chemical Analysis, Environmental Monitoring

More Development Kits and Tools
	More Analog Devices Analog Development Kits		Analog Devices MCU based Development Kits
	Development Platforms & Kits		element14 Knode

Development Tools

PC with USB port and Windows XP or Windows Vista (32-bit), or Windows 7 (32-bit)
EVAL-CN0234-SDPZEVAL-CN0234-SDPZ circuit evaluation board and adapter board.
EVAL-SDP-CB1ZEVAL-SDP-CB1Z SDP evaluation board
- Blackfin Processor ADSP-BF527
- USB 2.0 Interface to PC
- JTAG header footprint
- 32MB SDRAM
- 2 x Small Footprint 120 Pin Connectors
- Configurable Peripheral Interfaces - SPI - SPORT - I2C - GPIOs - Parallel - Timers
CN0234 evaluation software
Two AAA batteries
Calibration gas (less than 250 ppm CO recommended)

Technical Documents

Learning Center

Type	Description
User Manual	ADI: User Manual for CN-0234 Single Supply, Micropower Toxic Gas Detector Using an Electrochemical Sensor
User Guide	ADI: User Guide for EVAL-SDP-CB1Z
Datasheet	ADI: Datasheet for ADA4505-1/ADA4505-2/ADA4505-4: 10 μA, Rail-to-Rail I/O, Zero Input Crossover Distortion Amplifiers (Rev D)
Datasheet	ADI: Datasheet for ADR291/ADR292: Low Noise Micropower 2.5 V and 4.096 V Precision Voltage References (Rev F)
Datasheet	ADI: Datasheet for ADP2503/ADP2504: 600 mA/1000 mA, 2.5 MHz Buck-Boost DC-to-DC Converters (Rev B)
Datasheet	ADI: Datasheet for AD7798/AD7799: 3-Channel, Low Noise, Low Power, 16-/24-Bit, Sigma Delta ADC with On-Chip In-Amp (Rev A)

Design Elements

Type	Description
Schematics	ADI: Schematics for EVAL-CN0234-SDPZ Evaluation Board
Layout	ADI: Layout for EVAL-CN0234-SDPZ
BOM	ADI: Bill Of Material (BOM) for EVAL-CN0234-SDPZ Evaluation Board
