| Overview

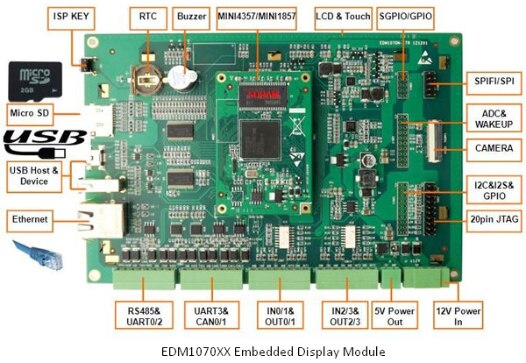

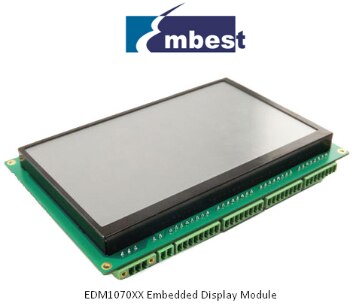

EDM1070xx is an embedded display module designed by Shenzhen Embest Technology and built on LPC4357FET256LPC4357FET256 ,NXP 32-bit ARM Cortex-M4/M0 dual-core MCU (EDM1070AR-01EDM1070AR-01) / LPC1857FET256LPC1857FET256 ,NXP 32-bit ARM Cortex-M3 MCU (EDM1070BR-01EDM1070BR-01). EDM1070xx is provided along with example applications for all the on-board devices and support to real-time operations systems. It has a variety of expansion interfaces such as UART, CAN, SPI, SGPIO, I2C, GPIO and AD/DA to satisfy different application requirements of users.

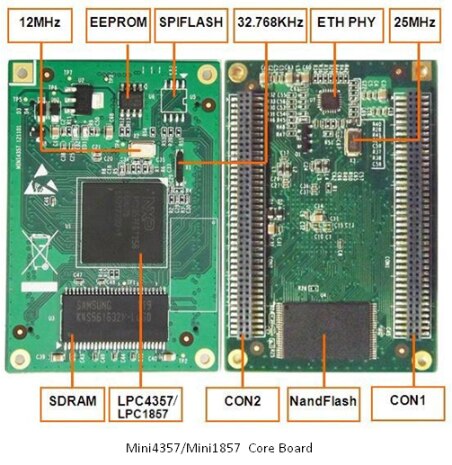

MINI4357MINI4357 is an embedded core module built on LPC4357FET256LPC4357FET256 - a 32bit ARM Cortex-M4/M0 dual-core microcontroller. By using it with an expansion board from Embest (EDM1070xx or EDM1043xx) or other dedicatedly designed boards built according to hardware interfaces of MINI4357, users can implement a quick function trimming so as to realize a shorter time to market.

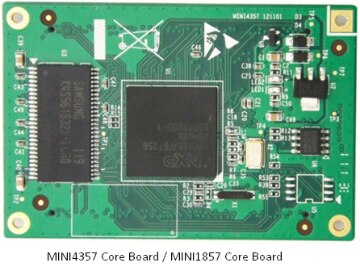

MINI1857MINI1857 is an embedded core module built on LPC1857FET256LPC1857FET256 - a 32bit ARM Cortex-M3 microcontroller. By using it with an expansion board from Embest (EDM1070xx or EDM1043xx) or other dedicatedly designed boards built according to hardware interfaces of MINI1857, users can implement a quick function trimming so as to realize a shorter time to market.
Ordering Information:
Key Applications: instrumentation, intelligent home, medical diagnosis and motor control. | |||||||||||
| ||||||||||||
Development Tools
Software Development Tools:
| Tool Type | Supplier | MPN | Supported Family | Description |
|---|---|---|---|---|
| IDE | ARM | Keil MDK-ARM | ARM Cortex -M / Cortex-R4 / ARM7 / ARM9 | The MDK-ARM is a complete software development environment for Cortex-M, Cortex-R4, ARM7 and ARM9 processor-based devices. MDK-ARM is specifically designed for microcontroller applications, it is easy to learn and use, yet powerful enough for the most demanding embedded applications. Learn More |
| IDE | Embest | CoIDE | ARM Cortex M0 & M3 | CooCox offer a freely available, powerful software development tool for ARM Cortex-M3 & Cortex-M0 based microcontrollers. Coocox Tools organizes and provides the knowledge required by developers. Learn More |
Hardware Development Tools:
| Tool Type | Supplier | MPN | Supported Family | Description |
|---|---|---|---|---|
| Debugger | Embest | ColinkExColinkEx | ARM Cortex-M | ARM Cortex-M MCU JTAG Hardware Debugging Probe which supports CooCox software and Keil Realview MDK |
| Emulator / Debugger / Programmer | ARM | ULINK2ULINK2 | ARM Cortex-M / ARM7 / ARM9 | ULINK2 Debug Adapter |
| Emulator / Debugger / Programmer | ARM | ULINKProULINKPro | ARM Cortex-M / ARM7 / ARM9 | ULINKpro Debug and Trace Unit |
| Emulator | Segger | J-LinkJ-Link | ARM Cortex-M / Cortex-R4 / Cortex-A / ARM7 / ARM9 | JTAG/SWD Emulator with USB interface |
| Programmer | Segger | Flasher ARMFlasher ARM | ARM Cortex-M / Cortex-R4 / Cortex-A / ARM7 / ARM9 | Flash Programmer for ARM and Cortex cores |
Technical Documents
Learning Center
Design Elements
| Type | Description |
|---|---|
Video
Kit Features
Product features
- CPU Internal 1024Kbytes of Flash, 136 Kbytes of SRAM and 16 Kbytes of EEPROM
- On board 128MB Nand Flash、32MB SDRAM，4MB SPI Flash（reserved), 2Kb EEPROM
- 7 inch (Resolution:800×480) TFT LCD touch screen
- Follow EMC, FCC, 3C design standard，performance and index meet related standards
- Fruitful expansion communication interfaces：
- 3 x 3 line serial port, RS232 voltage
- USB2.0 HS Deriver port, one USB2.0 FS Host port
- Micro SD card interface
- 10/100Mbps Ethernet port
- RS485 port，two CAN 2.0B ports，one SPI bus，1 I2C bus
- Four input and four output I/O interfaces implemented with isolated by optocouplers
- Support FatFs_vR0.08a file system （for SD card）
- Support uC/OS-II_v2.91 OS & emWin5.18 graphical interfaces
- Support LwIP_v1.4.0 protocol stack
- Support SPI to serial port module (up to 4 serial ports）
- Support 1.3 mega pixel OV9655 Camera module（SGPIO interface）
Hardware
- Processor
- NXP LPC4357FET256LPC4357FET256 (# EDM1070AR-01EDM1070AR-01) / LPC1857FET256LPC1857FET256 (# EDM1070BR-01EDM1070BR-01)
- Integrating hardware a floating-point unit
- Integrating a 1024KB Flash, a136 KB SRAM and a 16KB EEPROM
- Integrating a LCD controller with support of 24bpp true-color mode and a resolution of up to 1024×768
- USB 2.0 high-speed Host/Device/OTG interface with on-chip PHY and support of DMA transmission
- USB 2.0 high-speed Host/Device interface with on-chip PHY and ULPI which support external high-speed PHY
- 10/100 Mbits Ethernet MAC MII/RMII interface
- Four-wire SPI flash interface (SPIFI) with data transfer rate of up to 40Mbps per channel
- Two CAN 2.0B, four UART, two I2S, two I2C, two SSP, one SPI buses
- Four 32-bit general purpose timer, two standard PWM, one motor control PWM with Quadrature encoder interface
- Two 10-bit ADCs operating at up to 400KHz,
- 10-bit DAC operating at up to 400KHz
- Serial GPIO interface (SGPIO)
- 164 general-purpose I/O interfaces
- Two watchdog timers
- On-Board Memories
- 128MB NAND Flash
- 32MB SDRAM
- 2Kb EEPROM
- 4Mb SPI Flash (spare solder pads)
- Communication Interface
- Three serial interface implemented with phoenix connectors
- UART0: 3-wire serial interface, RS232 level
- UART2: 3-wire serial interface, RS232 level
- UART3: 3-wire serial interface, RS232 level
- RS485 interface implemented with phoenix connectors
- Two CAN2.0B interfaces implemented with phoenix connectors
- Two USB interfaces
- USB2.0 Device×1, High-speed, 480Mbps
- USB2.0 Host×1, Full-speed, 12Mbps
- 10/100Mbps Ethernet interface
- TF card slot
- 20-pin standard JTAG debug interface
- Four input and four output I/O interfaces implemented with phoenix connectors and isolated by optocouplers
- 8-channel ADC interface
- DAC interface
- SPIFI interface
- IIC interface
- I2S interface
- High-precision RTC (no battery by default)
- Spare interface for external hardware watchdog
- Others
- 7 inch (800*480) TFT LCD, 16bit RGB565 mode, supporting 4-wire resistive touch-screen
- ISP button
- Buzzer
- 5V power output interface
- Electrical Features
- Operating Temperature: 0 °C ~ 70 °C
- Storage Temperature: -40 °C ~ 85 °C
- Operating Humidity: 0% ~ 90% (Non-condensing)
- Power Supply: DC 9~24V, 150~400mA@12V
- Electrical Standards: CE, FCC and CCC
- PCB Layers: 6-layer PCB
Kit Contents
The Embest EDM1070AR-01EDM1070AR-01 Embedded Display Module is supplied with the following content:
- EDM1070AR-01 board (MINI435 Core BoardMINI435 Core Board, 7 inch LCD & TSP)
- CD （User manual, Source code and Development tools and etc）
- Four hexagonal screws & nuts
- EDM1070BR-01 board (MINI1857 Core BoardMINI1857 Core Board, 7 inch LCD & TSP)
- CD （User manual, Source code and Development tools and etc）
- Four hexagonal screws & nuts
