Embest: SBC8600B Single Board Computer based on TI AM3359 Sitara ARM Cortex-A8 MPU

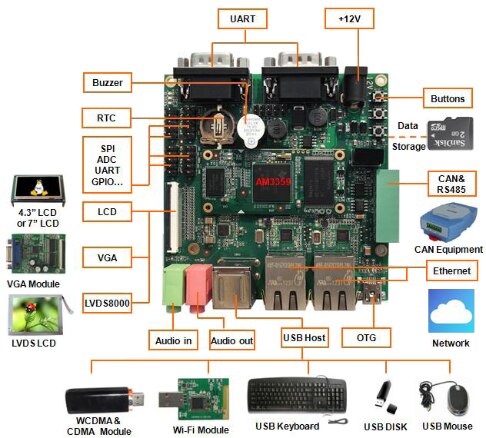

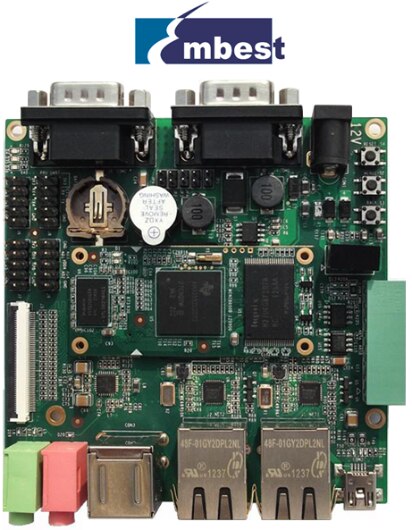

Overview   The SBC8600BSBC8600B  is an excellent high-performance single board computer based on Texas Instruments’ 720MHz Sitara AM3359AM3359 ARM Cortex-A8 processor. It is driven by a tiny core board (Mini8600BMini8600B) which has integrated AM3359 processor, DDR3, NAND Flash and extends most of the features and signals of the AM3359 CPU through expansion pins. The core board is combined with a carrier board to extend and provide more features through headers and connectors.   The SBC8600BSBC8600B  board comes with a rich set of communication peripherals including six serial ports (2*RS232, 3*TTL, 1*RS485), two 10/100/1000 Mbps Ethernet ports, two USB Hosts, USB OTG and CAN interfaces, providing an ideal solution for applications requiring remote control and monitoring or mass connectivity. The board also has an LCD and a touch screen interface, Audio input and output ports, RTC, Buzzer and many other interfaces. Embest offers 4.3 inch and 7 inch LCD panels as optional extras which also contain a 4-wire resistive touch screen. The SBC8600B is a ready-to-run platform with support for Linux 3.2.0, Android 2.3 and WinCE 7 operating systems.   The SBC8600BSBC8600B  board is a ready-to-run solution which is provided with a Linux 3.2.0, Android 2.3 and WinCE 7 BSP. One DVD is delivered along with the goods which includes the software driver source code and relative documents to help customer better understand this board and start their initial design. Additionally, Embest offers various optional modules for the SBC8600B which greatly enhance the functions of this board.   The Mini8600BMini8600B processor card is a small form-factor controller board based on TI’s Sitara AM3359 ARM Cortex-A8 processor. The tiny module integrates 2*256MBytes DDR3 SDRAM and 512Mbytes NAND Flash and uses two 0.4mm space 2*40-pin board-to-board male expansion connectors to bring out many hardware peripheral signals and GPIOs from the CPU.   Ordering Information: MPN Description SBC8600B SBC8600B Single Board Computer Only SBC8600B with 4.3"LCDSBC8600B with 4.3"LCD SBC8600B Single Board Computer with 4.3"LCD SBC8600B with 7"LCDSBC8600B with 7"LCD SBC8600B Single Board Computer with 7"LCD Mini8600BMini8600B Mini8600B Processor Card (Standalone)   Key Applications: Industrial Automation, Building Automation, Home control, Consumer Electronics, Security and Instrumentation.

More Development Kits and Tools More Embest Development Kits Embest CooCox Development Tools Knode Development Kits & Platform Room element14 Knode

Development Tools

Software Development Tools:

Tool Type	Supplier	MPN	Supported Family	Description
IDE	Texas Instruments	Code Composer Studio (CCStudio)	TI ARM MCUs	CCStudio is an integrated development environment (IDE) for TI embedded processor families. CCStudio comprises a suite of tools used to develop and debug embedded applications. It includes compilers for each of TI's device families, source code editor, project build environment, debugger, profiler, simulators, a real-time operating system and many other features. Learn More
IDE	ARM	DS-5	ARM Cortex-A  / Cortex-R / ARM9 / ARM11	The ARM Development Studio 5 (DS-5) tool enable developers to get the best from their ARM technology-based systems. Whether implementing an ARM processor-based SoC or writing software for an Application Specific Standard Product (ASSP), ARM tools enable you to deliver the best solution with the highest performance and lowest power. Learn More

Hardware Development Tools:

Tool Type	Supplier	MPN	Supported Family	Description
Debuggers, Emulators & JTAG Tools	ARM	DSTRM-KT-0181ADSTRM-KT-0181A	ARM7 / ARM9 / ARM11 / Cortex-A / Cortex-R / Cortex-M	DSTREAM Debug and Trace Unit
Debuggers, Emulators & JTAG Tools	Segger	J-LinkJ-Link	ARM Cortex-M  / Cortex-R4 / Cortex-A / ARM7 / ARM9	JTAG/SWD Emulator with USB interface
Programmer	Segger	Flasher ARMFlasher ARM	ARM Cortex-M  / Cortex-R4 / Cortex-A / ARM7 / ARM9	Flash Programmer for ARM and Cortex cores

Technical Documents

Learning Center

Type	Description
User Guide	Embest: User Manual for SBC8600B Single Board Computer
Quick Start Guide	Embest: Quick Start Guide for SBC8600B Single Board Computer
User Guide	Embest: User Guide for Mini8600B Processor Card
Datasheet	Texas Instruments: Datasheet for AM335x ARM Cortex-A8 Microprocessors
White Paper	Texas Instruments: White Paper for EtherCAT on Sitara AM335x ARM Cortex-A8 Microprocessors
White Paper	Texas Instruments: White Paper for Profibus on AM335x and AM1810 Sitara ARM Microprocessor (Rev. A)

Design Elements

Video

You don't have permission to edit metadata of this video.

Edit media

Dimensions x Small Medium Large Custom

Subject (required) Brief Description Tags (separated by comma) Video visibility in search results Visible Hidden

Parent content

Embest: TI AM3359 ARM Cortex-A8 Based DevKit8600 Evaluation Kit Embest: SBC8600B Single Board Computer based on TI AM3359 Sitara ARM Cortex-A8 MPU Texas Instruments: TMDXIDK3359 - AM3359 Industrial Development Kit (IDK)

Poster

Upload Preview

Ok

Cancel

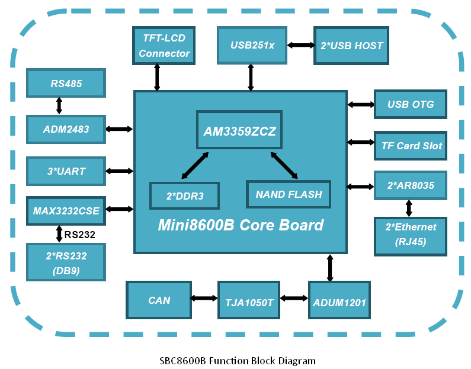

Kit Features

Hardware Features

CPU Board (Mini8600BMini8600B for SBC8600B)

• Processor
  • TI AM3359AM3359 ARM Cortex-A8 microprocessor
    • 720-MHz ARM Cortex-A8 32-bit RISC MPU
    • NEON SIMD Coprocessor
    • 32KB/32KB of L1 Instruction/Data Cache with Single-Error Detection (parity)
    • 256KB of L2 Cache with Error Correcting Code (ECC)
    • SGX530 Graphics Engine
    • Programmable Real-Time Unit Subsystem

• Memory
  • 2*256MByte DDR3 SDRAM
  • 512MByte NAND Flash
• Expansion Interfaces and Signals Routed to Pins
  • Two 0.4mm space 2*40-pin board-to-board male expansion connectors
    • TFT LCD Interface (support 24-bpp parallel RGB Interface LCD)
    • Two USB 2.0 OTG Ports With Integrated PHY, High-Speed
    • Three inter-integrated circuit (I2C) Bus interfaces
    • Six UART interfaces
    • SPI interface
    • Two 10/100/1000 Mb/s Ethernet MAC (EMAC) with Management Data Input/Output (MDIO) module
    • Multichannel audio serial ports (McASP)
    • 8-channel 12-bit ADC interfaces
    • Two 4-line SD/MMC card interfaces
    • GPMC bus

Expansion Board of SBC8600BSBC8600B

• Audio/Video Interfaces
  • Audio input interface (3.5mm audio jack)
  • Two-channel audio output interface (3.5mm audio jack)
  • TFT LCD interface / 4 line Resistive Touch Screen interface (50pin FPC connector)
• Data Transfer Interfaces
  • Serial port:
    • 3 line Debug serial port, RS232 voltage (UART0 brings out by DB9 connector)
    • 3 line serial ports, RS232 voltage (UART2 brings out by DB9 connector)
    • Three 3 line serial port, TTL voltage (UART3/4/5 brings out by J6 and J7 2.54mm pitch 2*5-pin expansion connectors)
  • USB ports:
    • USB2.0 Host ports with Integrated PHY (High-speed, 480Mbps, USB-A Type)
    • USB2.0 OTG port with Integrated PHY (High-speed, 480Mbps, Mini-USB Type)
  • TF card slot
  • Two Ethernet: 10/100/1000 Mbps, RJ45 connectors (only one Ethernet supported in WinCE)
  • CAN2.0 interface (brings out by 8-pin Phoenix Connector)
  • RS485 interface (brings out by 8-pin Phoenix Connector)
  • GPIOs
• Input Interfaces and Other Facilities
  • RESET button
  • Two User buttons (MENU and BACK)
  • Power indicator
  • Two User LEDs
  • Buzzer

Mechanical Parameters

• Dimensions: 95mm x 95mm (expansion board)
• 60mm x 27mm (CPU board Mini8118)
• Working Temperature: 0~70 Celsius
• Humidity Range: 20% ~ 90%
• Input Voltage: 12V

Software Features

Kit Contents

The Embest SBC8600BSBC8600B  Single Board Computer supplied with below contents:

• SBC8600B Board (including CPU board and expansion board)
• 12V power adapter
• Crossover serial cable
• Ethernet cable
• Product DVD (including user manual, schematic in PDF format, datasheet, Linux 3.2.0, Android 2.3 and WinCE 7 BSP)
• LCD Options
  • Without LCD
  • With 4.3 inch LCD
  • With 7 inch LCD

Add-on Modules

* = Provided with Source Code
