Embest: SOC8200 Single Board Computer & DevKit Based on TI Sitara AM3517 MPU

Overview   The Embest SOC8200SOC8200 is a highly-integrated single board computer with a PC104 form  factor. It employs TI’s  high-performance AM3517AM3517 microprocessor which is based on 600MHz ARM Cortex-A8 Core with NEON SIMD Coprocessor  and POWERVR SGX Graphics Accelerator and offers video, image, and graphics processing capable of supporting single board computers, home and industrial automation, and digital signage.   The SOC8200SOC8200  board has onboard 256MB DDR2 SDRAM, 256MB NAND Flash and 4MB NOR Flash and extends various functions through pins including serial  port, Ethernet, CAN, RS485, SD/MMC card, CF card, Audio In/Out, Camera, LCD,  USB Host, USB Device, expansion connector and JTAG.   Embest has designed an expansion board for the SOC8200SOC8200, along with some  accessories, a software package and documents, it is an ideal development kit  which is a convenient way for customers to evaluate the functionality of  Texas Instruments' Sitara AM3517AM3517 microprocessor. The SOC8200 board supports both Linux 2.6.32 and Windows CE6.0 operation systems. Embest provides all drivers in the source code and together with user manual and some other tools and documents to help the user immediately start with their code development.   The  board can be operated in a wide temperature range from -40°C to 85°C which enables it to fit specific industrial needs and can be used in various applications such as industrial control, consumer electronics, medical equipment, instrumentation, security monitoring  and so on.   MPN Description SOC8200SOC8200 SOC8200 Single Board Computer SOC8200 with 4.3"LCDSOC8200 with 4.3"LCD SOC8200 Development Kit with expansion board and 4.3 inch LCD   Key Applications: Industrial control, Consumer electronics, Medical equipment, Instrumentation, Security monitoring.

More Development Kits and Tools More Embest Development Kits Embest CooCox Development Tools Knode Development Kits & Platform Room element14 Knode

Development Tools

Software Development Tools:

Tool Type	Supplier	MPN	Supported Family	Description
IDE	Texas Instruments	Code Composer Studio (CCStudio)	TI ARM MCUs	CCStudio is an integrated development environment (IDE) for TI embedded   processor families. CCStudio comprises a suite of tools used to develop and debug embedded applications. It includes   compilers for each of TI's device families, a source code editor, project build environment, debugger, profiler, simulators, a real-time operating system and many other features. Learn More
IDE	ARM	DS-5	ARM Cortex-A  / Cortex-R / ARM9 / ARM11	The ARM Development Studio 5 (DS-5) tool enable developers to get the best from their ARM technology-based systems. Whether implementing an ARM processor-based SoC or writing software for an Application Specific Standard Product (ASSP), ARM tools enable you to deliver the best solution with the highest performance and lowest power. Learn More

Hardware Development Tools:

Tool Type	Supplier	MPN	Supported Family	Description
Debuggers, Emulators & JTAG Tools	ARM	DSTRM-KT-0181ADSTRM-KT-0181A	ARM7 / ARM9 / ARM11 / Cortex-A / Cortex-R / Cortex-M	DSTREAM Debug and Trace Unit
Debuggers, Emulators & JTAG Tools	Segger	J-LinkJ-Link	ARM Cortex-M  / Cortex-R4 / Cortex-A / ARM7 / ARM9	JTAG/SWD Emulator with USB interface
Programmer	Segger	Flasher ARMFlasher ARM	ARM Cortex-M  / Cortex-R4 / Cortex-A / ARM7 / ARM9	Flash Programmer for ARM and Cortex cores

Technical Documents

Learning Center

Design Elements

Video

You don't have permission to edit metadata of this video.

Edit media

Dimensions x Small Medium Large Custom

Subject (required) Brief Description Tags (separated by comma) Video visibility in search results Visible Hidden

Parent content

Embest: SOC8200 Single Board Computer & DevKit Based on TI Sitara AM3517 MPU Texas Instruments: Sitara AM3517 Based TMDSEVM3517 Evaluation Module (EVM)

Poster

Upload Preview

Ok

Cancel

Kit Features

Hardware features:

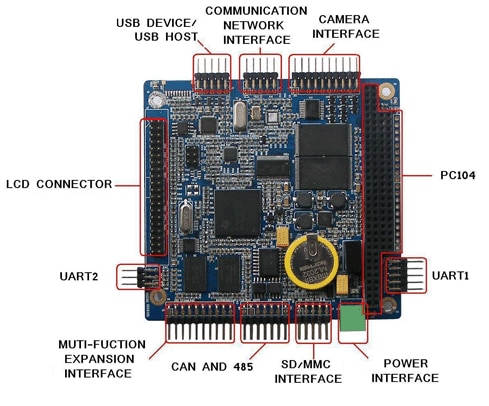

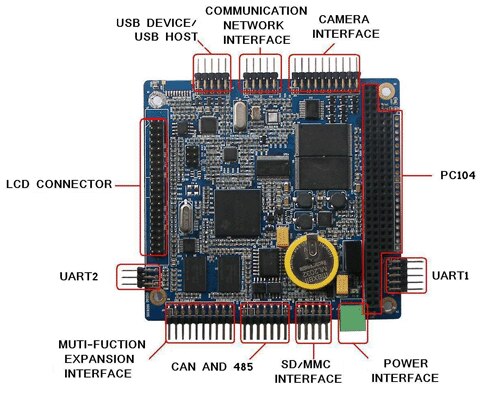

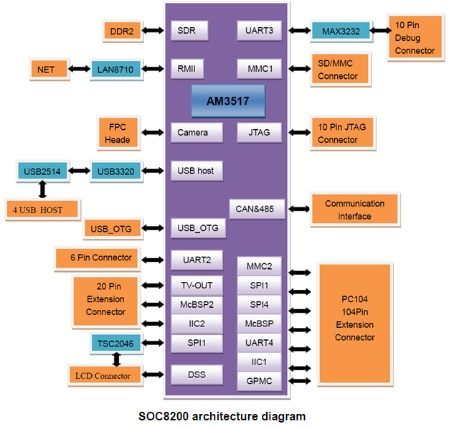

SOC8200SOC8200  Single Board Computer

• Processor
  • TI AM3517AM3517 industrial applications processors
    • NEON SIMD Coprocessor
    • 600MHz Sitara ARM Cortex-A8 Core
    • POWERVR SGX Graphics Accelerator (AM3517AM3517 only)
    • 16KB I-Cache, 16KB D-Cache, 256KB L2-Cache, 112KB ROM, 64KB Share SRAM
• Memory
  • 256MB DDR2 SDRAM, 32bit
  • 256MB NAND Flash, 8bit
  • 4MB NOR Flash, 16bit (driver has not been provided at present)
• Signals Routed to Pins
  • 5-wire Debug serial port (RS232)
  • 5-wire serial port (TTL)
  • Two USB 2.0 Host High-speed ports, 480Mbps
  • USB 2.0 Device High-speed port, 480Mbps
  • Audio (IIS)
  • 16-bit LCD output
  • 10-bit Camera video input
  • 1-channel S-Video output
  • 1-channel AV output
  • RS485 serial port
  • 1-channel CAN bus
  • 10/100Mbps Ethernet port
  • SD/MMC card
  • Multi-functional expansion interface (McBSP, IIC, McSPI, TV-OUT)
  • PC104 expansion interface (GPMC Bus, MMC, USB, McSPI, UART1, Clock, HDQ)
  • JTAG interface

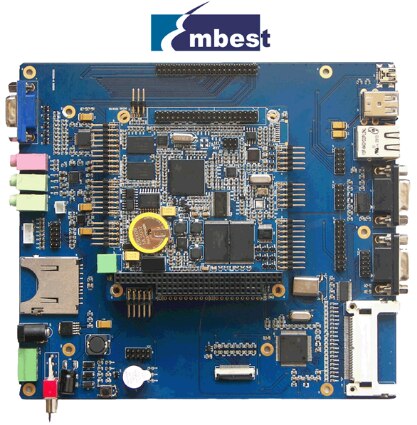

SOC8200SOC8200 Expansion Board

• Audio/Video Interfaces
  • Audio input port
  • Stereo audio output port
  • 15-pin standard VGA output interface
  • Buzzer
• Communication Interfaces
  • 5-wire RS232 serial port (DB9)
  • 9-wire RS232 serial port (DB9)
  • 9-wire TTL serial port (2*5pin 2.5mm pitch connector)
  • Two High-speed  USB 2.0 Host ports, 480Mbps
  • High-speed  USB 2.0 Device port, 480Mbps
  • 10/100Mbps  Ethernet port (RJ45)
  • 10-bit Camera interface
  • Reset button
  • SD/MMC card slot
  • CF card slot

Mechanical Parameters

• SOC8200 Single Board Computer Dimensions: 96mm x 90mm (8 layer PCB design)
• SOC8200 Expansion Board Dimensions: 170mm x 190mm
• Input Voltage: +5V (CPU board), +12V (Expansion Board)
• Working Temperature: -40 ~ 85 °C

Software features:

Kit Contents

1. The Embest SOC8200SOC8200 Single Board Computer supplied with below contents:

• Hardware:
  • SOC8200 Single Board Computer
• Software:
  • Preloaded with Linux image, do not provide Linux BSP or technical support

2. The Embest SOC8200 Development Kit supplied with below contents:

• Hardware:
  • SOC8200 Single Board Computer with Expansion Board
  • 2G SD card
  • Serial cable
  • Ethernet cable
  • 12V Power adapter
  • 2x5-pin 12cm cable
  • 2x10-pin 12cm cable
  • 2x20-pin 12cm cable
  • CAN8200 Module (CAN Module)
  • CD (including software  and documents)
  • LCD (optional, including touch screen)
    • Remark: 4.3 inch LCD (resolution: 480*272), 7 inch LCD (resolution: 800*480)
• Software:
  • Documents (user manual, schematic drawing,  Datasheet)
  • Linux 2.6.32 BSP
  • WinCE 6.0 BSP

Add-on Modules

* = Provided with Source Code
