Overview

The OMAP-L137OMAP-L137 EVM  is a standalone development platform that enables users to evaluate and develop applications for the Texas Instruments OMAP-L137 EVALOMAP-L137 EVAL EVAL processor.  Schematics and application notes are available to ease hardware development and reduce time to market The EVM comes with a full complement of on board devices that suit a wide variety of application environments.

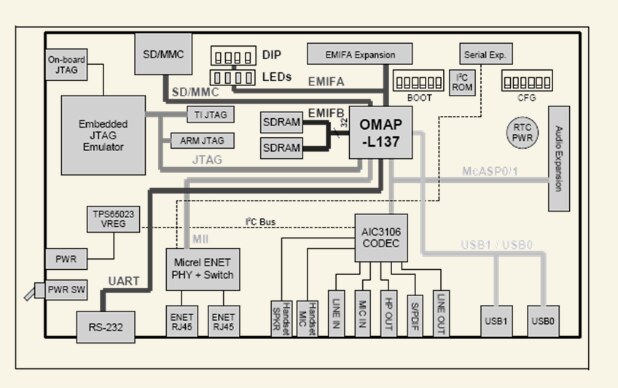

The OMAP-L137 EVALOMAP-L137 EVAL EVAL on the EVM interfaces to on-board peripherals through the 16-bit wide multiplexed EMIF interface pins. The SDRAM memory is connected to its own dedicated 32 bit wide bus. An on-board AIC3106AIC3106 codec allows the DSP to transmit and receive analog audio signals. The I2C bus is used for the codec control interface, while the McASP controls the audio stream. Signal interfacing is done through 3.5mm audio jacks that correspond to microphone input, headphone output, line input, and line output.

An included +5V external power supply is used to power the board. On-board switching voltage regulators provide the CPU core voltage, +3.3V, +1.8V for peripheral interfacing. The board is held in reset by the on board power controller until these supplies are within operating specifications. The EVM is designed to work with TI’s Code Composer Studio IDECode Composer Studio IDE, or MontaVista tool environments. Code Composer communicates with the board through an on board JTAG emulator. This EVM is shipped with an EVM specific Code Composer Studio environment.

Key Applications:

• Professional Audio ,Industrial Control,High-Speed Encoding,USB, Networking

Development Tools

Software Development Tools:

Tool Type	Supplier	MPN	Supported Family	Description
IDE	Texas Instruments	Code Composer Studio (CCStudio)	TI ARM MCUs	CCStudio is an integrated development environment (IDE) for TI embedded   processor families. CCStudio comprises a suite of tools used to develop and debug embedded applications. It includes   compilers for each of TI's device families, source code editor, project build environment, debugger, profiler, simulators,   real-time operating system and many other features. Learn More
IDE	ARM	DS-5	ARM Cortex-A  / Cortex-R / ARM9 / ARM11	The ARM Development Studio 5 (DS-5) tool enable developers to get the best from their ARM technology-based systems. Whether implementing an ARM processor-based SoC or writing software for an Application Specific Standard Product (ASSP), ARM tools enable you to deliver the best solution with the highest performance and lowest power. Learn More
RTOS	Micrium	uC/OS III	ColdFire / HC08 / HC12 / ARM / S08 / RS08 / PowerPC	μC/OS-III is Micrium’s newest RTOS, designed for developers who need to save time on their current and next embedded sytem projects. Using a commercial real-time kernel such as μC/OS-III provides a solid foundation and framework to the design engineer dealing with the growing complexity of embedded designs.  Learn More
RTOS	Segger	embOS	ColdFire / HC08 / HC12 / ARM / S08 / RS08	SEGGER embOS (Real Time Operating System) follows strict, yet efficient coding and documentation standards. embOS is a priority-controlled real time operating system, designed to be used as foundation for the development of embedded real-time applications.  Learn More

Hardware Development Tools:

Tool   Type	Supplier	MPN	Supported   Family	Description
Emulator / Debugger / Programmer	ARM	ULINK2ULINK2	ARM Cortex-M  / ARM7 / ARM9	ULINK2 Debug Adapter
Emulator / Debugger / Programmer	ARM	ULINKProULINKPro	ARM Cortex-M  / ARM7 / ARM9	ULINKpro Debug and Trace Unit
Emulator	Segger	J-LinkJ-Link	ARM Cortex-M  / Cortex-R4 / Cortex-A / ARM7 / ARM9	JTAG/SWD Emulator with USB interface
Programmer	Segger	Flasher ARMFlasher ARM	ARM Cortex-M  / Cortex-R4 / Cortex-A / ARM7 / ARM9	Flash Programmer for ARM and Cortex cores
Debuggers, Emulators & JTAG Tools	Texas Instruments	XDS100V2 JTAGXDS100V2 JTAG	C2000 / C5000 / C6000	JTAG Emulator

Back to top

Technical Documents

Learning Center

Design Elements

Back to top

Video

Back to top

Kit Features

• A Texas Instruments OMAP-L137 EVALOMAP-L137 EVAL EVAL device with a C674x VLIW DSP floating point processor and an ARM926EJ-S processor operating up to 300 Mhz.
• 64 Megabytes SDRAM
• SPI Boot EEPROM
• 2 Port Ethernet Phy/switch
• SD/MMC/MMC Plus media card interfaces
• TLV320AIC3106TLV320AIC3106 Stereo Codec
• USB 1.1 High speed interface
• USB2 2.0 Full speed interface
• RS-232 Interface
• On chip real time clock
• Configurable boot load options
• 4 user LEDs/4 position user DIP switch
• Single voltage power supply (+5V)
• Expansion connectors for daughter card use
• Embedded JTAG Emulation
• 14 Pin TI JTAG/20 Pin ARM JTAG Interfaces

Back to top

Kit Contents

• OMAP-L137/TMS320C6747 Starter Kit Board
• EVM board specific version of Code Composer Studio IDE
• Demo version of MontaVista Pro 5.0
• Quick Start Guide
• USB Cable
• Ethernet Cable
• RS-232 Cable
• Stereo cable
• Power Supply and line cords (US, UK, Euro)

Back to top
