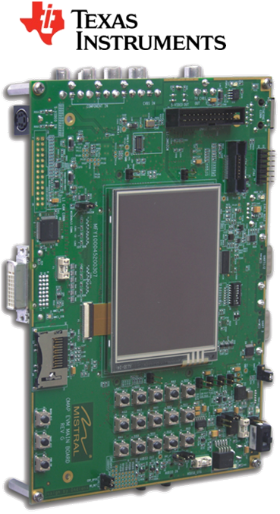

Texas Instruments: AM/DM37x based TMDSEVM3730 Evaluation Module

Buy NowBuy NowDevelopment ToolsTechnical DocumentsVideoFeaturesKit Contents


Kit Overview



The DM37x generation of high-performance, applications processors are based on the enhanced device architecture and are integrated on Texas Instruments advanced 45-nm process technology. This architecture is designed to provide best in class ARM Cortex A8 and Graphics performance while delivering low power consumption.



Developed with Mistral, the AM/DM37x based TMDSEVM3730 Evaluation ModuleTMDSEVM3730 Evaluation Module (EVM) enables developers to immediately start evaluating AM37x or DM37x processors (DM3730DM3730, DM3725, AM3715AM3715, AM3703) and begin building solutions, including portable multimedia, portable data terminals, portable medical equipment, portable communications, home and building automation, navigation systems, test and measurement, smart displays and human machine interaction (HMI) industrial interfaces amongst many others.



The device can support numerous HLOS and RTOS solutions including Linux and Windows Embedded CE which are available directly from TI. Additionally, the device is fully backward compatible with previous CortexTm-A8 processors and OMAPTm processors.



This board featuring the AM3715AM3715 high-performance application processor comprising of Super scalar ARMRegistered CortexTm A8 with NEON co-processing, and SGX subsystem for 3D graphics acceleration to support display and smooth user interfaces, this EVM kit will allow developers to evaluate and speed time to market. Equipped with daughter card expansion connectors, the AM37x EVM can be upgraded to prototype complete systems.



Key Applications: Medical Equipment, Portable communications, Home and Building automation, Navigation systems, Test and measurement, Smart displays, Human machine interaction (HMI).

More Development Kits and Tools
imageTexas Instruments Development KitsimageTexas Instruments Development Tools
imageDevelopment Platforms & Kitsimageelement14 Knode



Development Tools




Software Development Tools:



Tool TypeSupplierMPNSupported FamilyDescription
IDETexas InstrumentsCode Composer Studio (CCStudio)TI ARM MCUsCCStudio is an integrated development environment (IDE) for TI embedded   processor families. CCStudio comprises a suite of tools used to develop and debug embedded applications. It includes   compilers for each of TI's device families, source code editor, project build environment, debugger, profiler, simulators,   real-time operating system and many other features. Learn More
IDEARMDS-5ARM CortexTm-A  / CortexTm-R / ARM9Tm / ARM11Tm

The ARM Development Studio 5 (DS-5) tool enable developers to get the best from their ARM technology-based systems. Whether implementing an ARM processor-based SoC or writing software for an Application Specific Standard Product (ASSP), ARM tools enable you to deliver the best solution with the highest performance and lowest power. Learn More





Hardware Development Tools:



Tool TypeSupplierMPNSupported FamilyDescription
Debuggers, Emulators & JTAG ToolsARMDSTRM-KT-0181ADSTRM-KT-0181AARM7 / ARM9 / ARM11 / Cortex-A / Cortex-R / Cortex-MDSTREAM Debug and Trace Unit
Debuggers, Emulators & JTAG ToolsSeggerJ-LinkJ-LinkARM CortexTm-M  / Cortex-R4 / Cortex-A / ARM7Tm / ARM9TmJTAG/SWD Emulator with USB interface
ProgrammerSeggerFlasher ARMFlasher ARMARM CortexTm-M  / Cortex-R4 / Cortex-A / ARM7Tm / ARM9TmFlash Programmer for ARM and Cortex cores





Back to top



Technical Documents


Learning Center



TypeDescription
User GuideTexas Instruments: Quick Start Guide for TMDSEVM3730 Development Kit
User GuideMistral Solutions: Hardware Users Guide for TMDSEVM3730 Development Kit
User GuideTexas Instruments: Software Developers Guide for TMDSEVM3730 Development kit
Reference ManualTexas Instruments: Technical Reference Manual for AM/DM37x Multimedia Device
DatasheetTexas Instruments: Datasheet for AM3715, AM3703 Sitara ARM Microprocessors (Rev. F)
DatasheetTexas Instruments: Datasheet for DM3730/25 Digital Media Processors (Rev. D)
Application NoteTexas Instruments: Application note on PCB Design Req for Distant Network for TI OMAP3630, AM37xx, and DM37xx MCUs
Application NoteTexas Instruments: Application note on Pinmux Utility for ARM MPU Processors
WhitepaperTexas Instruments: White paper on Changes are challenging manufacturers of retail electronic transaction equipment
Revision notesTexas Instruments: Revision note for AM3715, AM3703 Microprocessors Silicon Errata (Silicon Revisions 1.2 1.1 & 1.0) (Rev. D)



Design Elements



TypeDescription
SchematicTexas Instruments: Schematic files for TMDSEVM3730
LayoutTexas Instruments: Layout files for TMDSEVM3730
BOMTexas Instruments: BOM files for TMDSEVM3730
BSDLTexas Instruments: BSDL Model for AM/DM37x CBC (Rev. B)
BSDLTexas Instruments: BSDL Model for AM/DM37x CUS
BSDLTexas Instruments: BSDL Model for AM/DM37x CBP





Back to top



Video




This video is unavailable.
You don't have permission to edit metadata of this video.





Back to top



Kit Features



Hardware

  • DM3730DM3730 Processor Module
  • 1-GHz ARMCortex A8 Processor
  • 800-MHz DSP processor with IVA video accelerators
  • 256MB MDDR/512MB NAND
  • TPS65950TPS65950 Power Management Module
  • WL1271WL1271 Daughter Card:
    • WL1271-based module by LS Research which adds Wireless LAN (IEEE 802.11 b/g/n) and BluetoothRegistered 2.1+EDR connectivity to the system
    • On board chip antenna
  • 3.7" LCD Touch screen

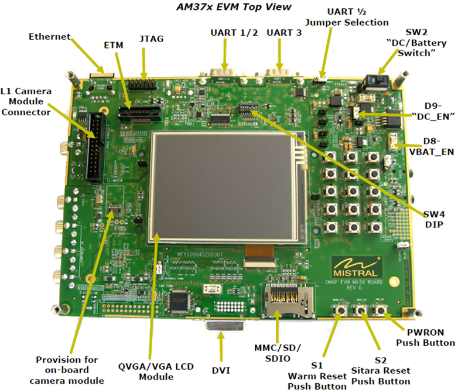

  • EVM Base Board
  • Ethernet, SD/MMC, UARTs, USB Host and OTG, Audio and Video Output, JTAG, Keypad, and expansion USB, Serial, and Power cables
  • Universal power supply with regional adapter
  • Stylus and USB SD Card Reader

Software

  • AM37x and DM37x Software Development kits provided via included 4GB SD Card
    • Linux
    • Android









Back to top

Kit Contents




  • AM37x EVM main board with
    • AM37x processor module
    • TPS65950TPS65950 power management module
    • WL1271WL1271 WLAN/ daughter card
    • 3.7 Touch screen LCD
  • Linux SDK SD card
  • USB and serial cables
  • Stylus
  • Universal power supply with regional adapter
  • AM37x Software Developer’s Kit (SD card)
