| Kit Overview

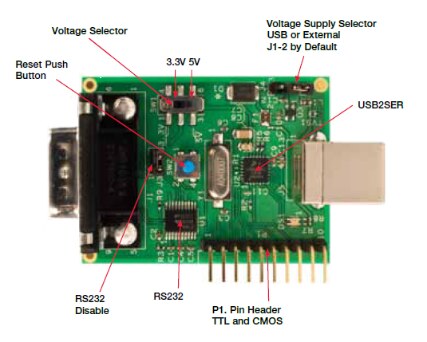

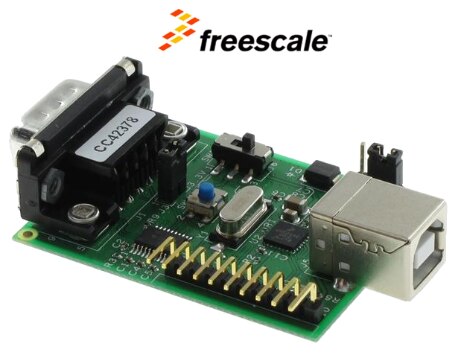

The EVBUSB2SER board is part of Freescale's solutions for communication, and provides another way to connect your embedded system via USB. The EVBUSB2SER board is a communication bridge between the USB and serial data, which can be any RS232/RS485 or TTL. The EVBUSB2SER board supports baud rates from 300 through 115200 bps, 8 data bits, odd or even parity, 1 or 2 stop bits, software (xon/xoff) and hardware flow control.
Freescale Ready Play Solutions integrate a certified function to different applications allowing customers to add features while reducing development cost. This simplifies design cycles and enables scalability in applications and systems. The USB2SER is a USB to UART bridge controller on a 5 x 5 mm lead free QFN24. It is a simple low cost solution to enable a USB for an embedded system with a UART port, reducing external component counts. It supports USB 2.0 fullspeed and TTL RS232 or RS485 UART with options for hardware flow control, Software Flow control (Xon-Xoff), even or odd parity, and stop bits configuration. The USB2SER can act as a CDC standard device that eliminates the need for custom drivers for operation when the flow-control is not needed (only an INF file is required).
Key Applications: Medical, Connectivity, Industrial, Motor Control, Universal Serial Bus (USB). | |||||||||||
| ||||||||||||
Development Tools
Software Development Tools:
| Tool Type | Supplier | MPN | Supported Family | Description |
|---|---|---|---|---|
| IDE | Freescale | CodeWarrior | All Freescale MCU's | Freescale's software and development solutions take you beyond the silicon, helping to bring your embedded applications to life. Learn More |
Hardware Development Tools:
| Tool Type | Supplier | MPN | Supported Family | Description |
|---|---|---|---|---|
| Debuggers, Emulators & JTAG Tools | Freescale | U-MULTILINK | HC08 / HCS08 / HCS12 / ColdFire / Qorivva MPC55xx/56xx / Kinetis | P&E USB Multilink Universal debug and programming interface for HCS08, HC(S)12(X), ColdFire, Qorivva MPC55xx/56xx, and Kinetis |
| Debuggers, Emulators & JTAG Tools | Freescale | USBMULTILINKBDME | HCS08 / RS08 / HCS12 | USB BDM Interface cable for the 68HC(S)12(X) and 68HCS08 and 68RS08 and ColdFire V1 |
| Debuggers, Emulators & JTAG Tools | Freescale | USBMULTILINK08E | HC08 | In-circuit emulation, debugging and programming for 68HC08 Flash MCUs |
| Debugger / Programmer | Freescale | M68CYCLONEPROE | HC08 / HS08 / RS08 / HCS12 | Hardware Debug Interface and Stand-Alone Programmer for HC08, HCS08, RS08, ColdFire V1, and HC(S)12(X) |
Technical Documents
Learning Center
| Type | Description |
|---|---|
| User Guide | Freescale: Quick Start Guide For USB2SER |
| Product Brief | Freescale: Fact Sheet For USB2SER |
| Solution Guide | Freescale: Solutions for consumer and industrial applications |
| Product Brief | Freescale: Product Brief on Managing Problem of Stop Error 0x000000CA When Using Multiple USB2SER in Windows XP |
| Application Note | Freescale: AN4314: Using USB2SER DLL in C# Projects |
Design Elements
| Type | Description |
|---|---|
| Schematics | Freescale: Schematics For EVBUSB2SER |
| Application Library | Freescale: USB2SER Drivers Installer for Windows 64bit |
| Application Library | Freescale: Software Code for Freescale MQX RTOS 3.7 Patch |
| Application Library | Freescale: USB2SER Drivers Installer for Windows 32bit |
Video
Kit Features
- Single chip USB to RS232 UART data transfer
- Certified Full Speed USB 2.0 support
- 300 bps – 115200 bps UART with software Xon/Xoff and hardware flow control
- 2.7v to 5.5v Voltage operation
- Available drivers for windows 7, Windows Vista , Windows XP and Linux Kernel 2.6.34 and higher.
Kit Contents
- EVBUSB2SER - USB to Serial Bridge Evaluation Board
