Polygon Isolation Eagle

Hi everybody,

I am quite new using Eagle Soft for our PCBs...

I am using polygons for Ground and power planes, but I am not able to change the isolation parameter. Always I have an isolation between the polygons and other objects set as 1.27mm, although I change it in polygon propierties. I also checked the design rules, but with no results.

Could anybody guide me to find a solution? I understand is better for manufacturing to have a generous isolation between polygons and other objects, but for a small PCB, a isolation of 1.27 is to much!

Thanks in advance!

Jordi

0 Former Member over 8 years ago

Hi Jordi, I will provide screen captures of the steps I just used. Let me know if this helped you.

Select " i "

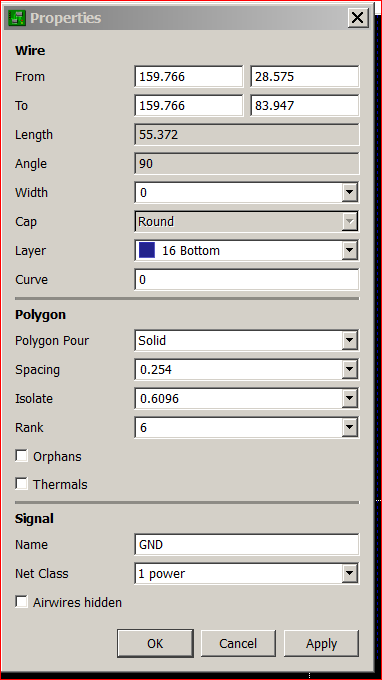

Click on the polygon you want to edit and you should see this screen: (Note: make certain the layer is correct. In my case, the polygon is on Layer 16.
Can you get to this point?

Brian
