Eagle schematic: Linking signal over different sheets

Former Member

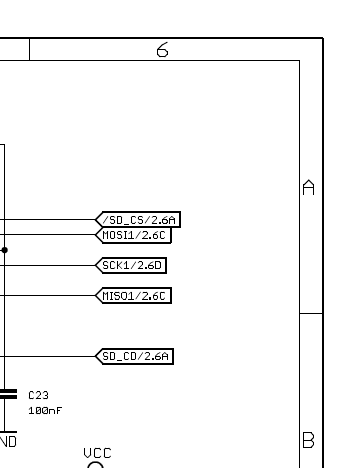

I've seen in schematics, which have frames in it, each net is named with this MOSI1/2.6C . This tells us that the this signal MOSI1 is connected to sheet 2 and the "6C " locates the signal on the sheet using a co-ordinate system. How to do this in Eagle schematic editor? What is the technical names for this part or feature in CAD?


  • 0

    Am 12.12.2014 um 04:17 schrieb Yash Parulekar:

    I've seen in schematics, which have frames in it, each net is named with

    this MOSI1/2.6C . This tells us that the this signal MOSI1 is connected

    to sheet 2 and the "6C " locates the signal on the sheet using a

    co-ordinate system. How to do this in Eagle schematic editor? What is

    the technical names for this part or feature in CAD?



    --

    To view any images and attachments in this post, visit:

    http://www.element14.com/community/message/134551





    This requires the use of a "localizer" frame like A4L-LOC.

    You must CHANGE Xref =on , then you can use the label command to

    generate the "flags" to connect to the nets.



    --

    Mit freundlichen Grüßen / With best regards



    Joern Paschedag
