What to do about stop mask error?

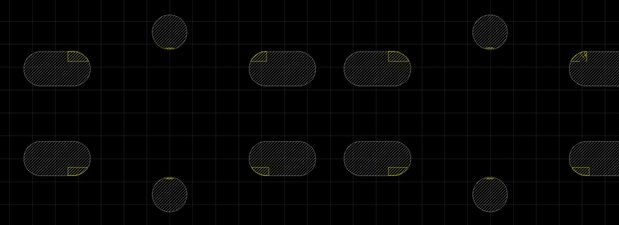

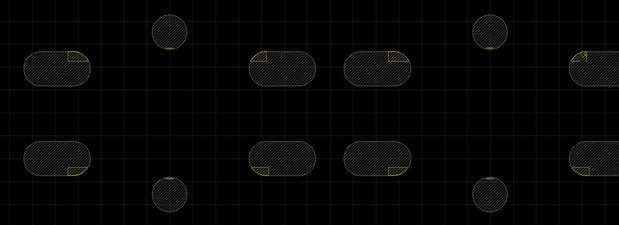

I'm getting a stop mask error. Its on layer 29, tstop. It's for a Omron button and it has labels 1,2,3,4 and I'm wondering if maybe part of those label bled in? I'm not sure what to do. Do I just ignore the error? I highlighted the problem area. Here is just the layer 29

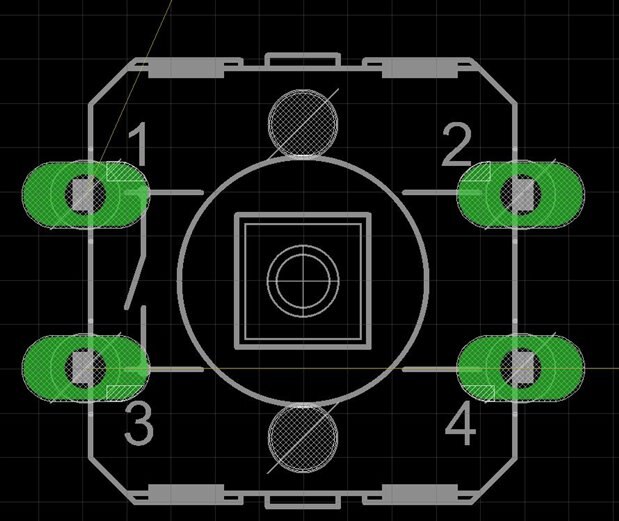

Here is the part with all the layers.

0 clem57 over 10 years ago

first, check to see that you don't also have document or tdocu layers turned on.

Some eagle parts have way too much drawn in the tplace layer. tplace should have exactly what you want on the "silk screen" (aka legend) layer. I like tdocu for info to help me understand part outline and orientation.

It's easy enough to make a copy of the part and move the offending stuff to the proper layer (tdocu for me). Create the library you want and have it open. Then go to the control panel, expand the libraries section, expand the library that has the bad part, right click on the part and select copy to library. Then go back the lib editor, open the part, figure out which package it uses and edit that. Select change/layer - tdocu and click on the parts that you want on that layer. save the lib, go to the schematic, library/use the new library and then replace the offending parts.
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
0 autodeskguest over 10 years ago in reply to clem57

Strange, when I go into the package, to edit it, the problem area is not
there.

You can see in the areas that were a problem, they are not a problem
here. :/

--
To view any images and attachments in this post, visit:
http://www.element14.com/community/message/150721
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
0 red913 over 10 years ago in reply to clem57

Turns out it was from the DRC I ran. Clear all...moving on!
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
0 clem57 over 10 years ago in reply to autodeskguest

I guess that sounds good then.
Clem
