How to rotate pin number direction

e14 Contributor

Hello,



I've created a new part for an 8pin dual comparator. The device has 2 symbols, one comparator with the power and ground pins and 1 with just the second comparator pins.

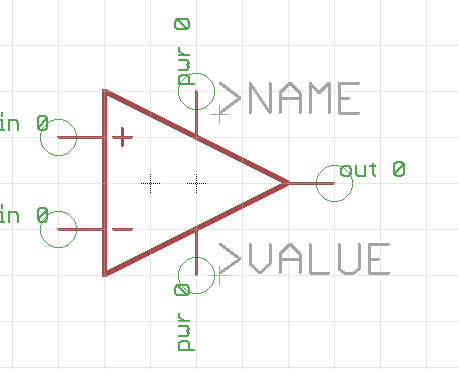

The power and ground pins have their numbers rotated 90 degrees on the schematic. I can't seem to figure out how to rotate just the pin numbers. This is how the symbol looks:

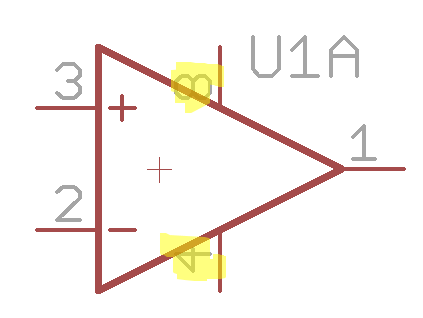

This is how it looks when used on a schematic. The pins numbers that need rotation are highlighted. Can anyone tell me where to fix that?


Thanks.

  • 0 in reply to autodeskguest

    On 06/13/2016 08:06 AM, Rob Pearce wrote:

    On 13/06/16 09:41, Gerald Schwarz wrote:

    But this would be a very easy thing - smash from the component and separate properties for the characters - in the library editor.

    The hope dies at last.



    It's always such a joy to us software engineers when some random

    stranger who's never seen, let alone understood, our code comes along

    and tells us that something is "very easy". Oh yes. Such a joy.





    I'm with you on that, Rob.  I learned decades ago to figure out how long

    it will take, double it, and go to the next higher unit measurement -

    weeks instead of days, or months instead of weeks.  Following that

    policy, it seems that I usually finish the task ahead of schedule and

    under budget.



    But to the point of the OP, if one were to have the ability to smash the

    pin number and move it around, it pretty much defeats the purpose of

    having pin numbers.



    The biggest problem with the pin numbers is that the component outline

    usually runs right over them.  It's not really a problem - more of an

    inconvenience that is easily solved with the DISPLAY command.



    I say... leave it as is.  There's more important things that need attention.



  • 0 in reply to geralds

    On 13/06/16 09:41, Gerald Schwarz wrote:

    But this would be a very easy thing - smash from the component and separate properties for the characters - in the library editor.

    The hope dies at last.



    It's always such a joy to us software engineers when some random

    stranger who's never seen, let alone understood, our code comes along

    and tells us that something is "very easy". Oh yes. Such a joy.





  • 0 in reply to autodeskguest

    But this would be a very easy thing - smash from the component and separate properties for the characters - in the library editor.

    The hope dies at last.



    Gerald

    ---

  • 0

    This is a question that is asked from time to time.

    Currently Eagle cannot do it.



    HTH

    Warren

    --
