Hello,

is it possible to draw a rectangle with a given name?

And all parts, which are inside this rectangle, I need in ULP.

Example:

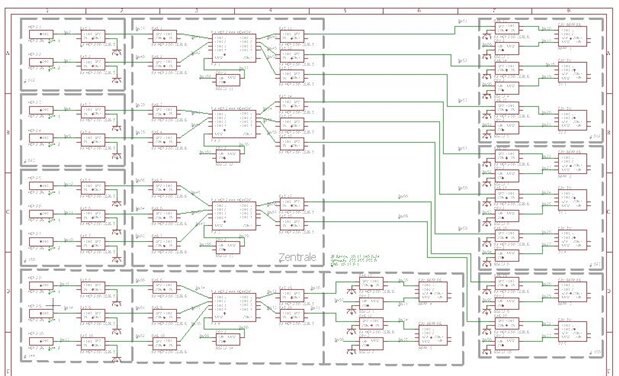

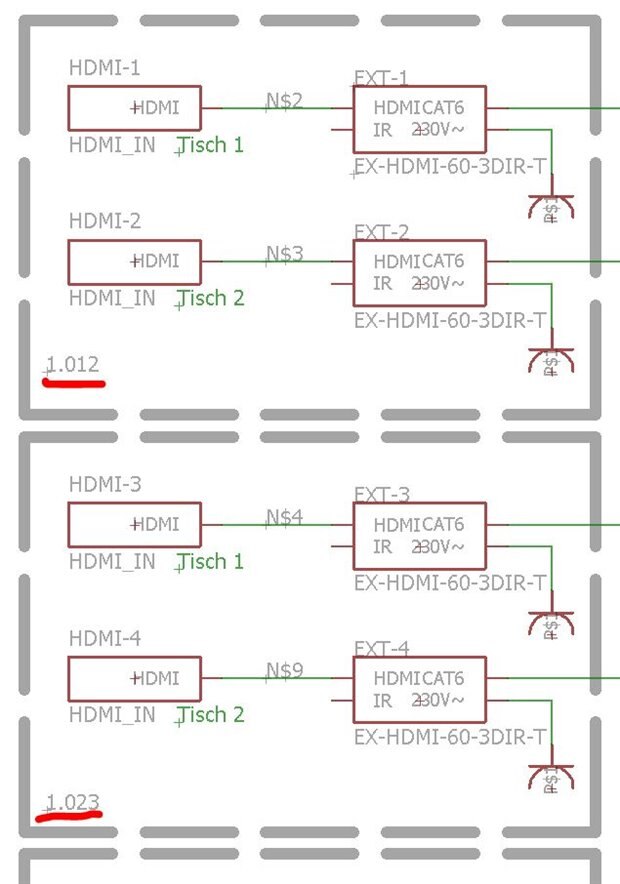

I draw HDMI and LAN connections with Eagle. The parts should be placed in "rooms". In the example "1.012 and 1.023.

Now i need in ULP for each part the "room" name.

EXT-1 is in room 1.012 (for example)

So how can I draw areas/rectangles/... which I can check via ULP, which parts are inside?

Have someone an idea?

Thank you!

Top Replies

rachaelp over 8 years ago in reply to fohnbit +1

Look at UL_INSTANCE. You should be able to loop through all the instances of parts to find all the x/y positions and assign them to rooms.
fohnbit over 8 years ago in reply to rachaelp +1

Thanks, it works!

Parents

rachaelp over 8 years ago

How about using modules?

You could create a module for a room type. Then identical rooms could be instantiations of the same module, different rooms would be a different module. All rooms would have have all their instances prefixed with the module ID. You could then use this information in your ULP somehow to extract the information you need with the desired structure.

Best Regards,

Rachael
