I made an Object Oriented library that supports handling PIO interrupts with C++ objects.
Goal: let a PIO state machine call the very C++ object that can manage (or watch) that particular event.

Write a handler class

You have to write a class that will react on the PIO interrupt. In the stepper motor scenario, this could be the same class that controls all aspects of a stepper motor. In my example here, it is a very small class that will count how many times it got invoked, and prints that:

struct dummy_handler {

    dummy_handler(PIO pio, uint sm) : pio(pio), sm(sm), counter(0) {}

    PIO pio;
    uint sm;

    inline void operator()() {
        counter += 1;
        printf("PIO %d SM %d: %d\n", PIO_NUM(pio), sm, counter);
    }

private:
    volatile uint counter;
};

This is obviously a demo design. I have given it attributes to hold state machine and PIO. That's not a requirement, just used to print meaningful info.

The only mandatory part is the void operator()().

Define the interrupt manager for your design

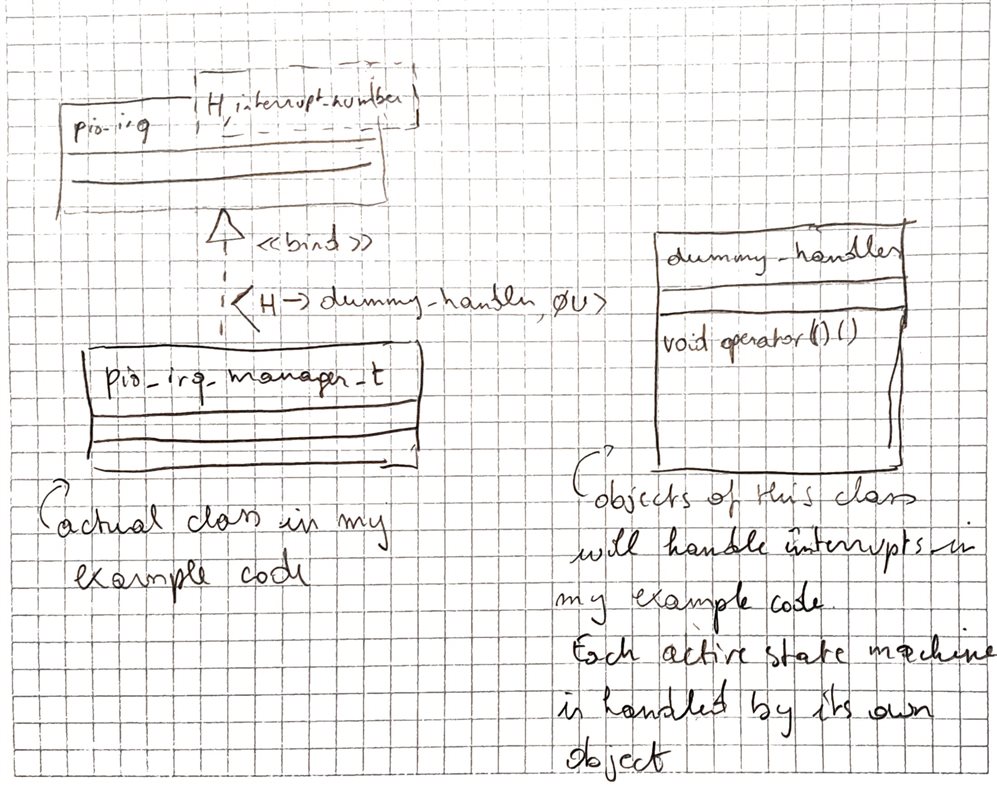

Easy :). We just need to create a type that knows what handler type and what interrupt number we're servicing.

using pio_irq_manager_t = pio_irq::pio_irq<handler_t, IRQ_NUM>;

That's really all there is to it. You don't have to (in fact: can't) create an object of this class. You can directly use it.

Example:

// ...

pio_irq_manager_t::register_interrupt(0, h.pio, h.sm, true);

pio_irq_manager_t::register_handler(h.pio, h.sm, &h, true);

// ...

You don't have permission to edit metadata of this video.

Edit media

Dimensions x Small Medium Large Custom

Subject (required) Brief Description Tags (separated by comma) Video visibility in search results Visible Hidden

Parent content

OO Library to handle Pico PIO relative interrupts: usage and example OO Library to handle Pico PIO relative interrupts: library design

Poster

Upload Preview

Ok

Cancel

Real Example

I wrote a simple PIO program, that just fires an interrupt 0 every second. It's Raspberry's Pico PIO blink example. Instead of blinking, it shoots the interrupt after it completes a loop (line 11).

.program run
    pull block
    out y, 32
.wrap_target
    mov x, y [1]
lp1:
    jmp x-- lp1   ; Delay for (x + 1) cycles, x is a 32 bit number
    mov x, y [1]
lp2:
    jmp x-- lp2   ; Delay for the same number of cycles again
    irq 0 rel     ; 20250824 jc throw a relative interrupt
.wrap             ; run forever!

I use a Pico2 with 3 PIOs. Because this is a demo, I use each available state machine: 3 PIOs x 4 state machines is 12 state machines. So I instantiate 12 handler objects. I use an array to store them, making the code easier. But that's not needed. You could just create 12 individual object if that suits your design better:

const uint32_t IRQ_NUM = 0U;

using handler_t = dummy_handler::dummy_handler;

std::array<handler_t, 4 * NUM_PIOS> handlers {{
    {pio0, 0}, {pio0, 1}, {pio0, 2}, {pio0, 3},
    {pio1, 0}, {pio1, 1}, {pio1, 2}, {pio1, 3},
    {pio2, 0}, {pio2, 1}, {pio2, 2}, {pio2, 3}
}};

We use the library to enable the interrupt for each of the handlers. In your design; you do that after programming the PIO(s). I left that out of the snippet below, but the attached project has that code.

using pio_irq_manager_t = pio_irq::pio_irq<handler_t, IRQ_NUM>;


int main()
{
    // ... program the PIO first
    // ...

    for (auto &h: handlers) {
        pio_irq_manager_t::register_interrupt(0, h.pio, h.sm, true);
    }

You can see the advantage of placing all handlers in a container here. They are stored in an organised way, and we can register all interrupts in a simple loop.

Then we register the handlers to the library. Once all is enabled, the operator()() will be called when a PIO state machine arrives at line 11 of its little program.

    for (auto &h: handlers) {
        pio_irq_manager_t::register_handler(h.pio, h.sm, &h, true);
    }

    // ... enable each state machine
    // ...

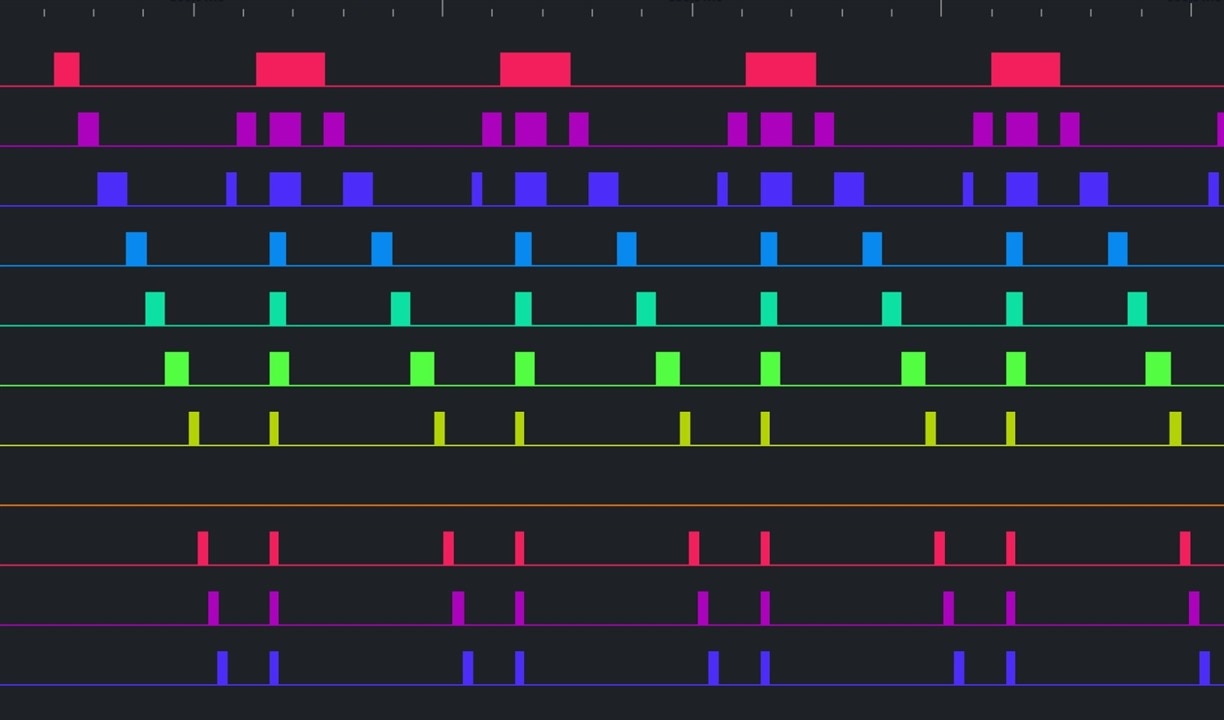

As soon as the SMs are enabled and the handlers registered, the mechanism is active. You can see a snippet of the output here.

Each registered object gets called when its state machine fired interrupt 0. And executes the code of operator()().In this little, that is: increase counter, print message:

    inline void operator()() {
        counter += 1;
        printf("PIO %d SM %d: %d\n", PIO_NUM(pio), sm, counter);
    }

The attached archive has the code of the library and the example. It's a VSCode Pico Extension project, configured for Pico2 / RISCV. You can alter the settings with the Pico extension.

If you select a Pico1, it 'll use the 8 state machines of PIO 0 and 1 only (because the Pico1 has 1 PIO less than the Pico2. Try it!

pio_relative_interrupt_20250826.zip

In the next post, I'll review the library's design and code:  OO Library to handle Pico PIO relative interrupts: library design
