Simple din rail housing for Pi zero

6 Aug 2016

Hi,

I want to introduce a new enclosure project for the Pi Zero. It's a new din rail housing and protoboard with integrated voltage regulator.

Project home page

Top Comments

hwhardsoft over 6 years ago

We've changed the board to a full THT design. Furthermore the voltage regulator is stronger now:
- Cancel
- Vote Up 0 Vote Down
- Sign in to reply
- More
- Cancel
hwhardsoft over 7 years ago

now also available with transparent lid in the top shell
- Cancel
- Vote Up +2 Vote Down
- Sign in to reply
- More
- Cancel
hwhardsoft over 7 years ago

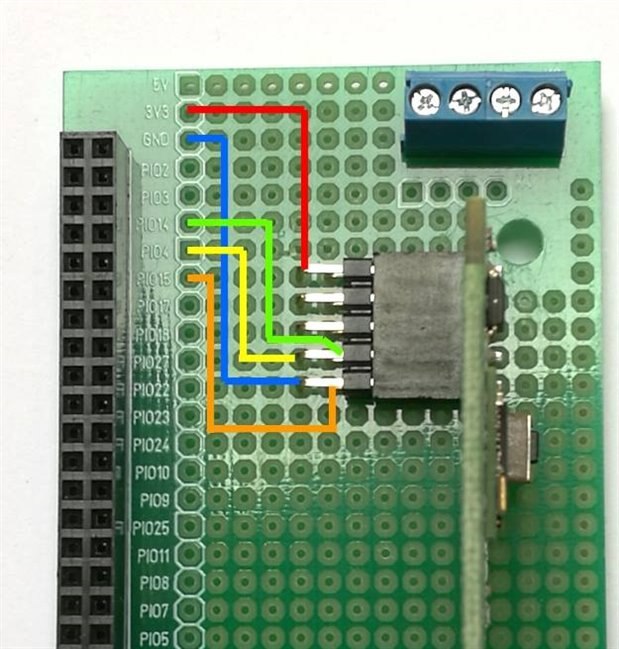

that was exactely the idea behind this enclosure set. You can integrate other ciruits or boards together with a Pi_Zero (W) on a din rail.... Here another example with a Homematic IO-Module for the Homematic wireless automation system (very popular in Germany): The module represents 4 buttons with 2 rockers. IT's easy to control the "rockers" via the GPIOs of the Pi-Zero...
- Cancel
- Vote Up +3 Vote Down
- Sign in to reply
- More
- Cancel
balearicdynamics over 7 years ago

Interesting the integration of the two boards. In a general view, IMHO, the interesting aspect is that this can be considered also a good prototyping platform. Is possible to provide the rail base supporting the PI-Zero with custom PCB ? I think that an option of this kind opens a lot of possibilities for derived specific products for industrial or home automation.
- Cancel
- Vote Up 0 Vote Down
- Sign in to reply
- More
- Cancel
hwhardsoft over 7 years ago

we've tested the integration of Razberry module (enables Z-Wave wireless protocol) in our RasPiBox Zero din rail enclosure for Pi Zero. It's a little bit more tricky but it works.
- Cancel
- Vote Up +1 Vote Down
- Sign in to reply
- More
- Cancel
