SmartiPi NoIR Thermal Camera

Parts List

Raspberry Pi 3

http://www.newark.com/raspberry-pi/raspberrypi3-modb-1gb/sbc-raspberry-pi-3-mod-b-1gb-ram/dp/77Y6520

Raspberry Pi 7" Touch Screen Display

http://www.newark.com/raspberry-pi/raspberrypi-display/display-7-touch-screen-rpi-sbc/dp/49Y1712

SmartiPi Touch Case for Raspberry Pi Touchscreen Case - Smooth Version

http://www.newark.com/smarticase/smtnl/smartipi-touch-case-for-raspberry/dp/31AC4126

https://www.adafruit.com/product/3187

SmartiPi Touch Case for Raspberry Pi Touchscreen - LEGO Version

http://www.newark.com/smarticase/smtyl/smartipi-touch-case-for-raspberry/dp/31AC4127

https://www.adafruit.com/product/3576

SmartiPi Touch Back Cover - Large

https://www.adafruit.com/product/3570

Aluminum Heat Sink for Raspberry Pi 3 - 15 x 15 x 15mm

https://www.adafruit.com/product/3082

Adafruit AMG8833 IR Thermal Camera Breakout

https://www.adafruit.com/product/3538

Miniature 5V Cooling Fan for Raspberry Pi

https://www.adafruit.com/product/3368

Raspberry Pi 8MP Camera Board v2

http://www.newark.com/raspberry-pi/rpi-8mp-camera-board/camera-board-8-mp-raspberry-pi/dp/77Y6521

Raspberry Pi 8MP NoIR Camera Board v2

http://www.newark.com/raspberry-pi/rpi-noir-camera-board/camera-board-8-mp-raspberry-pi/dp/77Y6522

Power Supply White Raspberry Pi Micro USB 5.1V 2.5A

http://www.newark.com/stontronics/t5875dv/psu-raspberry-pi-5v-2-5a-multi/dp/77Y6535

MICROSDHC CARD 32GB PRELOAD NOOBS

http://www.newark.com/integral/tsraspi10-32g/microsdhc-card-32gb-preload-noobs/dp/13AC9477

32GB SanDisk Ultra Flash Memory Card

http://www.newark.com/sandisk/sdsqunc-032g-gn6ma/32gb-sandisk-ultra-microsdhc-class/dp/31AC4045

Stellar Labs Miniature Wireless USB Keyboard with Touchpad

http://www.newark.com/stellar-lab-computer-plus/83-17317/miniature-wireless-usb-keyboard/dp/84Y8222

Software

The Raspbian Stretch Lite and Desktop Image can be found here.

https://www.raspberrypi.org/downloads/raspbian/

The Raspberry Pi 7" Display

https://www.raspberrypi.org/documentation/hardware/display/README.md

https://www.raspberrypi.org/learning/addons-guide/display/

Documentation for usage of the Pi Camera

https://projects.raspberrypi.org/en/projects/getting-started-with-picamera

Adafruit has created this amazing AMG8833 IR Thermal Camera Breakout and provided helpful code for use with Raspbian and Arduino .

https://learn.adafruit.com/adafruit-amg8833-8x8-thermal-camera-sensor

The Build

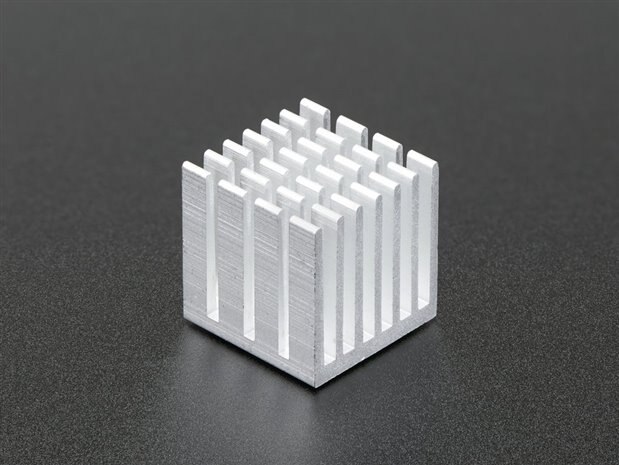

15 x 15 x 15mm Aluminum Heatsink is perfect fit for this case.

5v Fan brings cool air over the heatsink on the Broadcom BCM2837

A  piece of recycled Metal Screen protects the air inlet of the fan.

To allow hot air to escape the enclosure,  a series of exhaust ventilation holes were created.

The Pi NoIR Camera is in an Adafruit Case with a 12" CSI Ribbon Cable.

The  AMG8833AMG8833 IR Grid Eye Thermal Camera has been wrapped in High Temperature Polyimide Tape (Kapton) and secured with hot glue.

Installation of the back cover is quick and easy. The cover is secured by four screws in the VESA mounting holes.

There is still plenty of room under the back cover for additional components.

Usage

IR Thermogram Self Portrait

Raspberry Pi 3's Quad-Core 1.2GHz BCM2837 Processor.

These images were featured in the following review.

Raspberry Pi Compute Module 3 Development Kit - Review
