Which GPIOs can I use - Cirrus Card pinouts for the Extension Header and the UART Header

Raspberry Pi

Raspberry Pi Forum Which GPIOs can I use - Cirrus Card pinouts for the Extension Header and the UART Header

Join Raspberry Pi to participate - click to join for free!

Featured Articles

Actions

Forum Thread Details

Replies 1 reply
Subscribers 664 subscribers
Views 682 views
Users 0 members are here

spambake over 9 years ago

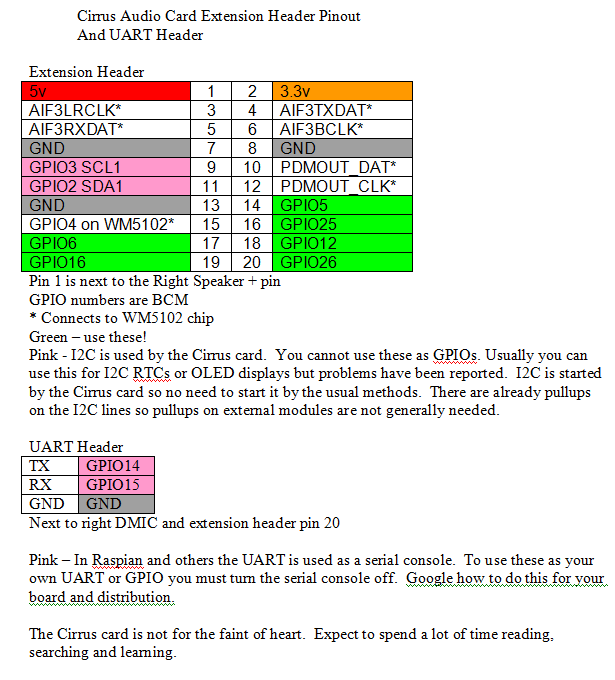

The Cirrus card has a 20 pin extension header and a three pin UART header that give access to RPI GPIOs, I2C and UART.

I had to scrape all this info together for my own projects so I thought I would share. As usual the info was buried in multiple documents and posts. Let me know if there are any corrections or additions.

marcelheijkoop over 5 years ago

Thanks ! I was looking for confirmed data on this CLAC expansion header.
And It seems you found and corrected the data from the schematics.
I just started a new thread to find this info, so Let me redirect that to this thread.

M-H
