I got myself a 7inch LCD cheap on Ebay thinking that it had a HDMI connector on it but it actually only has a ribbon connector which is described as a "LCD Interface 24-bit parallel".

7" Capacitive Touch 800*480 TFT TTL LCD Screen Display Module For HDMI | eBay

LCD Interface Definition

PIN NO. SYMBOL DESCRIPTION Type FUNCTION

1 VLED- Backlight negative input Backlight negative, connects to GND or PWM control

2 VLED+ Backlight Positive input Backlight Positive, 5V typical

3 GND Ground input Ground

4 VCC Power supply input Power supply, 3.3V

5 R0 Data lines input Red layer data lines

6 R1

7 R2

8 R3

9 R4

10 R5

11 R6

I was wondering if there was some kind of module I could get that would convert the HDMI signal back to the LCD signal. Any suggestions what to search for?

Parents

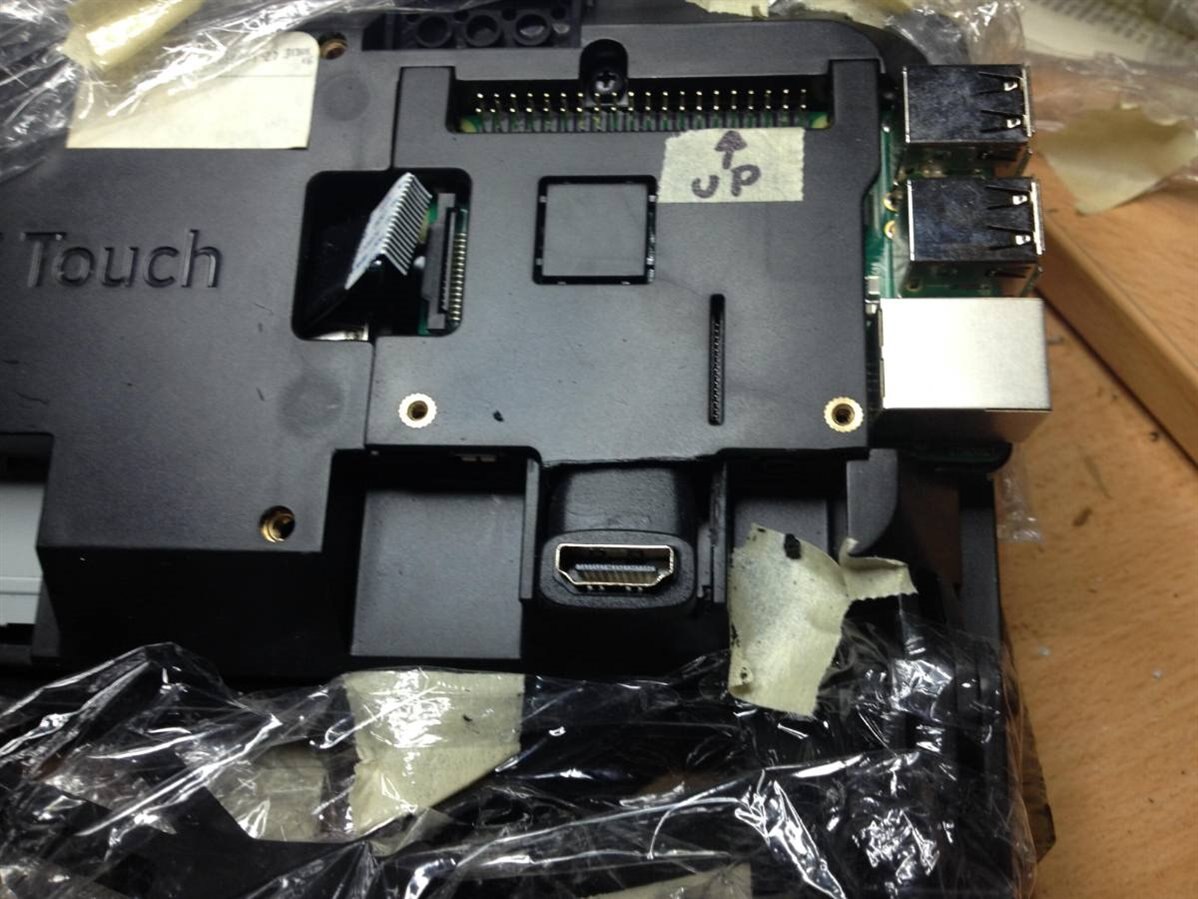

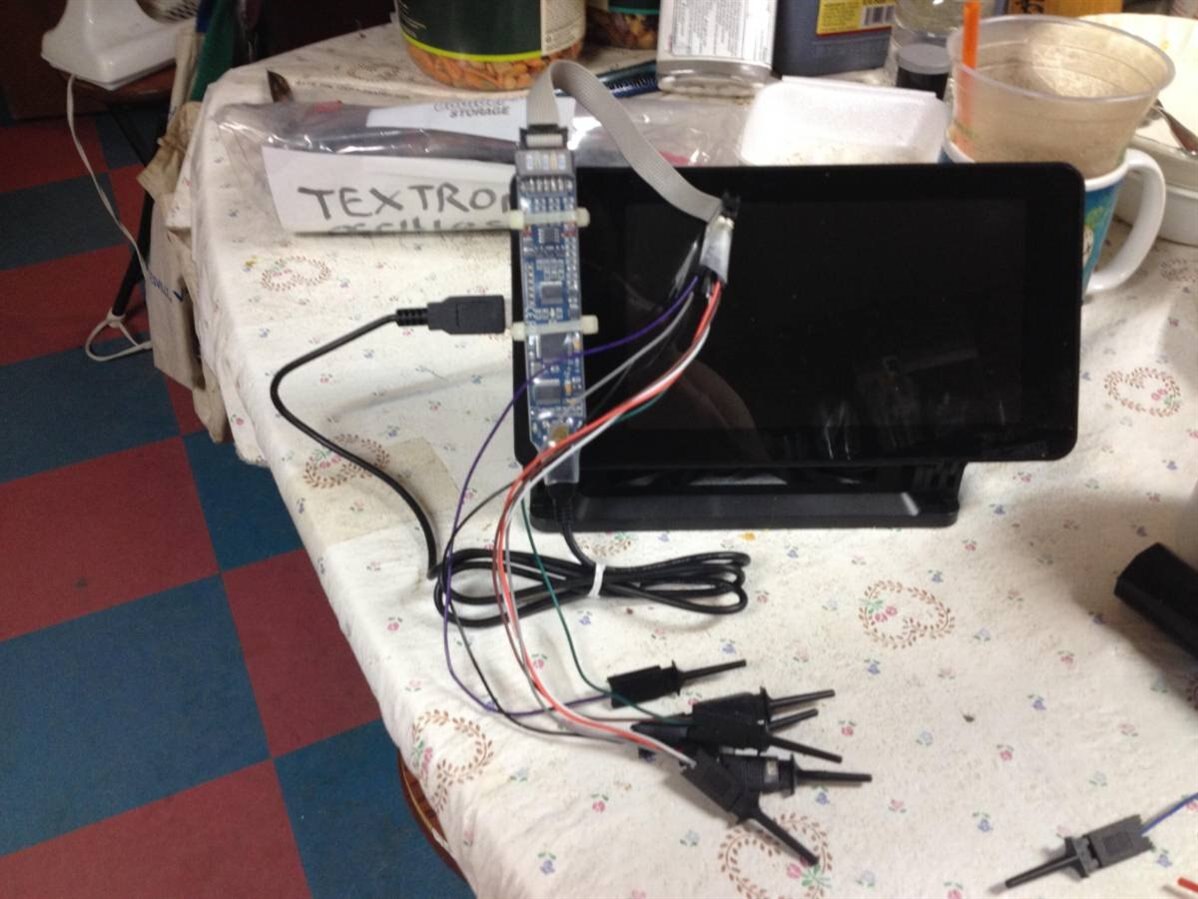

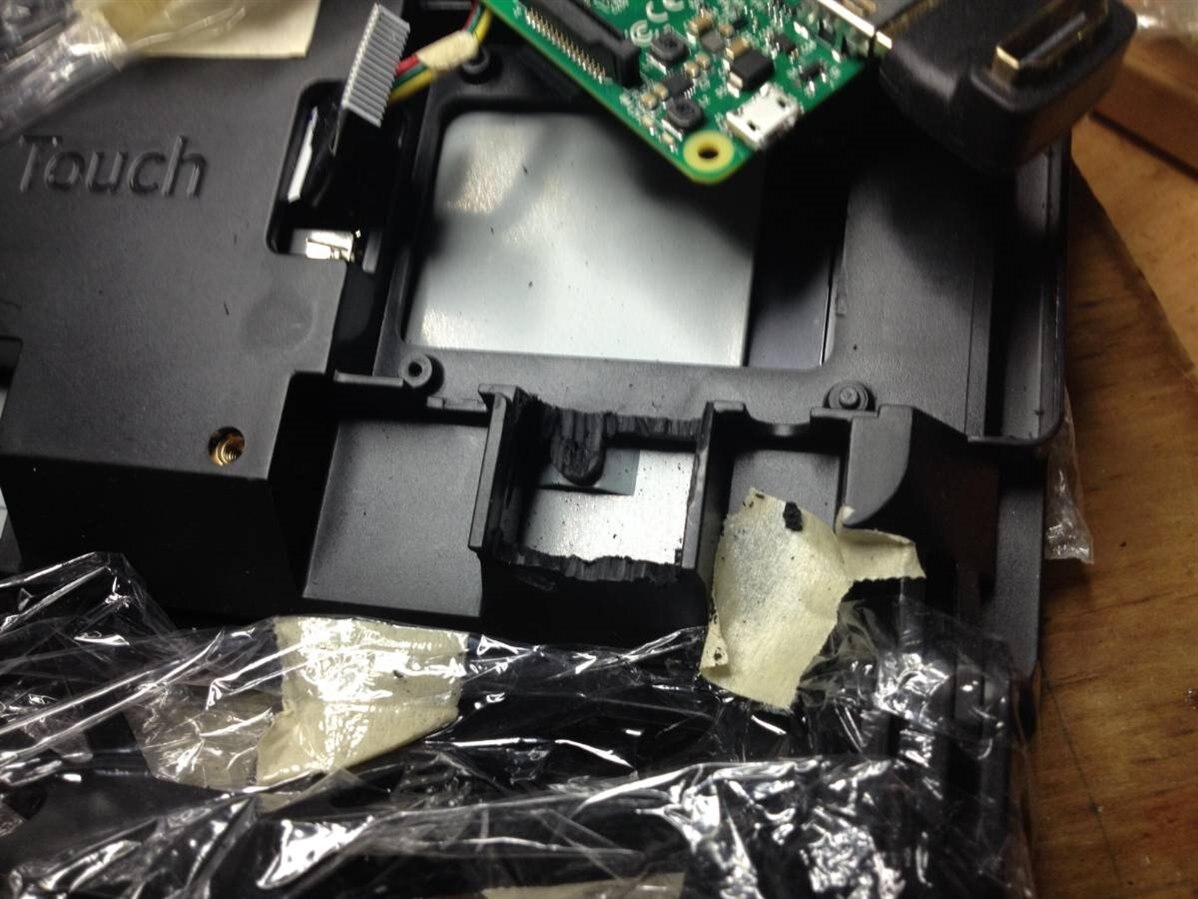

the-dubster over 9 years ago

For what it's worth (probably nothing).

Key Parameters
LCD Type TFT
LCD Interface 24-bit parallel
Touch Screen Interface 4 wires, capacitive
Touch Controller FT5206GE1
Backlight LED
Display Size (mm) 154.08 (W) 85.92 (H)
Dot Pitch (mm) 0.0642 (W) 0.1790 (H)
Aspect Ratio 8 : 5
Resolution 800 * 480 (Pixel)
Power Consumption TBD
Backlight Current TBD
Operating Temp. TBD

Capacitive Touch Screen Interface Definition
PIN NO. SYMBOL DESCRIPTION Type FUNCTION
1 CAP_INT Interrupt input External touch interrupt control input
2 CAP_WAKE WAKEUP input Used to awake the external TP controller
3 I2C_SDA I2C data pin output/input Read/Write I2C data
4 I2C_SCL I2C clock pin input Control I2C clock

LCD Interface Definition
PIN NO. SYMBOL DESCRIPTION Type FUNCTION
1 VLED- Backlight negative input Backlight negative, connects to GND or PWM control
2 VLED+ Backlight Positive input Backlight Positive, 5V typical
3 GND Ground input Ground
4 VCC Power supply input Power supply, 3.3V
5 R0 Data pin input Red data
6 R1
7 R2
8 R3
9 R4
10 R5
11 R6
12 R7
13 G0 Data pin input Green data
14 G1
15 G2
16 G3
17 G4
18 G5
19 G6
20 G7
21 B0 Data pin input Blue data
22 B1
23 B2
24 B3
25 B4
26 B5
27 B6
28 B7
29 GND Ground input GND
30 DCLK LCD clock input LCD clock signal
31 DISP Enable backlight control input Typically connects to VCC
32 HSYNC Horizontal Synchronization input Horizontal synchronous signal input
33 VSYNC Vertical Synchronization input Vertical synchronous signal input
34 DE Control mode selection input DE = 0 : SYNC mode
DE = 1 : DE mode
35 NC
36 GND Ground input GND
37 X+ - - NC
38 Y- - - NC
39 X- - - NC
40 Y+ - - NC
Cancel
Vote Up +3 Vote Down

Sign in to reply

Cancel

Reply

the-dubster over 9 years ago

For what it's worth (probably nothing).

Key Parameters
LCD Type TFT
LCD Interface 24-bit parallel
Touch Screen Interface 4 wires, capacitive
Touch Controller FT5206GE1
Backlight LED
Display Size (mm) 154.08 (W) 85.92 (H)
Dot Pitch (mm) 0.0642 (W) 0.1790 (H)
Aspect Ratio 8 : 5
Resolution 800 * 480 (Pixel)
Power Consumption TBD
Backlight Current TBD
Operating Temp. TBD

Capacitive Touch Screen Interface Definition
PIN NO. SYMBOL DESCRIPTION Type FUNCTION
1 CAP_INT Interrupt input External touch interrupt control input
2 CAP_WAKE WAKEUP input Used to awake the external TP controller
3 I2C_SDA I2C data pin output/input Read/Write I2C data
4 I2C_SCL I2C clock pin input Control I2C clock

LCD Interface Definition
PIN NO. SYMBOL DESCRIPTION Type FUNCTION
1 VLED- Backlight negative input Backlight negative, connects to GND or PWM control
2 VLED+ Backlight Positive input Backlight Positive, 5V typical
3 GND Ground input Ground
4 VCC Power supply input Power supply, 3.3V
5 R0 Data pin input Red data
6 R1
7 R2
8 R3
9 R4
10 R5
11 R6
12 R7
13 G0 Data pin input Green data
14 G1
15 G2
16 G3
17 G4
18 G5
19 G6
20 G7
21 B0 Data pin input Blue data
22 B1
23 B2
24 B3
25 B4
26 B5
27 B6
28 B7
29 GND Ground input GND
30 DCLK LCD clock input LCD clock signal
31 DISP Enable backlight control input Typically connects to VCC
32 HSYNC Horizontal Synchronization input Horizontal synchronous signal input
33 VSYNC Vertical Synchronization input Vertical synchronous signal input
34 DE Control mode selection input DE = 0 : SYNC mode
DE = 1 : DE mode
35 NC
36 GND Ground input GND
37 X+ - - NC
38 Y- - - NC
39 X- - - NC
40 Y+ - - NC
