IOT CONNECTION ISSUE

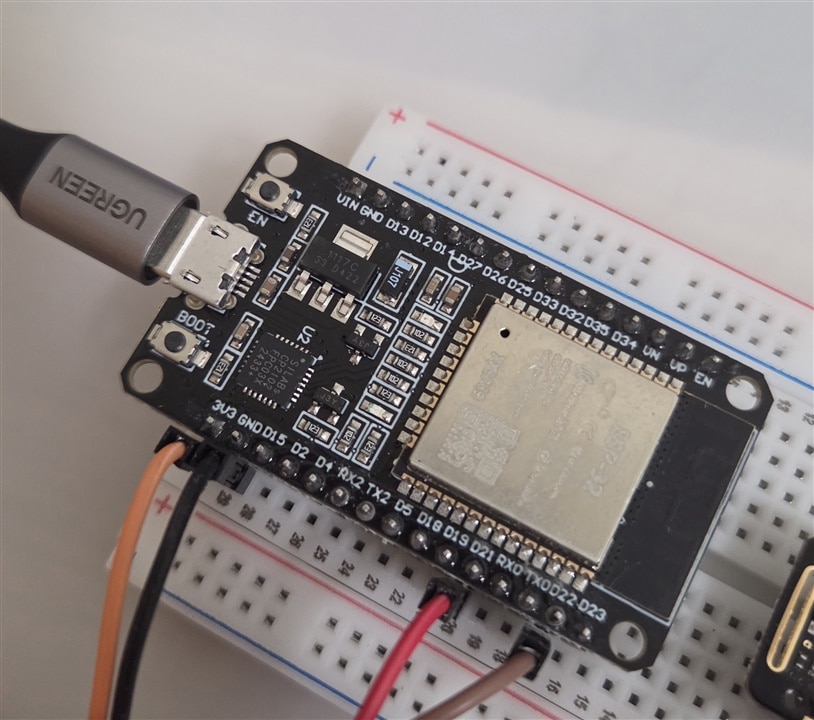

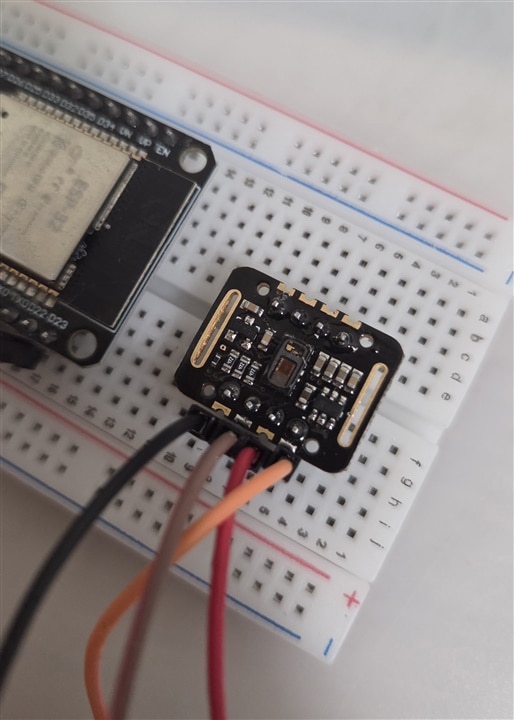

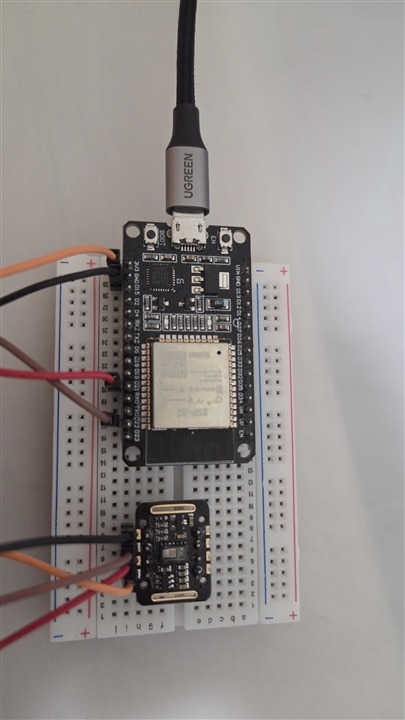

Hii, may I ask if there might be any connection error between my ESP32 and MAX30102? I used male-to-male jumper wires to connect them, but it seems like the ESP32 still cannot detect the MAX30102 sensor. Does anyone know what could be the issue? Thank you.

Top Replies

shabaz 1 day ago +1

Your connections locations look fine to me, perhaps it is a software issue. There's also a chance it could be a breadboard or jumper wire quality issue. Ideally you'd use an oscilloscope to check that…

0 shabaz 1 day ago

Your connections locations look fine to me, perhaps it is a software issue. There's also a chance it could be a breadboard or jumper wire quality issue.

Ideally you'd use an oscilloscope to check that you can see I2C data is occurring or not. A logic analyser could be used, but better to start with an oscilloscope and examine the supply, SDA and SCL lines.

Without an oscilloscope, I think the best you can do is swap out the jumper cables in case they are faulty, and maybe try a new breadboard unless you know you can trust it (some of the very cheap ones have poor non-nickel-plated contacts for instance), and double-check the code to try to get confdence that I2C is functioning.
Cancel
Vote Up +1 Vote Down

Sign in to reply

Verify Answer

Cancel
0 obones 1 day ago

Without the code you are running on the ESP32, it's hard to tell.
I mean, it could either be a faulty connection, or a faulty setup code inside the ESP32
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
0 SamanthaCh 6 hours ago in reply to shabaz

Thanks very much, I solved it. It was a wiring issue.
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
0 SamanthaCh 6 hours ago in reply to obones

Thank you very much, it was a wiring connection issue.
