Programmable Electronic Load - UART

This blog documents focuses on the UART approach for the electronic load that Robert Peter Oakes, jc2048 and Jan Cumps designed. UART combined with SCPI are the programming interface for the instruments.

UART

Info: initial design used UART1 as 2nd option. When switching to the Red MSP432 LaunchPad, this switched to UART6.

Where you see UART1, think UART6.

UART module if USB UART0

9600/8/1/N

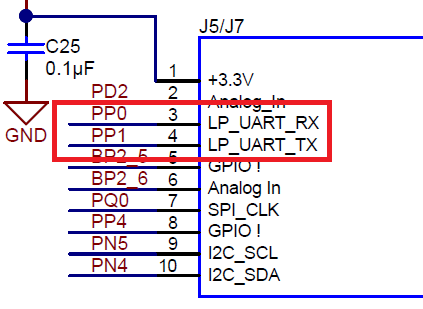

UART module if TTL UART6

115200/8/1/N

The project uses uses the TI-RTOS UART driver.

Buffered output for transmit

Interrupt driven for receive, wake up RTOS task (with semaphore) whenever a character arrives on the Rx line.

void *threadUART(void *arg0)
{
    char        input;
    UART_Params uartParams;
    int iError;

    /* Call driver init functions */
//    GPIO_init();
    UART_init();

    /* Configure the LED pin */
    GPIO_setConfig(Board_GPIO_LED0, GPIO_CFG_OUT_STD | GPIO_CFG_OUT_LOW);

    /* Create a UART with data processing off. */
    UART_Params_init(&uartParams);
    uartParams.writeDataMode = UART_DATA_BINARY;
    uartParams.readDataMode = UART_DATA_BINARY;
    uartParams.readReturnMode = UART_RETURN_FULL;
    uartParams.readEcho = UART_ECHO_OFF;
//    uartParams.baudRate = 9600;
    uartParams.readMode = UART_MODE_CALLBACK; // the uart uses a read interrupt
//    uartParams.readCallback = &UART00_IRQHandler; // function called when the uart interrupt fires

#ifdef SCPI_UART_0
    uartParams.baudRate = 9600;
    uartParams.readCallback = &UART00_IRQHandler; // function called when the uart interrupt fires
    uart = UART_open(Board_UART0, &uartParams);
#else
#ifdef SCPI_UART_6
    uartParams.baudRate = 115200;
    uartParams.readCallback = &UART00_IRQHandler; // function called when the uart interrupt fires
    uart = UART_open(Board_UART6, &uartParams);
#else
#error "define a valid UART"
#endif
#endif

    if (uart == NULL) {
        /* UART_open() failed */
        while (1);
    }

The interrupt is very simple. It posts a semaphore to flag our UART task that we have a character on the receive line.

void UART00_IRQHandler(UART_Handle handle, void *buffer, size_t num)
{
    sem_post(&SEM_uart_rx);
}

There are 2 touchpoints with the SCPI interpreter. UART module knows about SCPI lib. SCPI is UART-unaware.

• initialises the SCPI lib (is that smart? *) with scpi_instrument_init() edit: moved to main().
• each character received directly sent to SCPI lib with scpi_instrument_input().

    while (1) {
        UART_read(uart, &input, 1);
        iError = sem_wait(&SEM_uart_rx); // when a character is received via UART, the interrupt handler will release the binary semaphore
        while (iError) {
            // POSIX reported error with semaphore. Can't recover.
        }
        // in my case: I get an interrupt for a single character, no need to loop.
        GPIO_toggle(Board_GPIO_LED1); // LED B - visual clue that we've received a request over USB
        scpi_instrument_input((const char *)&input, 1);
        GPIO_toggle(Board_GPIO_LED1); // LED B - visual clue off
    }

• SCPI lib uses SCPI_Write() to send info to UART (although the SCPI lib isn't aware of that. The linker resolves this dependency. The only thing that the SCPI lib requires is that "there is a function named SCPI_Write()" somewhere).

size_t SCPI_Write(scpi_t * context, const char * data, size_t len) {
    (void) context;
    GPIO_toggle(Board_GPIO_LED1); // LED B - visual clue that we send a reply over USB
    UART_write(uart, data, len);
    GPIO_toggle(Board_GPIO_LED1); // LED B - visual clue offB
    return len;
}

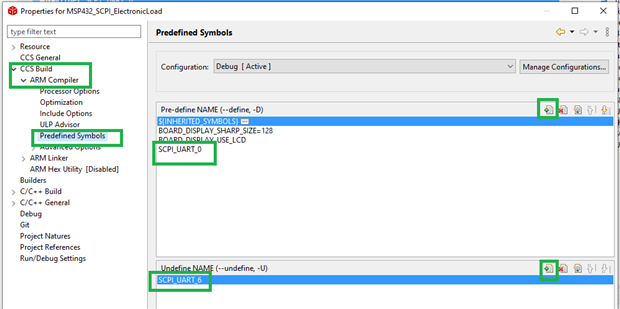

compile option to choose the UART:

SCPI_UART_0

SCPI_UART_6

Undefining SCPI_UART_6 and defining SCPI_UART_0 enables UART0 (USB debug port)

Undefining SCPI_UART_0 and defining SCPI_UART_6 enables UART6 (TTL 3V3)

It allows to select the port without code changes.

#ifdef SCPI_UART_0
    uart = UART_open(Board_UART0, &uartParams);
#else
#ifdef SCPI_UART_1
    uart = UART_open(Board_UART1, &uartParams);
#else
#error "define a valid UART"
#endif
#endif
