 | Kit Overview

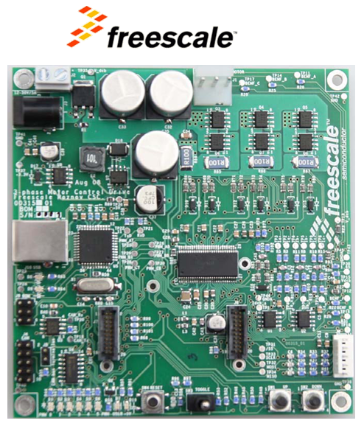

Freescale’s 3PHASELV-KIT3PHASELV-KIT 3-Phase Brushless DC (BLDC) / Permanent Magnet Synchronous Motor (PMSM) Low-Voltage Motor Control Drive creates a single unit for developing BLDC/PMSM motor control applications. With one of the available daughter boards, accommodating a selected microcontroller, it provides a ready-made, software-development platform for 12-24Vdc, 4A motors. Feedback signals are provided that allow a variety of algorithms to control 3-phase PMSM and BLDC motors.
The 3-ph Low Voltage Motor Control Kit represents a platform for motor control application development. This modular system enables the fast development of sensor / sensorless BLDC and PMSM motor applications using different controllers, starting with the HCS08, the DSC, and up to the ColdFire family. Moreover, easy porting from one controller to another, with motor control libraries support and the FreeMASTER development tool, significantly contributes towards finalization of the development far earlier than ever before.
This motor control kit is also suitable for those who want to easily learn and develop their first motor control application soon, verify existing motor control techniques, or to implement a new one.
Key Applications: BLDC motor, PMSM motor, DC motor, Automotive applications, Motor control applications | |||||||||||
| ||||||||||||
Development Tools
Software Development Tools:
| Tool Type | Supplier | MPN | Supported Family | Description |
|---|---|---|---|---|
| IDE | Freescale | CodeWarrior | All Freescale MCU's | Freescale's software and development solutions take you beyond the silicon, helping to bring your embedded applications to life. Learn More |
| RTOS | Freescale | MQX | ColdFire / HC08 / HC12 / ARM / S08 / RS08 / PowerPC | The Freescale MQX Real-Time Operating System (RTOS) provides real-time performance within a small, configurable footprint. This RTOS is designed to allow you to configure and balance code size with performance requirements. Learn More |
| RTOS | Micrium | uC/OS III | ColdFire / HC08 / HC12 / ARM / S08 / RS08 / PowerPC | μC/OS-III is Micrium’s newest RTOS, designed for developers who need to save time on their current and next embedded sytem projects. Using a commercial real-time kernel such as μC/OS-III provides a solid foundation and framework to the design engineer dealing with the growing complexity of embedded designs. Learn More |
| RTOS | Segger | embOS | ColdFire / HC08 / HC12 / ARM / S08 / RS08 | SEGGER embOS (Real Time Operating System) follows strict, yet efficient coding and documentation standards. embOS is a priority-controlled real time operating system, designed to be used as foundation for the development of embedded real-time applications. Learn More |
Hardware Development Tools:
| Tool Type | Supplier | MPN | Supported Family | Description |
|---|---|---|---|---|
| Debuggers, Emulators & JTAG Tools | Freescale | USBMULTILINKBDMEUSBMULTILINKBDME | HC08 / HCS12 / S08 / RS08 / Coldfire V1 | USB BDM Interface cable for the 68HC(S)12(X) and 68HCS08 and 68RS08 and ColdFire V1 |
| Debuggers, Emulators & JTAG Tools | Freescale | U-MULTILINKU-MULTILINK | HC08 / HCS12 / S08 / RS08 / Coldfire / Kinetis | P&E USB Multilink Universal debug and programming interface for HCS08, HC(S)12(X), ColdFire, Qorivva MPC55xx/56xx, and Kinetis |
| Debuggers, Emulators & JTAG Tools | Freescale | M68CYCLONEPROEM68CYCLONEPROE | HC08 / HCS12 / S08 / RS08 / Coldfire V1 | Hardware Debug Interface and Stand-Alone Programmer for HC08, HCS08, RS08, ColdFire V1, and HC(S)12(X) |
Technical Documents
Learning Center
Design Elements
| Type | Description |
|---|---|
| Coming soon... |
Video
Kit Features

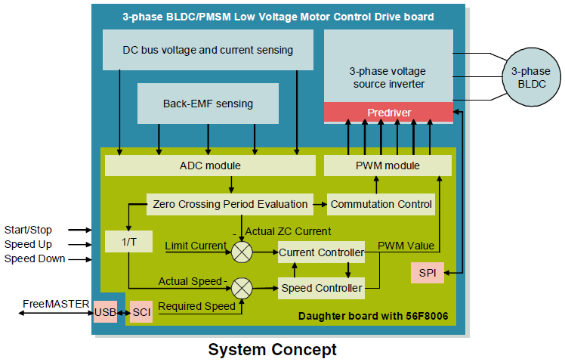

- 3-ph BLDC/PMSM Low Voltage Motor Control Drive board
- MC56F8006 MC56F8006 daughter board
- MC9S08MP16VLFMC9S08MP16VLF daughter board
- 40W BLDC motor
- Output current 4 A
- Power supply voltage input 12–24 V DC, extended up to 50 V
- 2 CDs with datasheets, reference manuals, source codes and much more
- User interface / FreeMASTER
- 3-ph MOSFET bridge inverter
- 3-ph MOSFET gate driver (MC33937)
- D.C.-bus voltage and current sensing
- BEMF voltage sensing
- Phase current sensing
- Encoder/Hall sensor sensing
- CAN physical layer
- USB interface (MC9S08JM60) for FreeMASTER
- LED indicators
- Encoder/hall sensor sensing circuitry
- 3-phase and DC-bus-current-sensing shunts
Kit Contents
The Freescale's 3PHASELV-KIT3PHASELV-KIT is supplied with below contents:
- 3PHASELV3PHASELV board
- 56F8006-3PHLVDB board
- S08MP16-3PHLVDB board
- AC/DC 24V/3A, Universal Power Supply Kit with Adapters
- 3-PH BLDC Motor
- USB 2.0 A-B TYPE CABLE, 1M
- 3-phase BLDC/PMSM Low Voltage Motor Control Kit CD - CD with documentation, source code
- 3-phase Sensorless BLCD Motor Control using Comparators on MC9S08MP16VLFMC9S08MP16VLF CD - CD with documentation, source code
