Embest: EM-LPC1700-66 Evaluation Board

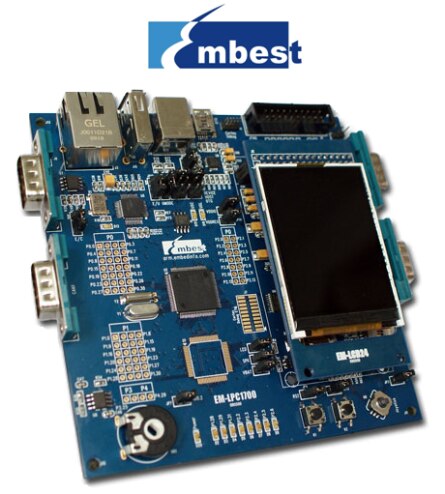

The Embest's EM-LPC1700-66EM-LPC1700-66(LPC1766) evaluation board is based on ARM Cortex-M3 processor from NXP, its operating frequency is up to 100MHz, with 256KB high-speed on-Chip Flash Memory and 64KB RAM, together with a colour QVGA LCD, Ethernet, USB, CAN, SD/MMC card interface, and UARTs. Plenty of example source code (These software examples can be debugged under the popular Keil MDK).   The Cortex-M3 based EM-LPC1700-66EM-LPC1700-66 (LPC1766) Evaluation Board can be used to generate and test application programs for the NXP LPC17xx microcontroller family. The LPC1766FBD100,551LPC1766FBD100,551 ARM Evaluation Board introduces the new NXP LPC1760 family of ARM Cortex-M3 processor-based devices, allows you to create and test working programs for this advanced architecture, it has a wide range of interfaces making it a great starting point for your next Cortex-M3 project. With this hands-on process, you can determine the hardware and software requirements for current and future product development.   The EM-LPC1700-66EM-LPC1700-66 (LPC1766FBD100,551LPC1766FBD100,551) arm Evaluation Board ships with the LPC1766 device that is a superset of several other device variants of the LPC17xx microcontroller series. The LPC1766 Board contains all the hardware components required in a single-chip LPC17xx system.   The EM-LPC1700-66EM-LPC1700-66 (LPC1766) are ARM Cortex-M3 based microcontrollers for embedded applications featuring a high level of integration and low power consumption. The ARM Cortex-M3 is a next generation core that offers system enhancements such as enhanced debug features and a higher level of support block integration.The LPC1766FBD100,551LPC1766FBD100,551 operate at CPU frequencies of up to 100 MHz. The ARM Cortex-M3 CPU incorporates a 3-stage pipeline and uses a Harvard architecture with separate local instruction and data buses as well as a third bus for peripherals. The ARM Cortex-M3 CPU also includes an internal prefetch unit that supports speculative branching.   Key Applications: eMetering, Lighting, Industrial networking, Alarm systemsn, White goods and Motor control.

More Development Kits and Tools Other Embest Development Kits Other NXP Development Kits Development Platforms & Kits element14 Knode

Development Tools

Software Development Tools:

The ARM Development Studio 5 (DS-5) tool enable developers to get the best from their ARM technology-based systems. Whether implementing an ARM processor-based SoC or writing software for an Application Specific Standard Product (ASSP), ARM tools enable you to deliver the best solution with the highest performance and lowest power. Learn More

Hardware Development Tools:

Back to top

Technical Documents

Learning Center

Design Elements

Back to top

Video

Back to top

Kit Features

Technical Specifications:

• Supply Voltage 5V DC (provided by the USB bus of a PC)
• Supply Current 65mA typical, 120mA maximum
• XTAL Frequency 12 MHz
• Microcontroller NXP LPC1766FBD100,551LPC1766FBD100,551
• 100MHz Cortex-M3, 256KB Flash,64KB SRAM
• 240x320 TFT LCD, 2.4"
• Peripherals
  • 2 x RS232 Interfaces
  •   2 x CAN Interfaces
  •   1 x Ethernet Interface
  •   1 x JTAG Interface
  •   1 x ETM Interface
  •   2 x Cortex Debug Interfaces
  •   1 x LCD Display
  •   1 x USB Device/Host/OTG Interface
  •   1 x Analog Output (connected to speaker by default)
  •   1 x Analog Input (connected to potentiometer by default)
• Board Size 119mm x 119mm (4.68 " x 4.68")

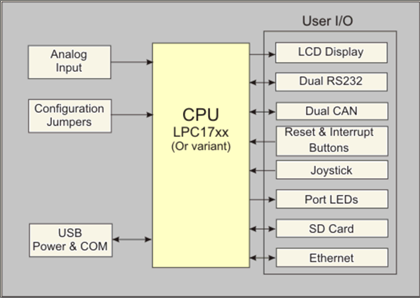

Hardware Specifications:

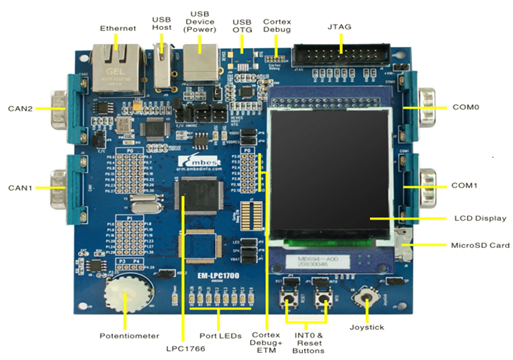

• The connectors on this LPC1766FBD100,551LPC1766FBD100,551 arm evaluation board provide easy access to many of the LPC1766's on-chip peripherals.
  • USB 2.0 Full Speed Interface
  • Standard USB connectors for USB Device, USB-OTG, USB Host and UART via USB on the LPC1766FBD100,551LPC1766FBD100,551 board for applications requiring USB communications.
  • Dual Serial Ports
  • Standard DB9 connectors are on the LPC1766FBD100,551LPC1766FBD100,551 for both of the LPC1700's serial ports. Your application may use either of these ports.
  • Dual CAN Ports
  • Standard DB9 connectors are on the LPC1766FBD100,551LPC1766FBD100,551 board for applications requiring CAN communications. Your application may use either or both of these ports, or they may be disabled with a configuration jumper.
• LCD Display
  • A detachable, 240x320 TFT, color LCD display. You may use this graphic display device to show real-time debug and program status messages.
• MicroSD Card Connector
  • A MicroSD Card connector for developing applications requiring access to MicroSD Cards.
• Joystick
  • A 5-position joystick. Your application may use this to control port pin input.
• LF Amplifier
  • An LF Amplifier on the LPC1766FBD100,551LPC1766FBD100,551 connects the D/A output of the LPC1700 device to a speaker. You may use this LF Amplifier to generate sound.
• Analog Voltage Control for ADC Input
  • An adjustable analog voltage source is on the LPC1766FBD100,551LPC1766FBD100,551 board for testing the Analog to Digital output feature of the LPC1700. A configuration jumper enables and disables this feature.
• JTAG and Cortex/ETM Download and Debug
  • The LPC1766FBD100,551LPC1766FBD100,551 arm evaluation board incorporates both a JTAG interface and a Cortex Debug + ETM interface. When coupled with the ULINK2 USB-JTAG adapter, the Serial Wire JTAG interface allows flash programming and debugging. With the ULINKPro adapter, the Cortex Debug/ETM interface allows flash programming and instruction trace debugging.

Back to top

Kit Contents

The Embest EM-LPC1700-66EM-LPC1700-66 Evaluation Board kit is supplied with the below contents:

• Embest LPC1766FBD100,551LPC1766FBD100,551 ARM-CM3 Board
• RS-232RS-232 Serial Cable / DB9 F-M  Connect the COM port to Host PC. 9-pin male to 9-pin female, no longer than 10ft/3m, wired one-to-one.
• USB Cable / A-B  To supply power to the board or for downloading and programming.
• RJ45 Ethernet Cable  Connect to the Ethernet port.
• TFT LCD Panel   QVGA(240x320)

Optional:

• CDROM (free)
  • Documents -- user manual, data sheet and the other development document.
  • Images -- image files for this product.
  • Software -- software program for this product.
  • Tools -- the utilities tools and software.
