Overview

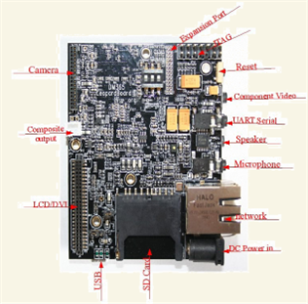

The Leopard Board 368 is an Open Source hardware project, a full featured, ultra low cost, small form factor, high performance development system which includes TMS320DM368 processor. Basically the LeopardBoard DM368 is an evaluation board that allows to get access to all the hardware and software capabilities of the TMS320DM368 Texas Instrument's system-on-chip (SoC). This SoC belongs to the DaVinci family oriented principally to multimedia applications. The board has full featured accessories which inlcudes Video input, CMOS interface, Video output, Audio In/Out, Debug Ports.
The TMS320DM368 is capable of achieving HD video processing at 1080p 30fps H.264 and is completely pin-to-pin compatible with the TMS320DM365 processors, using the same ARM926EJ-S core running at 432 MHz. This ARM9-based TMS320DM368 device supports production-qualified H.264BP/MP/HP, MPEG-4, MPEG-2, MJPEG and VC1/WMV9 codecs providing customers with the flexibility to select the right video codec for their application. These codecs run on independent coprocessors (HDVICP and MJCP) offloading all compression needs from the main ARM core. This allows developers to obtain optimal performance from the ARM for their applications, including their multi-channel, multi-stream and multi-format needs.
Video surveillance designers achieve greater compression efficiency to provide more storage without straining the network bandwidth. Developers of media playback and camera-driven applications, such as video doorbells, digital signage, digital video recorders, portable media players and more can take advantage of the low power consumption and can ensure interoperability, as well as product scalability by taking advantage of the full suite of codecs supported on the TMS320DM368.
LI-LBCMVGA Leopard Imaging provides VGA camera Board, which has VGA resolution compact size modules on board. It features:
- Sensor: Micron/Aptina 1/11“ CMOS Sensor MT9V113
- # of Pixels: VGA (648 x 488 pixels)
- Output Data Format: YUV (YCbCr)
- Optical Filter: Infrared Coating at 650nm+/-10nm
- Focal Length, F#: f=1.34+/-0.1mm, F2.8+/-5%
- Vertical View Angle: 660
- Focus Distance: 40cm+/-2cm
- Focus Range: 20cm to Infinity
- RoHS Compliance
Ordering Information:
| MPN | Description |
|---|---|
| LI-TB02 | LI-TB02 Leopardboard 368 |
| LI-LBCMVGA | LI-LBCMVGA VGA Camera Board for Leopardboard (Should be purchased separately) |
Key Applications: Video doorbells, Digital signage, Digital video recorders, Portable media players.
Development Tools
Software Development Tools:
| Tool Type | Supplier | MPN | Supported Family | Description |
|---|---|---|---|---|
| IDE | Texas Instruments | Code Composer Studio (CCStudio) | TI ARM MCUs | CCStudio is an integrated development environment (IDE) for TI embedded processor families. CCStudio comprises a suite of tools used to develop and debug embedded applications. It includes compilers for each of TI's device families, source code editor, project build environment, debugger, profiler, simulators, real-time operating system and many other features. Learn More |
| IDE | ARM | Keil MDK-ARM | ARM Cortex -M / Cortex-R4 / ARM7 / ARM9 | The MDK-ARM is a complete software development environment for Cortex-M, Cortex-R4, ARM7 and ARM9 processor-based devices. MDK-ARM is specifically designed for microcontroller applications, it is easy to learn and use, yet powerful enough for the most demanding embedded applications. Learn More |
Hardware Development Tools:
| Tool Type | Supplier | MPN | Supported Family | Description |
|---|---|---|---|---|
| Emulator / Debugger / Programmer | ARM | ULINK2 | ARM Cortex-M / ARM7 / ARM9 | ULINK2 Debug Adapter |
| Emulator / Debugger / Programmer | ARM | ULINKPro | ARM Cortex-M / ARM7 / ARM9 | ULINKpro Debug and Trace Unit |
| Emulator | Segger | J-Link | ARM Cortex-M / Cortex-R4 / ARM7 / ARM9 | JTAG/SWD Emulator with USB interface |
| Programmer | Segger | Flasher ARM | ARM Cortex-M / Cortex-R4 / ARM7 / ARM9 | Flash Programmer for ARM and Cortex cores |
Technical Documents
Learning Center
Design Elements
| Type | Description |
|---|---|
| Schematics | Leopard Imaging: Schematics of LI-TB02 |
| Simulation Model | TI: DM368 ZCE IBIS Model (Rev. A) |
| Simulation Model | TI: DM368 ZCE BSDL Model |
Video
Kit Features
- High-Performance Digital Media System-on-Chip (DMSoC)
- 432-MHz ARM926EJ-S Clock Rate
- Two Video Image Co-processors (HDVICP, MJCP) Engines
- Supports a Range of Encode, Decode and Video Quality Operations
- Video Processing Subsystem
- HW Face Detect Engine
- Resize Engine from 1/16x to 8x
- 16-Bit Parallel AFE (Analog Front-End) Interface Up to 120 MHz
- 4:2:2 (8-/16-bit) Interface
- 8-/16-bit YCC and Up to 24-Bit RGB888 Digital Output
- 3 DACs for HD Analog Video Output
- Hardware On-Screen Display (OSD)
- Capable of 1080p 30fps H.264 video processing
- Peripherals include EMAC, USB 2.0 OTG, DDR2/NAND, 5 SPIs, 2 UARTs, 2 MMC/SD/SDIO, Key Scan
- 8 Different Boot Modes and Configurable Power-Saving Modes
- Pin-to-pin and software compatible with DM365
- Extended temperature (-40°C - 85°C) available
- 3.3-V and 1.8-V I/O, 1.35-V Core
Kit Contents
- Leopardboard 368 board
 |  |  |
