Microchip: DM330023 dsPICDEM MCHV Development Board

Buy NowBuy Now

Kit Overview

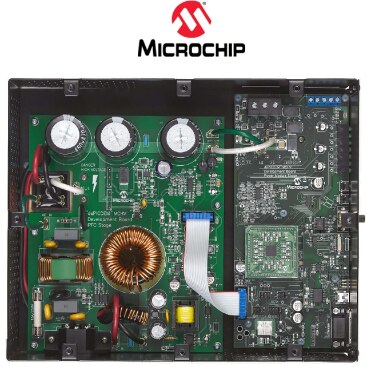

The Microchip's DM330023DM330023 dsPICDEM MCHV Development System is intended to aid the user in the rapid evaluation and development of a wide variety of motor control applications using a dsPIC Digital Signal Controller (DSC). This development system is targeted to control Brushless DC (BLDC) motors, Permanent Magnet Synchronous Motors (PMSM), and AC Induction Motors (ACIM) in sensor or sensorless operation.

This flexible and cost-effective tool can be configured in different ways for use with Microchip’s specialized motor control DSCs. The dsPICDEM MCHV Development System supports the dsPIC33F Motor Control device family and offers a mounting option to connect either a 28-pin SOIC device or a generic 100-pin Plug-In Module (PIM).

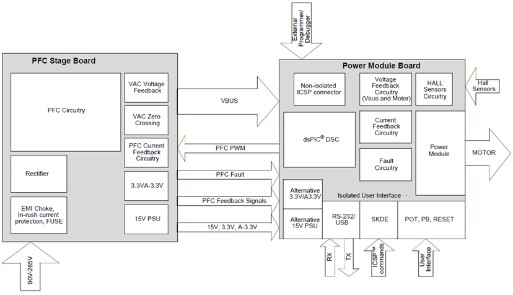

The Microchip's DM330023DM330023 system has a three-phase power module device that contains the motor inverter and the gate driver’s circuitry. The circuit drives a BLDC, PMSM, or ACIM motor using different control techniques without requiring any additional hardware. It also has Power Factor Correction (PFC) circuitry to meet power regulatory requirements.

The rated continuous output current from the inverter is 6.5A (RMS). This allows up to approximately 2 kVA output when running from a 208V to 230V single-phase input voltage in a maximum 30ºC (85ºF) ambient temperature environment. Therefore, the system is ideally suited for running a standard 3-Phase Induction Motor of up to 1.4 kW (1.8 HP) rating or a slightly higher rated industrial servo-motor. The power module is capable of driving other types of motors and electrical loads that do not exceed the maximum power limit and are predominantly inductive. Furthermore, single-phase loads can be driven using one or two of the inverter outputs. The unit is capable of operating from 90V up to a maximum of 265V.

Key Applications: Motor Control applications

More Development Kits and Tools
	Microchip Development Kits		Microchip Development Tools
	Development Platforms & Kits		element14 Knode

Development Tools

Software Development Tools:

Tool Type	Supplier	MPN	Supported Family	Description
IDE	Microchip	MPLAB IDE	PIC/dsPIC	MPLAB IDE for all Microchip platforms. Learn More
RTOS	Micrium	uC/OS III	PIC24, dsPIC33, PIC32 (MIPS)	μC/OS-III is Micrium’s newest RTOS, designed for developers who need to save time on their current and next embedded sytem projects. Using a commercial real-time kernel such as μC/OS-III provides a solid foundation and framework to the design engineer dealing with the growing complexity of embedded designs. Learn More
RTOS	Segger	embOS	PIC18/PIC24F/PIC24H	SEGGER embOS (Real Time Operating System) follows strict, yet efficient coding and documentation standards. embOS is a priority-controlled real time operating system, designed to be used as foundation for the development of embedded real-time applications. Learn More

Tool Type

Supplier

MPN

Supported Family

Description

IDE

Microchip

MPLAB IDE

PIC/dsPIC

MPLAB IDE for all Microchip platforms. Learn More

RTOS

Micrium

uC/OS III

PIC24, dsPIC33, PIC32 (MIPS)

μC/OS-III is Micrium’s newest RTOS, designed for developers who need to save time on their current and next embedded sytem projects. Using a commercial real-time kernel such as μC/OS-III provides a solid foundation and framework to the design engineer dealing with the growing complexity of embedded designs. Learn More

RTOS

Segger

embOS

PIC18/PIC24F/PIC24H

SEGGER embOS (Real Time Operating System) follows strict, yet efficient coding and documentation standards. embOS is a priority-controlled real time operating system, designed to be used as foundation for the development of embedded real-time applications. Learn More

Hardware Development Tools:

Tool Type	Supplier	MPN	Supported Family	Description
Debuggers, Emulators & JTAG Tools	Microchip	DV244005DV244005	PIC/dsPIC	MPLAB REAL ICE In-Circuit-Emulator
Debuggers, Emulators & JTAG Tools	Microchip	DV164035DV164035	PIC/dsPIC	MPLAB ICD 3 In-Circuit-Debugger
Debuggers, Emulators & JTAG Tools	Microchip	PG164130PG164130	PIC/dsPIC	MPLAB PICkit 3 Debugger Programmer

Technical Documents

Learning Center

Type	Description
User Guide	Microchip: User Guide for dsPICDEM MCHV Development System (DM330023)
User Guide	Microchip: Software Solutions and Tools for the 16-bit and 32-bit Designer
User Guide	MICROCHIP: Quick Start Guide to Microchip Development Tools
Product Brief	Microchip: Product Brief For Low-cost Motor Control and Sensor Designs with PIC MCUs and dsPIC DSCs
Product Brief	Microchip: Product brief for Motor Control Design Solutions
Application Note	Microchip: AN1078 - Sensorless Field Oriented Control of a PMSM
Application Note	Microchip: Application Note for Sinusoidal Control of PMSM Motors with dsPIC30F DSC
Application Note	Microchip: Application Note for Sensorless BLDC Control with Back-EMF Filtering Using a Majority Function
Solution Guide	Microchip: 16-bit Embedded Control Solutions
Design Techniques	Microchip: Low-cost Motor Control and Sensor Designs with PIC MCUs and dsPIC DSCs

Design Elements

Type	Description
BOM	Microchip: BOM for dsPICDEM MCHV Development Board (DM330023)

Video

Kit Features

The following are some of the key features of the DM330023DM330023 dsPICDEM MCHV Development System.

Supported Devices:
- 28-pin to 100-pin dsPIC33FJXXXMC202 PIM (MA330014) with a dsPIC33F Motor Control device socket
- 44-pin to 100-pin dsPIC33FJXXXMCX04 PIM (MA330017MA330017 and MA330018MA330018) with a dsPIC33F Motor Control device socket
- 100-pin to 100-pin dsPIC33FJXXXMCX10 PIM (MA330013MA330013) with a dsPIC33F Motor Control device socket
- dsPIC33FJ12MC202dsPIC33FJ12MC202 Motor Control device in a SOIC package footprint
Motor Control Interfaces:
- Three-phase inverter bridge with a power rating of 400V/6.5A
- Hall sensors/Quadrature Encoder Interface (QEI) for sensored motor control algorithms
- Phase voltage feedback for sensorless BLDC operation
- DC bus current sense resistor for single shunt vector control
- Phase current sense resistor for dual shunt vector control
- Overcurrent protection
Input/Output Control Switches:
- One isolated push button
- Isolated reset push button (RESET)
- Isolated 10 kΩ potentiometer
- LED indicator for PWM outputs
Isolated Communication Ports:
- UART communication via USB
- UART communication via RS-232
Built-In Isolated Programmer/Debugger :
- Starter Kit-type programmer/debugger (daughter card)
Power Supply Connectors:
- Power Tab Fast-On connectors for the power stage
- Auxiliary 24V power input connector for the dsPIC DSC device and low-power circuitry (non-populated)
- Auxiliary 15V and 3.3V regulators for regulating auxiliary power supply (non-populated)
Programming Connectors:
- ICSP connector for programming a dsPIC DSC device , non-isolated
- ICSP connector for programming the PIC18LF2450PIC18LF2450 USB module to the UART Bridge, isolated
- ICSP connector for programming the Starter Kit Programmer/Debugger (SKDE), isolated PIC18F67J50PIC18F67J50
Power Factor Corrector:
- Maximum input voltage 90 VAC-265 VAC
- Current Feedback circuitry
- VAC input voltage sensing
- Zero-crossing detection
- DC bus sensing
- Overcurrent protection
Built-In Power Supplies:
- 15V power supply, maximum power available 11W
- 3.3V power supply, maximum power available 2W
Additional Protection Circuitry:
- 250 VAC/15A fuse
- In-rush current limiter
- EMI filter

Kit Contents

The Microchip's DM330023DM330023 dsPICDEM MCHV Development Board is supplied with the below contents:

dsPICDEM MCHV DEVELOPMENT BOARD
USB Cable Assembly
Screw Driver
