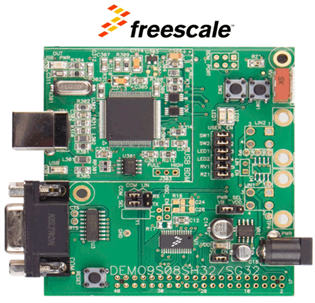

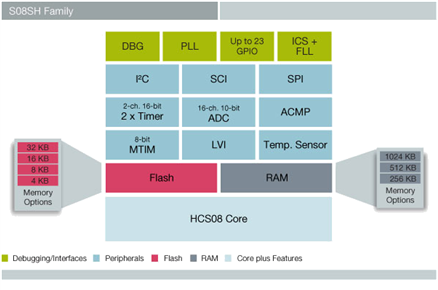

 | Overview: The DEMO9S08SH32DEMO9S08SH32 is a demonstration board for the MC9S08SH32MC9S08SH32 microcontroller. Application development is quick and easy with the integrated USB-BDM interface, together with CodeWarrior
The DEMO9S08SH32DEMO9S08SH32 board operates in two operating modes: Run Mode, or Debug Mode. Run Mode executes the user application from Power-On or Reset. Debug Mode supports the development and debug of applications.
The DEMO9S08SH32DEMO9S08SH32 board features an integrated USB-Multilink BDM from P&E Microcomputer Systems. The integrated USB-Multilink BDM supports application development and debugging via background debug mode. All necessary signals are provided by the integrated USB-Multilink BDM. A USB, type B, connector provides connection from the target board to the host PC.
Key Applications: Automotive,Consumer,Industrial,Medical/Health Care,Motor Control | |||||||||||
| ||||||||||||
Development Tools
Software Development Tools:
| Tool Type | Supplier | MPN | Supported Family | Description |
|---|---|---|---|---|
| IDE | Freescale | CodeWarrior | All Freescale MCU's | Freescale's software and development solutions take you beyond the silicon, helping to bring your embedded applications to life. Learn More |
| RTOS | Freescale | MQX | ColdFire / HC08 / HC12 / ARM / S08 / RS08 / PowerPC | The Freescale MQX Real-Time Operating System (RTOS) provides real-time performance within a small, configurable footprint. This RTOS is designed to allow you to configure and balance code size with performance requirements. Learn More |
| RTOS | Micrium | uC/OS III | ColdFire / HC08 / HC12 / ARM / S08 / RS08 / PowerPC | μC/OS-III is Micrium’s newest RTOS, designed for developers who need to save time on their current and next embedded sytem projects. Using a commercial real-time kernel such as μC/OS-III provides a solid foundation and framework to the design engineer dealing with the growing complexity of embedded designs. Learn More |
| RTOS | Segger | embOS | ColdFire / HC08 / HC12 / ARM / S08 / RS08 | SEGGER embOS (Real Time Operating System) follows strict, yet efficient coding and documentation standards. embOS is a priority-controlled real time operating system, designed to be used as foundation for the development of embedded real-time applications. Learn More |
Hardware Development Tools:
| Tool Type | Supplier | MPN | Supported Family | Description |
|---|---|---|---|---|
| Debuggers, Emulators & JTAG Tools | Freescale | USBMULTILINKBDMEUSBMULTILINKBDME | HC08 / HCS12 / S08 / RS08 / Coldfire V1 | USB BDM Interface cable for the 68HC(S)12(X) and 68HCS08 and 68RS08 and ColdFire V1 |
| Debuggers, Emulators & JTAG Tools | Freescale | U-MULTILINKU-MULTILINK | HC08 / HCS12 / S08 / RS08 / Coldfire / Kinetis | P&E USB Multilink Universal debug and programming interface for HCS08, HC(S)12(X), ColdFire, Qorivva MPC55xx/56xx, and Kinetis |
| Debuggers, Emulators & JTAG Tools | Freescale | M68CYCLONEPROEM68CYCLONEPROE | HC08 / HCS12 / S08 / RS08 / Coldfire V1 | Hardware Debug Interface and Stand-Alone Programmer for HC08, HCS08, RS08, ColdFire V1, and HC(S)12(X) |
Technical Documents
Learning Center
Design Elements
| Type | Description |
|---|---|
| Schematics | Freescale: DEMO9S08SH32SCH - DEMO9S08SH8 Schematic |
Video
Kit Features
The Freescale's DEMO9S08SH32DEMO9S08SH32 features the following:
- MC9S08SH32MC9S08SH32, 28 TSSOP
- 32K Bytes Flash
- 1K Bytes RAM
- 512K Bytes EEPROM
- Internal Oscillator
- Integrated P&E USB-BDM
- BDM_PORT header for BDM cable support (not installed)
- LIN PHY w/ 2, 4-pos Molex connectors
- MCU_PORT socket headers for access to MCU IO signals
- On-board +5V regulator
- Optional Power from USB-BDM or MCU_PORT connector
- Power Input Selection Jumpers
- Power input from USB-BDM
- Power input from on-board regulator
- Power input from Connector J1
- Optional Power output through Connector J1
- User Components Provided
- 3 Push Switches; 2 User, 1 Reset
- 7 LED Indicators; 2 User, VDD, USB Power, USB Power Out
- 5K ohm POTs w /LP Filter
- Light Sensor w/ LP Filter and Op Amp
- Jumpers
- PWR_SEL
- VX_EN
- USER_EN
- COM_SEL
- Connectors
- 40-pin MCU I/O Connector
- 2.0mm Barrel Connector
- BDM_PORT (not installed)
- USB Connector
- DB9 Connector
Kit Contents
The Freescale's DEMO9S08SH32DEMO9S08SH32 Supplied with below contents:
- DEMO9S08SH32DEMO9S08SH32 Demo board
- A USB cable
- A Quick Start Guide sheet
- User’s manual
- The CodeWarrior Development Studio
