Kit Overview

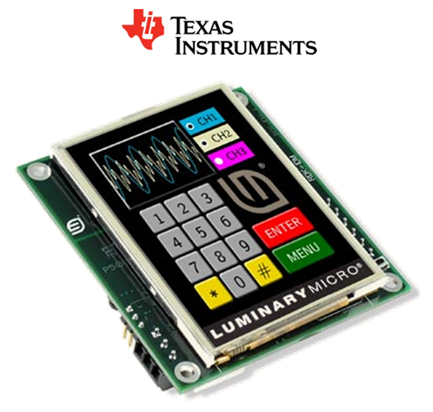

The compact Luminary Micro Stellaris Intelligent Display Module (MDL-IDM28MDL-IDM28) offer a complete graphical touch-screen user interface solution for control, automation, and instrumentation applications. Featuring a 2.8" QVGA 16-bit color LCD resistive touch panel display and Taking full advantage of the vast connectivity features included in the integrated Stellaris LM3S6918LM3S6918 microcontroller, the MDL-IDM28 offers full 10/100 Ethernet connectivity, which can serve as a standard system network connection for monitoring and control and as a reprogramming interface to update module firmware in the field.

In addition to the 256K of single-cycle Flash memory and 64K of single-cycle SRAM available within the integrated LM3S6918LM3S6918 microcontroller, the Intelligent Display Module also includes a 168K of display buffer memory, an SD Card interface, additional serial connectivity options, an audio transducer, a relay output, and four analog measurement inputs. Also, the MDL-IDM28MDL-IDM28 can be powered with a standard 24 V DC power supply or through 5 V DC terminals.

The MDL-IDM28MDL-IDM28 feature additional serial connectivity options for easy implementation as a Human Machine Interface (HMI) touch display panel in an embedded control device. The Stellaris IDMs are the first display modules available with efficient performance and robust integration of an ARM Cortex-M3 microcontroller, positioning the modules into building access controllers and security systems, intelligent white goods and home appliances, thin clients, and factory automation applications.

Key Applications: Factory automation, Instrumentation, Security system, Home appliances.

More Development Kits and Tools
	Texas Instruments Development Kits		Texas Instruments Development Tools
	Development Platforms & Kits		element14 Knode

Development Tools

Software Development Tools:

Tool Type	Supplier	MPN	Supported Family	Description
IDE	Embest	CoIDE	ARM Cortex-M	CooCox offer freely available powerful software development tool for ARM Cortex-M3 & Cortex-M0 based microcontrollers. Coocox Tools organizes and provides the knowledge required by developers. Learn More
RTOS	Embest	CoOS	ARM Cortex-M	CoOS is a free and open RTOS from CooCox, designed specifically for Cortex-M processor, supports preemptive priority and round-robin, Semaphore, Mutex, Flag, Mailbox and Queue for communication & synchronization, highly scalable, minimum system kernel is only 974Bytes, supports interrupt while task switching, supports stack overflow detection, supports the platforms of ICCARM, ARMCC, GCC. Learn More
IDE	Texas Instruments	Code Composer Studio (CCStudio)	TI ARM MCUs	CCStudio is an integrated development environment (IDE) for TI embedded processor families. CCStudio comprises a suite of tools used to develop and debug embedded applications. It includes compilers for each of TI's device families, source code editor, project build environment, debugger, profiler, simulators, real-time operating system and many other features. Learn More
IDE	ARM	Keil MDK-ARM	ARM Cortex-M / Cortex-R4 / ARM7 / ARM9	The MDK-ARM is a complete software development environment for Cortex-M, Cortex-R4, ARM7 and ARM9 processor-based devices. MDK-ARM is specifically designed for microcontroller applications, it is easy to learn and use, yet powerful enough for the most demanding embedded applications. Learn More
RTOS	Micrium	µC/OS-III	TI ARM MCUs	μC/OS-III is Micrium’s newest RTOS, designed for developers who need to save time on their current and next embedded sytem projects. Using a commercial real-time kernel such as μC/OS-III provides a solid foundation and framework to the design engineer dealing with the growing complexity of embedded designs. Learn More
RTOS	Segger	embOS	TI ARM MCUs	SEGGER embOS (Real Time Operating System) follows strict, yet efficient coding and documentation standards. embOS is a priority-controlled real time operating system, designed to be used as foundation for the development of embedded real-time applications. Learn More

Hardware Development Tools:

Tool Type	Supplier	MPN	Supported Family	Description
Debugger	Embest	ColinkExColinkEx	ARM Cortex-M	ARM Cortex-M MCU JTAG Hardware Debugging Probe which supports in CooCox software and Keil Realview MDK
Emulator / Debugger / Programmer	ARM	ULINK2ULINK2	ARM Cortex-M / ARM7 / ARM9	ULINK2 Debug Adapter
Emulator / Debugger / Programmer	ARM	ULINKProULINKPro	ARM Cortex-M / ARM7 / ARM9	ULINKpro Debug and Trace Unit
Emulator	Segger	J-LinkJ-Link	ARM Cortex-M / Cortex-R4 / Cortex-A / ARM7 / ARM9	JTAG/SWD Emulator with USB interface
Programmer	Segger	Flasher ARMFlasher ARM	ARM Cortex-M / Cortex-R4 / Cortex-A / ARM7 / ARM9	Flash Programmer for ARM and Cortex cores

Technical Documents

Learning Center

Type	Description
User Guide	TI: User Guide of Stellaris LM3S6918 IDM RDK
Product Brief	Texas Instruments: Stellaris LM3S6918 IDM Reference Design Kit Product Brief
Datasheet	TI: Stellaris LM3S6918 Microcontroller Data Sheet (Rev. H)
Datasheet	TI: Stellaris LM3S6918 Microcontroller Data Sheet (Rev. G)
Datasheet	TI: Stellaris LM3S6918 IDM Board Data Sheet
Application Note	TI: Stellaris ADC Calibration (AN01282) (Rev. B)
Revision Note	TI: Stellaris LM3S6918 Rev A2 Errata (Rev. J)
Revision Note	TI: ARM Cortex-M3 Errata (r1p1 and r2p0)

Design Elements

Type	Description

Video

This video is unavailable.

Kit Features

Bright QVGA LCD touch-screen display
- 2.8" QVGA 240 x 320 pixels
- 16-bit color
- White LED backlight
- Resistive touch panel
Ethernet and Serial connectivity options
- 10/100 Ethernet with Auto MDI/MDIX and Traffic /Link indicator LED
- Header provides TXD and RXD signals
- RS232 signal levels
- Default 115.2k,8,n,1 operation
High performance and memory
- 32-bit ARM Cortex-M3 core
- 256 KB Main Flash memory, 64 KB SRAM
- microSD slot (typically 1 GB storage)
Flexible power supply options
- Power over Ethernet (IEEE 802.3af compliant)
- 24V DC power jack
- 5V DC terminals
Easy to customize - full source code and design files including..
- Example applications included
- Develop using tools from Keil, IAR, Code Sourcery, Code Red and GCC
- Supported by Stellaris Graphics Library and StellarisWare Peripheral Driver Library
Additional Peripherals

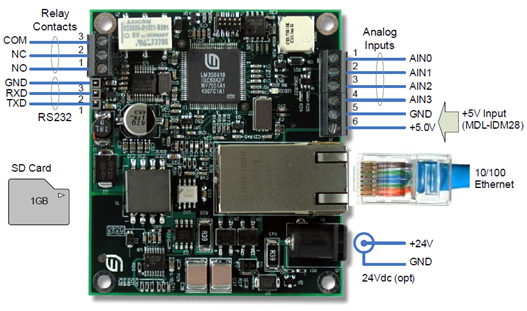

- Four analog measurement inputs
- One relay output (1 form C / SPDT contacts)
Compact size simplifies system integration

Kit Contents

The Texas Instrument's MDL-IDM28MDL-IDM28 supplied with below contents:

MDL-IDM28MDL-IDM28 Stellaris Ethernet-Enabled Intelligent Display Module
