NXP: OM13016 Xpresso BaseBoard to evaluate NXP's LPCXpresso boards

Buy NowBuy Now

Kit Overview

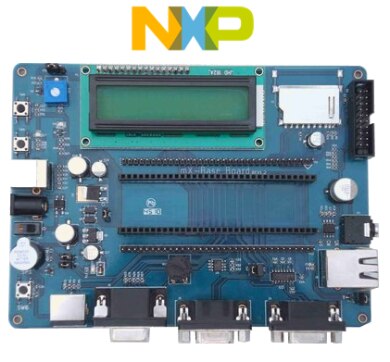

mX-BaseBoardmX-BaseBoard is a new addition to the BlueBoard line from NGX Technologies and desiged to evaluate NXP's LPCXpresso boards. This board is intended to extend the functionality of the LPCXpresso board. It can also be used with NGX mX-Stamp boards with controllers like LPC2148LPC2148, LPC1768LPC1768, LPC1343LPC1343, LPC1114LPC1114, etc. mX-BaseBoardmX-BaseBoard and Stamp modules together serve as an excellent platform to evaluate various architectures like ARM7, CORTEX-M3, CORTEX-M0... etc. mX-BaseBoard can be used to extend the features of the stamp by providing connectors and interface to various peripherals of the stamp and provide power to the peripheral interface. mbed-Xpresso Base board has various peripherals with configurable jumpers. Two 33 pin expansion dual row header connectors (P9-P11) and (P10-P12) (male-female, 100mil pitch) for simple connection to breadboard.

The mX-BaseBoardmX-BaseBoard makes it possible for you to get started with experiments and prototyping immediately. The Baseboard can also be used together with the mbed module. It is compatible with the NGX series of mX-LPCxxxx-S (S symbolizes Stamps), LPCXpresso boards and with the mbed module. It is designed keeping in mind the requirements of a development engineer, who could be working on different controllers but would prefer the same peripheral interface or a company working on different products using different controller and would not prefer to invest huge amount in individual boards or a hobby enthusiast who would be trying out different controllers but would not be willing to invest in different boards for each controller. For all these, the user can buy the required stamp module and work on this board.

Key Applications: Industrial, RFID readers, Consumer, e-Metering, and White goods.

More Development Kits and Tools
	Other NXP Development Kits		NXP Overview
	Development Platforms & Kits		element14 Knode

Development Tools

Supplied Development Tools:

Type	Description
	LPCXpresso IDE: Includes best-in-class C programming environment with advanced features such as syntax highlighting, code folding, click-through links to definitions and declarations. The optimized GCC compiler and C libraries for the Cortex-M0 enables users to develop high-quality software solutions quickly and cost-effectively. The IDE features several LPC-specific enhancements and is simplified for 8/16 bit users with NXP’s proprietary interface which employs a single perspective view, enabling a seamless interconnect between code development & debugging. The latest version of the IDE is always downloaded from the LPCXpresso website.
	LPC-Link Debugger: The LPC-Link is equipped with a 10-pin JTAG header, and it seamlessly connects to a target via USB (the USB interface and other debug features are provided by NXP's ARM9 based LPC3154 MCU). Cutting the traces between the LPC-link and the target will make the LPC-Link a stand-alone JTAG debugger. This enables the LPCXpresso platform to be connected to an external target and used to develop for a wide variety of NXP's Cortex-M0, Cortex-M3, and ARM7/9 based applications.The LPC-Link debug probe can also be disconnected from the target and used directly with the customer’s own design using the on-board 10-pin JTAG/SWD header. The LPC-Link uses the LPC3154 as an ARM9-based debug engine, providing an HS USB interface for accelerated code download and faster debugging experience.

Type

Description

LPCXpresso IDE: Includes best-in-class C programming environment with advanced features such as syntax highlighting, code folding, click-through links to definitions and declarations. The optimized GCC compiler and C libraries for the Cortex-M0 enables users to develop high-quality software solutions quickly and cost-effectively. The IDE features several LPC-specific enhancements and is simplified for 8/16 bit users with NXP’s proprietary interface which employs a single perspective view, enabling a seamless interconnect between code development & debugging. The latest version of the IDE is always downloaded from the LPCXpresso website.

LPC-Link Debugger: The LPC-Link is equipped with a 10-pin JTAG header, and it seamlessly connects to a target via USB (the USB interface and other debug features are provided by NXP's ARM9 based LPC3154 MCU). Cutting the traces between the LPC-link and the target will make the LPC-Link a stand-alone JTAG debugger. This enables the LPCXpresso platform to be connected to an external target and used to develop for a wide variety of NXP's Cortex-M0, Cortex-M3, and ARM7/9 based applications.The LPC-Link debug probe can also be disconnected from the target and used directly with the customer’s own design using the on-board 10-pin JTAG/SWD header. The LPC-Link uses the LPC3154 as an ARM9-based debug engine, providing an HS USB interface for accelerated code download and faster debugging experience.

Aditional - Software Development Tools:

Tool Type	Supplier	MPN	Supported Family	Description
IDE	ARM	Keil MDK-ARM	ARM Cortex-M / Cortex-R4 / ARM7 / ARM9	The MDK-ARM is a complete software development environment for Cortex-M, Cortex-R4, ARM7 and ARM9 processor-based devices. MDK-ARM is specifically designed for microcontroller applications, it is easy to learn and use, yet powerful enough for the most demanding embedded applications. Learn More
IDE	Embest	CoIDE	ARM Cortex-M	CooCox offer freely available powerful software development tool for ARM Cortex-M3 & Cortex-M0 based microcontrollers. Coocox Tools organizes and provides the knowledge required by developers. Learn More
RTOS	Embest	CoOS	ARM Cortex-M	CoOS is a free and open RTOS from CooCox, designed specifically for Cortex-M processor, supports preemptive priority and round-robin, Semaphore, Mutex, Flag, Mailbox and Queue for communication & synchronization, highly scalable, minimum system kernel is only 974Bytes, supports interrupt while task switching, supports stack overflow detection, supports the platforms of ICCARM, ARMCC, GCC. Learn More

Aditional - Hardware Development Tools:

Tool Type	Supplier	MPN	Supported Family	Description
Emulator / Debugger / Programmer	ARM	ULINK2ULINK2	ARM Cortex-M / ARM7 / ARM9	ULINK2 Debug Adapter
Emulator / Debugger / Programmer	ARM	ULINKProULINKPro	ARM Cortex-M / ARM7 / ARM9	ULINKpro Debug and Trace Unit
Emulator	Segger	J-LinkJ-Link	ARM Cortex-M / Cortex-R4 / Cortex-A / ARM7 / ARM9	JTAG/SWD Emulator with USB interface
Programmer	Segger	Flasher ARMFlasher ARM	ARM Cortex-M / Cortex-R4 / Cortex-A / ARM7 / ARM9	Flash Programmer for ARM and Cortex cores
Debugger	Embest	ColinkExColinkEx	ARM Cortex-M	ARM Cortex-M MCU JTAG Hardware Debugging Probe which supports in CooCox software and Keil Realview MDK

Technical Documents

Learning Center

Type	Description
User Manual	NXP: LPC11U1x User manual
Product Brief	NXP: Errata sheet LPC11U1x
Product Brief	NXP: Low-cost Cortex-M0 USB solutions with Smart Card interface
Datasheet	NXP: LPC11U1x Data Sheet
Application Note	NXP: UUencoding for UART ISP
Application Note	NXP: AN11115 - USB Audio and USB CDC with FFT for LPC11U14
Application Note	NXP: AN11121 - USB CCID class smart card reader using LPCXpresso LPC11U14
Application Note	NXP: AN11208 - NXP LPC Cortex-M0 IEC60335 Class B library

Design Elements

Type	Description
Reference Design	NXP: LPC1343 vs. LPC11U1x
Reference Design	NXP: Software for LPC11Uxx
Reference Design	NXP: LPCXpresso11U14_usbhid
Reference Design	NXP: LPCXpresso11U14_systick

Video

Kit Features

Power
- Power supply: DC 7.5V with power LED
- On-board linear regulators generate +3.3V/500mA and +5v/500mA from power supply
- USB connector ( as alternate power source)
Connectors
- Extension headers for all microcontroller pins
- Two RS232 port connectors
- VGA connector
- PS/2 connector
- JTAG connector
- SD/MMC connector
- RJ45 connector
- USB B-type connector
Other Peripherals
- 256Kb I2C based EEPROM
- Audio power amplifier with audio jack
- 2 line X 16 character LCD with back light control
- Manual program download using serial port (ISP-In System Programming)

Kit Contents

mbed-Xpresso Baseboard
USB B-type cable
