Gertboard Kit - Add-on GPIO expansion board for the Raspberry Pi

BUY NOWBUY NOWSoftware ToolsTechnical DocumentsVideoFeaturesKit Contents

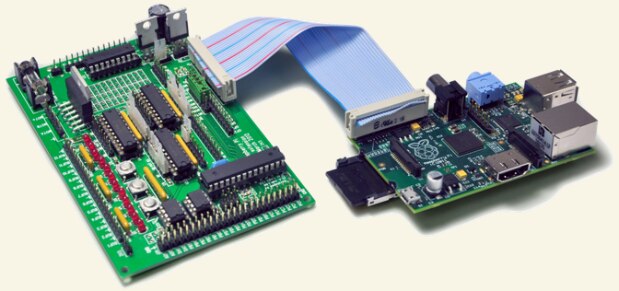

The GertboardTM is an add-on board that extends the use of Raspberry Pi to devices in the real world, including motor/lamp control, and the sensing of voltages and currents. It also contains a host micro that can be programmed with code written and compiled for it, on the Raspberry Pi. The GertboardTM Kit contains the bareboard PCB and electronic components that allow you to self assemble your own GertboardTM.





It comes with a large variety of components, including buttons, LEDs, A/D and D/A converters, a motor controller, and an Atmel AVR microcontroller. There is a suite of test/example programs for the GertboardTM, written in C. , which is freely available from below Design Elements. The GertboardTM Kit is supported by a number of videos featuring Gert van Loo, creator of the GertboardTM and Paul Gibbon from Weller.  These video materials demonstrate how to solder through hole and surface mount components onto the GertboardTM.





Key Applications: Add-on GPIO expansion board for the Raspberry Pi

More Development Kits and Tools
imageRaspberry Pi - Single Board ComputerimageDevelopment Platform and Kits
imageGertboard Kit - Add-on GPIO board for Raspberry Piimageelement14 Knode



Technical Documents



Learning Center

TypeDescription
User ManualGertboard: User Manual for Gertboard Kit
Assembly ManualGertboard: Assembly Manual for the Gertboard Kit



Design Elements



TypeDescription
SchematicGertboard: Schematic for Gertboard Kit
Application LibraryGertboard: Application Library for Gertboard Kit (Linux)



Back to top



Video





Videos on Gertboard Kit



Video 1: Exclusive interview with Gert van Loo, creator of the Gertboard for Raspberry Pi



Video 2: Advice on getting ready to assemble your own Gertboard Kit



Video 3: Through Hole Soldering Tips on the Gertboard Kit



Video 4: Surface Mount Soldering Tips on the Gertboard Kit





Back to top



Kit Features






The major building blocks on GertboardTM are:


  • 12x buffered I/O
  • 3x push button
  • 6x Open collector driver (50V, 0.5A)
  • 48V, 4A motor controller
  • 28-pin dual in line ATmega device
  • 2-channel 8/10/12 bits Digital to Analogue converter
  • 2-channel 10 bits Analogue to Digital converter





















Back to top

Kit Contents



  • Assembled Gertboard



Back to top
