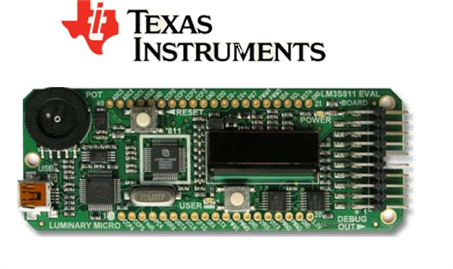

 | Kit Overview The Stellaris
The heart of the EVB is a Stellaris LM3S811LM3S811 ARM
The evaluation kits contain all cables, valuation version of the Keil software tools, and documentation needed to develop and run applications for Stellaris microcontrollers easily and quickly.
Ordering Information:
Key Applications: Factory automation and control, Industrial control power devices, Building and home automation, Brushless DC motors. | ||||||||||||
| |||||||||||||
Development Tools
Software Development Tools:
| Tool Type | Supplier | MPN | Supported Family | Description |
|---|---|---|---|---|
| Embest | CoIDE | ARM Cortex -M | CooCox offer freely available powerful software development tool for ARM Cortex-M3 & Cortex-M0 based microcontrollers. Coocox Tools organizes and provides the knowledge required by developers. Learn More |
| RTOS | Embest | CoOS | ARM Cortex-M | CoOS is a free and open RTOS from CooCox, designed specifically for Cortex-M processor, supports preemptive priority and round-robin, Semaphore, Mutex, Flag, Mailbox and Queue for communication & synchronization, highly scalable, minimum system kernel is only 974Bytes, supports interrupt while task switching, supports stack overflow detection, supports the platforms of ICCARM, ARMCC, GCC. Learn More |
| IDE | ARM | Keil MDK-ARM | ARM Cortex-M / Cortex-R4 / ARM7 / ARM9 | The MDK-ARM is a complete software development environment for Cortex-M, Cortex-R4, ARM7 and ARM9 processor-based devices. MDK-ARM is specifically designed for microcontroller applications, it is easy to learn and use, yet powerful enough for the most demanding embedded applications. Learn More |
| RTOS | Micrium | µC/OS-II | ARM Cortex-M / Cortex-R4 / ARM7 / ARM9 | µC/OS-II, the Real-Time Kernel, is a portable, ROMable, scalable, preemptive, real-time deterministic multitasking kernel for microprocessors, microcontrollers and DSPs. Offering unprecedented ease-of-use, µC/OS-II is delivered with complete source code and in-depth documentation. Learn More |
| RTOS | Micrium | µC/OS-III | ARM Cortex-M / Cortex-R4 / ARM7 / ARM9 | μC/OS-III is Micrium’s newest RTOS, designed for developers who need to save time on their current and next embedded sytem projects. Using a commercial real-time kernel such as μC/OS-III provides a solid foundation and framework to the design engineer dealing with the growing complexity of embedded designs. Learn More |
| RTOS | Segger | embOS | ARM Cortex-M / Cortex-R4 / ARM7 / ARM9 | embOS is a priority-controlled real time operating system, designed to be used as foundation for the development of embedded real-time applications. It is a zero interrupt latency, high-performance RTOS that has been optimized for minimum memory consumption in both RAM and ROM, as well as high speed and versatility. Learn More |
Hardware Development Tools:
| Tool Type | Supplier | MPN | Supported Family | Description |
|---|---|---|---|---|
Debugger | Embest | ColinkExColinkEx | ARM Cortex-M | ARM Cortex-M MCU JTAG Hardware Debugging Probe which supports in CooCox software and Keil Realview MDK |
| Emulator / Debugger / Programmer | ARM | ULINK2ULINK2 | ARM Cortex-M / ARM7 / ARM9 | ULINK2 Debug Adapter |
| Emulator / Debugger / Programmer | ARM | ULINKProULINKPro | ARM Cortex-M / ARM7 / ARM9 | ULINKpro Debug and Trace Unit |
| Emulator | Segger | J-LinkJ-Link | ARM Cortex-M / Cortex-R4 / ARM7 / ARM9 | JTAG/SWD Emulator with USB interface |
| Programmer | Segger | Flasher ARMFlasher ARM | ARM Cortex-M / Cortex-R4 / ARM7 / ARM9 | Flash Programmer for ARM and Cortex cores |
Technical Documents
Learning Center
| Type | Description |
|---|---|
| User Guide | TI: User's Guide: Stellaris LM3S811 Evaluation Kit Quickstart for Keil Tools |
| User Guide | TI: User's Guide:Stellaris LM3S811 Evaluation Kit Quickstart for IAR Embedded Workbench |
| User Manual | |
| Product Brief | TI: Product Brief of Stellaris LM3S811 Evaluation Kit |
| Datasheet | |
| Reference Manual | TI: Software Interface Standard of Cortex Microcontroller |
| Whitepaper | TI: White Paper Get to Work in 10 Minutes |
Design Elements
| Type | Description |
|---|---|
| CAD Model | |
| CAD Model | TI: Stellaris Schematic Part Library for Altium |
| CAD Model | TI: Stellaris Schematic Part Library for OrCAD |
Video
Kit Features

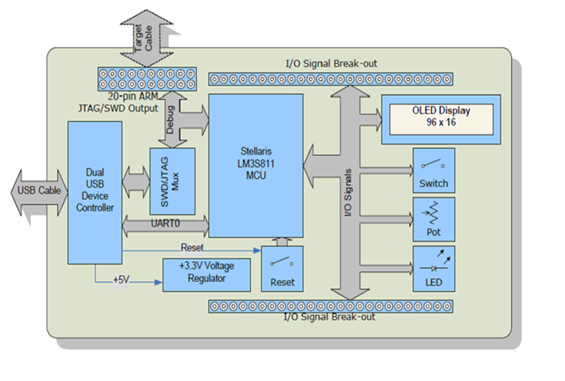

The Stellaris LM3S811 Evaluation BoardLM3S811 Evaluation Board includes the following features:
- Stellaris LM3S811LM3S811 microcontroller
- OLED graphics display with 96 x 16 pixel resolution
- User-programmable pushbutton and LED
- Reset pushbutton and power indicator LED
- Thumbwheel potentiometer for driving an Analog-to-Digital Converter (ADC) input
- Standard ARM 20-pin JTAG debug connector for use as an In-Circuit Debug Interface (ICDI)
- I/O signal break-out pads for hardware prototyping
- UART0 accessible through a USB Virtual COM Port (VCP)
- USB interface for all communication and power
Kit Contents
- Stellaris LM3S811-IQN50-C2LM3S811-IQN50-C2 Evaluation Board
- USB cable
- 20-pin JTAG/SWD target cable
- Evaluation Kit CD containing:
- Evaluation version of the software tools
- Complete Documentation
- Quickstart guide and source code
- StellarisWare software including peripheral driver library and example source code
