NXP: OM13020 IAR LPC1788 Development Kit

Buy NowBuy Now

Kit Overview

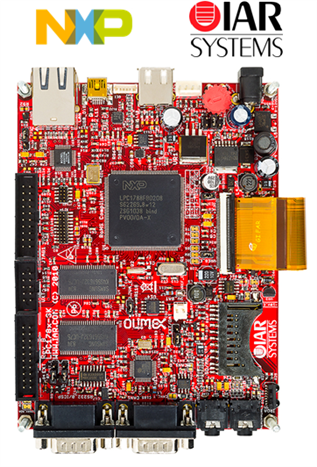

The IAR LPC1788 Evaluation Board (OM13020OM13020) allows you to quickly and easily evaluate the LPC178x family of microcontrollers. The microcontroller, board, and accompanying features make it a great starting point for your next Cortex-M3 project. Populated with the LPC1788LPC1788 to demonstrate LPC178x features.

The LPC1788 Evaluation Board is equipped with the Cortex-M3 LPC1788LPC1788 microcontroller and is suitable for a wide range of applications that requires advanced communication and high quality graphic displays.

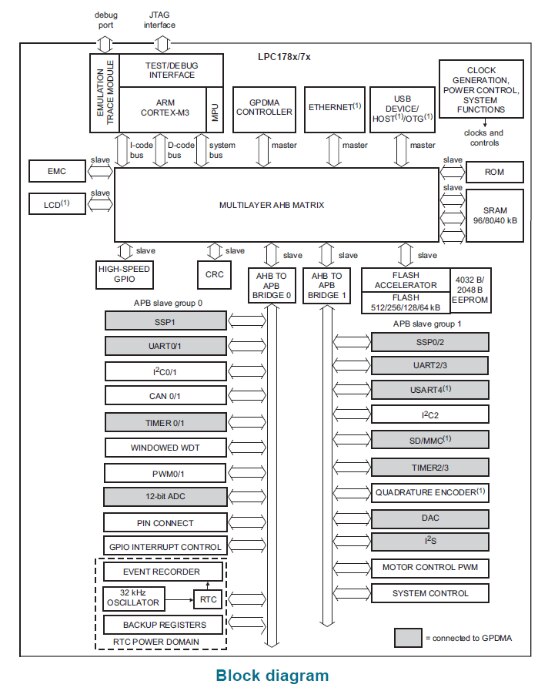

The LPC1788LPC1788 is a Cortex-M3 microcontroller for embedded applications featuring a high level of integration and low power consumption at frequencies of 120 MHz. Features include 512 kB of flash memory, 96 kB of data memory, Ethernet, USB 2.0 Host/OTG/Device , 8-channel DMA controller, 5 UARTs, 2 CAN channels, 3 SSP/SPI, 3 I2C, I2S, 8-channel 12-bit ADC, 10-bit DAC, QEI, LCD controller, SD/MMC interface, motor control PWM, 4 general purpose timers, 6-output general purpose PWM, ultra-low power Real-Time Clock with separate battery supply, and up to 165 general purpose I/O pins.

Key Applications: eMetering, Lighting, Industrial networking, Alarm systems, White goods, Motor control.

More Development Kits and Tools
	Other NXP Development Kits		NXP Overview
	Development Platforms & Kits		element14 Knode

Development Tools

Software Development Tools:

Tool Type	Supplier	MPN	Supported Family	Description
IDE	ARM	Keil MDK-ARM	ARM Cortex-M / Cortex-R4 / ARM7 / ARM9	The MDK-ARM is a complete software development environment for Cortex-M, Cortex-R4, ARM7 and ARM9 processor-based devices. MDK-ARM is specifically designed for microcontroller applications, it is easy to learn and use, yet powerful enough for the most demanding embedded applications. Learn More

Hardware Development Tools:

Tool Type	Supplier	MPN	Supported Family	Description
Emulator / Debugger / Programmer	ARM	ULINK2ULINK2	ARM Cortex-M / ARM7 / ARM9	ULINK2 Debug Adapter
Emulator / Debugger / Programmer	ARM	ULINKProULINKPro	ARM Cortex-M / ARM7 / ARM9	ULINKpro Debug and Trace Unit
Emulator	Segger	J-LinkJ-Link	ARM Cortex-M / Cortex-R4 / Cortex-A / ARM7 / ARM9	JTAG/SWD Emulator with USB interface
Programmer	Segger	Flasher ARMFlasher ARM	ARM Cortex-M / Cortex-R4 / Cortex-A / ARM7 / ARM9	Flash Programmer for ARM and Cortex cores

Technical Documents

Learning Center

Type	Description
User Manual	NXP: UM10470 - User Manual for LPC178x/7x
Datasheet	NXP: Datasheet for LPC178x/7x - 32-bit ARM Cortex-M3 microcontroller; up to 512 kB flash and 96 kB SRAM; USB Device/Host/OTG; Ethernet; LCD; EMC
Product Brief	NXP: Product Brief for 120 MHz, 32-bit MCUs with Cortex-M3 core LPC177x / LPC178x series
Product Brief	NXP: Product Brief for NXP 32-bit microcontrollers
Application Note	NXP: AN11244 - Application Note for emWin startup guide
Application Note	NXP: AN11257 - Application Note for SPI secondary boot loader

Design Elements

Type	Description
Application Library	NXP: Software Code for SPI secondary boot loader

Video

Video1	Video2
This video is unavailable. You don't have permission to edit metadata of this video.	You don't have permission to edit metadata of this video. Edit media Dimensions x Subject (required) Brief Description Tags (separated by comma) Video visibility in search results Parent content Poster Upload Preview

Kit Features

Features of OM13020OM13020:

Microcontroller
- LPC1788FBD208LPC1788FBD208 LQFP
  - 512 kB of flash memory
  - 96 kB of data memory
  - Ethernet
  - USB 2.0 Host/OTG/Device
  - 8-channel DMA controller
  - 5 UARTs
  - 2 CAN channels
  - 3 SSP/SPI, 3 I2C, I2S
  - 8-channel 12-bit ADC, 10-bit DAC
  - QEI, LCD controller
  - SD/MMC interface, Motor control PWM
  - 4 general purpose timers
  - 6-output general purpose PWM
  - Ultra-low power Real-Time Clock with separate battery supply
  - Up to 165 general purpose I/O pins.
User interfaces
- 2x user buttons
- LCD 3.5’’ 320x200 24bit color TFT with backlight and touch screen
Debug interfaces
- JTAG/SWD connector - 20 pin 0.1’’
- SWD connector - small 9 pin 0.05’’
- ETMv3 connector - small 19 pin 0.05’’
Communication interfaces
- RS232/ICSP
- USB host and OTG
- CAN driver and connector
- IrDA
- 100 Mbit Ethernet 12C routed to connector
- UXT connector
- EXT connector
- QEI connector
Power functions
- Multiple power supply options:
  - J-Link (pin 19)
  - Trace connector (pin 11&13)
  - External supply
- Power supply LED
Additional features
- Audio in and out
- SD/MMC card connector
- Trimpot
- Accelerometer

Kit Contents

The NXP's OM13020OM13020 IAR LPC1788LPC1788 Developer's Kit supplied with below contents:

LPC1788-SK Evaluation Board
IAR J-Link Lite for ARM
IAR Embedded Workbench for ARM 32K limited edition
IAR visualSTATE 20-state evaluation edition
Example applications from IAR
Example code from NXP
RTOS board support
