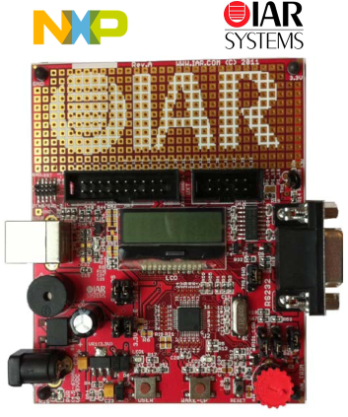

IAR LPC11U24 Evaluation Board (OM13022OM13022) allows you to quickly and easily evaluate the NXP LPC11U2x family of microcontrollers. The microcontroller, board, and accompanying features make it a great starting point for your next Cortex-M0 project.
The evaluation board is populated with the LPC11U24LPC11U24 to demonstrate LPC11U2x features, the LPC11U24 board allows the evaluation of the robust USB performance of the LPC11U24.
The LPC11U2x is an ARM Cortex-M0 based, low-cost 32-bit MCU family, designed for 8/16-bit microcontroller applications, offering performance, low power, simple instruction set and memory addressing together with reduced code size compared to existing 8/16-bit architectures. The LPC11U2x operate at CPU frequencies of up to 50 MHz.
Equipped with a highly flexible and configurable Full-Speed USB 2.0 device controller, the LPC11U2x brings unparalleled design flexibility and seamless integration to today’s demanding connectivity solutions.
The peripheral complement of the LPC11U2x includes up to 32 kB of flash memory, up to 10 kB of SRAM data memory and 4 kB EEPROM, one Fast-mode Plus I2C-bus interface, one RS-485/EIA-485 USART with support for synchronous mode and smart card interface, two SSP interfaces, four general-purpose counter/timers, a 10-bit ADC (Analog-to-Digital Converter), and up to 54 general-purpose I/O pins.
Key Applications: Consumer peripherals, Handheld scanners, Medical, USB audio devices, Industrial control | |||||||||||
| ||||||||||||
Development Tools
Software Development Tools:
| Tool Type | Supplier | MPN | Supported Family | Description |
|---|---|---|---|---|
| IDE | ARM | Keil MDK-ARM | ARM Cortex -M / Cortex-R4 / ARM7 / ARM9 | The MDK-ARM is a complete software development environment for Cortex-M, Cortex-R4, ARM7 and ARM9 processor-based devices. MDK-ARM is specifically designed for microcontroller applications, it is easy to learn and use, yet powerful enough for the most demanding embedded applications. Learn More |
Hardware Development Tools:
| Tool Type | Supplier | MPN | Supported Family | Description |
|---|---|---|---|---|
| Emulator / Debugger / Programmer | ARM | ULINK2ULINK2 | ARM Cortex-M / ARM7 / ARM9 | ULINK2 Debug Adapter |
| Emulator / Debugger / Programmer | ARM | ULINKProULINKPro | ARM Cortex-M / ARM7 / ARM9 | ULINKpro Debug and Trace Unit |
| Emulator | Segger | J-LinkJ-Link | ARM Cortex-M / Cortex-R4 / Cortex-A / ARM7 / ARM9 | JTAG/SWD Emulator with USB interface |
| Programmer | Segger | Flasher ARMFlasher ARM | ARM Cortex-M / Cortex-R4 / Cortex-A / ARM7 / ARM9 | Flash Programmer for ARM and Cortex cores |
Technical Documents
Learning Center
Design Elements
| Type | Description |
|---|---|
| Schematics | NXP: Schematic File for LPC11U24 |
| Application Library | NXP: Software Code for SPI secondary boot loader |
| Application Library | NXP: Software Code for USB composite device on LPC11Uxx |
Video
Kit Features

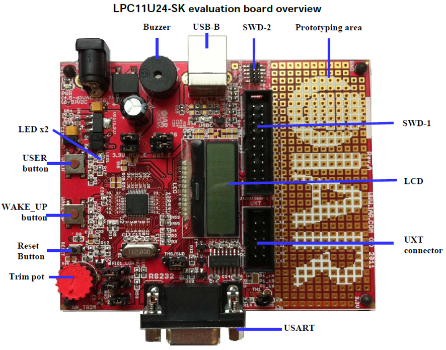

Key Features for LPC11U24-SK evaluation board (OM13022OM13022):
- Mounted with NXP Semiconductors’LPC11U24LPC11U24 device
- Debug and power up the board with J-Link Lite - a small debug probe for ARM devices
- Standard 20-pin JTAG/SWD connector (SWD1)
- 10-pin Cortex Debug connector (SWD2)
- Small LCD
- USB connector
- USART routed to DB9 connector
- UXT connector
- User, Wake-up and Reset buttons
- 2x User LEDs
- Power LED
- Analog trimpot wheel
- Buzzer
- Prototyping area
- Temp sensor
Kit Contents
The NXP OM13022OM13022 IAR LPC11U24 Evaluation Board supplied with below contents:
- IAR LPC11U24-SK evaluation board
- IAR J-Link Lite debug probe for ARM
- USB A-B cable
- Installation DVD
- IAR Embedded Workbench for ARM 8K limited edition for Cortex-M0
- IAR visualSTATE 20-state evaluation edition
- Example applications made for the evaluation board from IAR Systems
- RTOS BSPs from IAR RTOS partner program
