 | Kit Overview

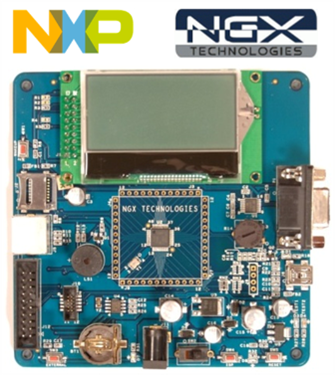

BlueBoard is a cost effective prototyping solution. It is a ready-to-run development platform with code snippets to demonstrate applications for every feature supported on the board. The Blue Board offers ubiquitous interfaces making it the best board available for the offered price.
The NGX BLUEBOARD-LPC11U24 (OM13033OM13033) is based on ARM Cortex-M0 microcontroller from NXP. LPC11U24 offers 32-KB Flash memory, 4-KB on-chip EEPROM data memory, 50-MHz operation, I2C controller with data rate of up to 1 Mbit/s, USB 2.0 full-speed device controller, and wide range of peripherals.
BLUEBOARD-LPC11U24BLUEBOARD-LPC11U24 microcontroller is factory-programmed with a quick start demo program. The quick start program resides in the BLUEBOARD-LPC11U24 on-chip Flash memory and runs each time power is applied, unless the quick start has been replaced with a user program.
The LPC11U24LPC11U24, a NXP ARM CORTEX-M0 microcontroller is a USB 2.0 full-speed device controller, has 32KB of internal flash, 8+2 KB SRAM and 4KB EEPROM. The LPC11U24 operates at CPU frequencies of up to 50MHz. In-System Programming (ISP) and In-Application Programming (IAP) via on-chip bootloader software. The peripheral complement of the LPC11U24 includes, one Fast-mode Plus I2C-bus interface, one RS-485/EIA-485 USART with support for synchronous mode and smart card interface, two SSP interfaces, four general purpose counter/timers, a 10-bit ADC, and upto 40 general purpose I/O pins.
Key Applications: Consumer peripherals, Medical, Industrial control, Industrial control, USB audio devices | |||||||||||
| ||||||||||||
Development Tools
Software Development Tools:
| Tool Type | Supplier | MPN | Supported Family | Description |
|---|---|---|---|---|
| IDE | ARM | Keil MDK-ARM | ARM Cortex -M / Cortex-R4 / ARM7 / ARM9 | The MDK-ARM is a complete software development environment for Cortex-M, Cortex-R4, ARM7 and ARM9 processor-based devices. MDK-ARM is specifically designed for microcontroller applications, it is easy to learn and use, yet powerful enough for the most demanding embedded applications. Learn More |
Hardware Development Tools:
| Tool Type | Supplier | MPN | Supported Family | Description |
|---|---|---|---|---|
| Emulator / Debugger / Programmer | ARM | ULINK2ULINK2 | ARM Cortex-M / ARM7 / ARM9 | ULINK2 Debug Adapter |
| Emulator / Debugger / Programmer | ARM | ULINKProULINKPro | ARM Cortex-M / ARM7 / ARM9 | ULINKpro Debug and Trace Unit |
| Emulator | Segger | J-LinkJ-Link | ARM Cortex-M / Cortex-R4 / Cortex-A / ARM7 / ARM9 | JTAG/SWD Emulator with USB interface |
| Programmer | Segger | Flasher ARMFlasher ARM | ARM Cortex-M / Cortex-R4 / Cortex-A / ARM7 / ARM9 | Flash Programmer for ARM and Cortex cores |
Technical Documents
Learning Center
Design Elements
| Type | Description |
|---|---|
| Schematics | NXP: Schematic for LPC11U24 |
| Application Library | NXP: Software Code for KEIL MDK ARM |
| Application Library | NXP: Software Code for LPC-Xpresso |
| Application Library | NXP: Software Code for IAR (Use version 6.40.2 and above) |
Video
| Video 1 | Video 2 |
|---|---|
Kit Features

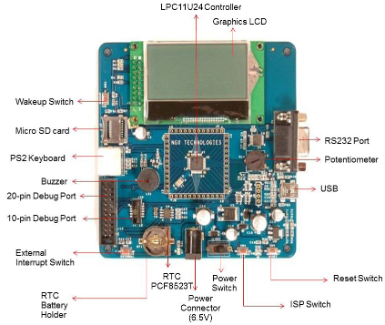

Key Features for OM13033OM13033 BlueBoard-LPC11U24 Evaluation Board are as below:
- Dimensions: 110mm X 110mm
- Two layer PCB (FR-4 material)
- Power: DC 6.5V with power LED On-board linear regulators generate +3.3V/500mA and +5V/500mA from power supply USB connector (as alternate power source)
- 10 pin, 20 pin CORTEX debug connector for SWD (Serial Wire Debug)
- ISP, Wakeup, External Interrupt and reset switch
- 12.0000 MHz crystal for MCU, 32Khz crystal for RTC
- Extension headers for all microcontroller pins
- RS232 connector, PS2 connector, Micro SD/MMC card connector, USB type-B mini connector with link-LED
- 64 x 128 graphical LCD with Backlight control
- High accuracy external RTC connected on I2C bus
- RTC battery holder
- 10K pot for ADC
Kit Contents
The NXP OM13033OM13033 BlueBoard-LPC11U24 Evaluation Board supplied with below contents:
- BlueBoard-LPC11U24
- USB Mini B-Type Cable
