Embest: SBC6000X Single Board Computer using Atmel’s AT91SAM9261S Microcontroller

Overview

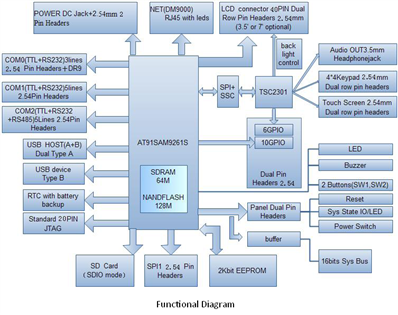

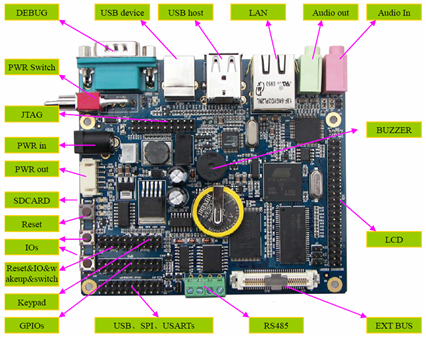

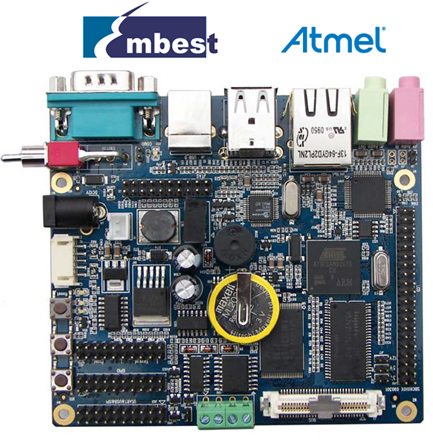

Embest SBC6000XSBC6000X is an embedded single board computer using Atmel’s AT91SAM9261SAT91SAM9261S microcontroller with low power and high reliability. The board is a compact board with various peripheral interfaces including USB Host/Device, Ethernet, LCD/Touch Screen, Serial ports, Keyboard, Audio, SPI, SD and BUS. It features an extended precise RTC and RS485 with isolation. It’s peripheral interfaces features ESD protection. The board is capable of supporting both Windows CE 6.0 and Linux 2.6.24 OS and Embest provides BSP package, user manual and some other tools and documents to help the users better understand this board.  Microsoft EVC or the provided linux tool chain can be used to speed the development and subsequently your time to market.

The SBC6000XSBC6000X has various industrial Bus interfaces which can work stably between -10℃~70℃  or in any rigorous environment. Some  fields have high requirements for communication, such as industrial field control, intelligent instrument, industrial control terminal and car electronics.

The Atmel’ AT91SAM9261SAT91SAM9261S processor is an ARM926EJ-S based high-performance 32-bit RISC Microcontroller with 16K byte instruction and 16K byte data cache memories; it is pin-to-pin compatible with the AT91SAM9261AT91SAM9261. It has additional 32K Bytes ROM, 16K Bytes SRAM embedded memories and can operate at 210 MIPS with a 190 MHz clock. Its extensive peripheral set includes USB 2.0, External Bus Interface, LCD Controller, Bus Matrix, System Controller, Reset Controller, Shutdown Controller, Clock Generator, Power Management Controller, Advanced Interrupt Controller, Debug Unit, Periodic Interval Timer, Watchdog Timer, Real-Time Timer, Three 32-bit PIO Controllers, Nineteen Peripheral DMA Channels (PDC), Multimedia Card Interface (MCI), Three Synchronous Serial Controllers (SSC), Three Universal Synchronous/Asynchronous Receiver Transmitters (USART), Two Master/Slave Serial Peripheral Interface (SPI), One Three-channel 16-bit Timer/Counters (TC), Two-wire Interface (TWI), IEEE 1149.1 JTAG Boundary Scan.

Ordering Information:

Key Applications: Home Entertainment, Industrial Automation, Metering, Mobile Electronics

Development Tools

Software Development Tools:

Tool Type	Supplier	MPN	Supported Family	Description
IDE	Atmel	Atmel Studio 6	ALL ARM	Atmel Studio 6 Integrated Development Environment (IDE) is the integrated development environment (IDE) for developing and debugging Atmel ARM Cortex-M and Atmel AVR microcontroller (MCU) based applications. The Atmel Studio 6 IDE gives you a seamless and easy-to-use environment to write, build and debug your applications written in C/C++ or assembly code. Learn More
IDE	ARM Keil	MDK ARM	ARM Cortex-M  / Cortex-R4 / ARM7 / ARM9	The MDK-ARM (Microcontroller Development Kit) is the complete software development environment for ARM7, ARM9, Cortex-M, and Cortex-R4 processor-based devices.  Learn More
RTOS	Micrium	Micrium uc/OSIII	ALL ARM	μC/OS-III is Micrium’s newest RTOS, designed for developers who need to save time on their current and subsequent embedded sytem projects. Learn More
RTOS	ARM Keil	KEIL RTX	ALL ARM	The Keil RTX is a royalty-free, deterministic Real-Time Operating System designed for microcontrollers based on ARM7TDMI, ARM9, and Cortex-M CPU cores. Learn More
RTOS	Segger	embOS	ALL ARM	SEGGER embOS (Real Time Operating System) follows strict, yet efficient coding and documentation standards. embOS is a priority-controlled real time operating system, designed to be used as foundation for the development of embedded real-time applications. Learn More

Hardware Development Tools:

Tool Type	Supplier	MPN	Supported Family	Description
Debuggers, Emulators & JTAG Tools	Atmel	AT91SAM-ICEAT91SAM-ICE	SAM3 / SAM7 / SAM9	USB JTAG In-Circuit Emulator for SAM3, SAM7 and SAM9 ARM-based microcontrollers
Emulator / Debugger / Programmer	ARM	ULINK2ULINK2	ARM Cortex-M  / ARM7 / ARM9	ULINK2 Debug Adapter
Emulator / Debugger / Programmer	ARM	ULINKProULINKPro	ARM Cortex-M  / ARM7 / ARM9	ULINKpro Debug and Trace Unit
Emulator	Segger	J-LinkJ-Link	ARM Cortex-M  / Cortex-R4 / Cortex-A / ARM7 / ARM9	JTAG/SWD Emulator with USB interface
Programmer	Segger	Flasher ARMFlasher ARM	ARM Cortex-M  / Cortex-R4 / Cortex-A / ARM7 / ARM9	Flash Programmer for ARM and Cortex cores

Back to top

Technical Documents

Learning Center

Design Elements

Back to top

Video

Back to top

Kit Features

Back to top

Kit Contents

1. The Embest SBC6000XSBC6000X supplied with below contents:

• SBC6000X board
• Serial cable
• Ethernet cable
• USB cable
• 12V power adapter
• LCD (optional, including touch screen)
  • Remark: 4.3 inch LCD (resolution: 480*272), 5.6 inch LCD (resolution: 640*480), 7 inch LCD (resolution: 800*480)
