Embest: COLINKEX_LPC11C14 EVB Kit Based on NXP LPC11C14 Microcontroller

Overview

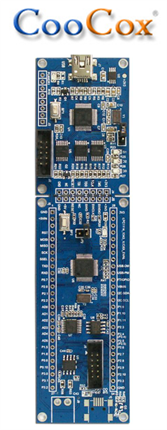

CoLinkEx_LPC11C14 EVBCoLinkEx_LPC11C14 EVB Kit uses the LPC11C14x301FBD48LPC11C14x301FBD48 for NXP. The LPC11Cxx are ARM Cortex-M0 based microcontrollers for embedded applications featuring a high level of integration and low power consumption.

CoLinkEx_LPC11C14 EVBCoLinkEx_LPC11C14 EVB Kit is a cost-effective but high-performance evaluation tool of the ARM Cortex-M0. The board has UART Interface which support RS-485 and EIA-485 modes, 8 channel 10 bit ADC Converter, 2 16bit timer and 2 32bit timer, a wide range of interfaces such as SPI, I2C, and integrates a PMU (Power Manage Unit). It supports IO extensions, which is compatible with LPCXpresso Base Board, making it a great starting point for your next Cortex-M0 project. The onboard adapter CoLinkEx supports downloading and debugging the project in MDK and IAR.

You can use the CoLinkEx_LPC11C14 EVB Kit to generate and test application programs for the NXP LPC11xx microcontroller family.

The LPC11xx MCUs operate at CPU frequencies of up to 50 MHz, the peripheral complement of the LPC11xx series includes up to 32KB of flash memory, up to 8 KB of data memory, one Fast-mode Plus I2C-bus interface, one RS-485/EIA-485 UART, up to two SPI interfaces with SSP features, four general purpose timers, a 10-bit ADC, and up to 42 general purpose I/O pins. It integrates an ARM Cortex-M0 built-in Nested Vectored Interrupt Controller (NVIC), integrated PMU (Power Management Unit) to minimize power consumption during Sleep, Deep-sleep, and Deep power-down modes. The LPC11Cxx operates in the -40 to +85 °C temperature range, from a 1.8 to 3.6 V power supply.

Key Applications: Emetering, Lighting, Industrial networking, Alarm systems, White goods

Development Tools

Software Development Tools:

Tool   Type	Supplier	MPN	Supported   Family	Description
IDE	ARM	Keil MDK-ARM	ARM Cortex-M  / Cortex-R4 / ARM7 / ARM9	The MDK-ARM is a complete software development environment for Cortex-M, Cortex-R4, ARM7 and   ARM9 processor-based devices. MDK-ARM is specifically designed for microcontroller applications, it is easy to learn   and use, yet powerful enough for the most demanding embedded applications. Learn   More
IDE	Embest	CoIDE	ARM Cortex M0 & M3	CooCox offer a freely available, powerful software development tool for ARM Cortex-M3 & Cortex-M0 based microcontrollers. Coocox Tools organizes and provides the knowledge required by developers. Learn More

Hardware Development Tools:

Tool   Type	Supplier	MPN	Supported   Family	Description
Emulator / Debugger / Programmer	ARM	ULINK2ULINK2	ARM Cortex-M  / ARM7 / ARM9	ULINK2 Debug Adapter
Emulator / Debugger / Programmer	ARM	ULINKProULINKPro	ARM Cortex-M / ARM7 / ARM9	ULINKpro Debug and Trace Unit
Emulator	Segger	J-LinkJ-Link	ARM Cortex-M  / Cortex-R4 / Cortex-A / ARM7 / ARM9	JTAG/SWD Emulator with USB interface
Programmer	Segger	Flasher ARMFlasher ARM	ARM Cortex-M  / Cortex-R4 / Cortex-A / ARM7 / ARM9	Flash Programmer for ARM and Cortex cores
Debugger	Embest	ColinkExColinkEx	ARM Cortex-M	ARM Cortex-M MCU JTAG Hardware Debugging Probe which supports in CooCox software and Keil Realview MDK

Back to top

Technical Documents

Learning Center

Design Elements

Back to top

Video

Back to top

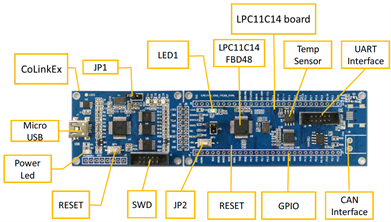

Kit Features

Back to top

Kit Contents

The Embest CoLinkEx_LPC11C14 EVBCoLinkEx_LPC11C14 EVB Evaluation Board kit is supplied with below contents:

• Main Board: CoLinkEx_LPC11C14 EVB_V10
• Two Jumper Caps (Height: 5mm each)
• USB 2.0 Cable (Length: 80cm )
• Serial Cable (Length: 1.2m )
• Plastics Package Box (150*140*25mm )
• CD-ROM
