Cypress: CY8CKIT-038 PSoC®︎ 4200 Family Processor Module Kit

BUY NOWBUY NOW

Overview

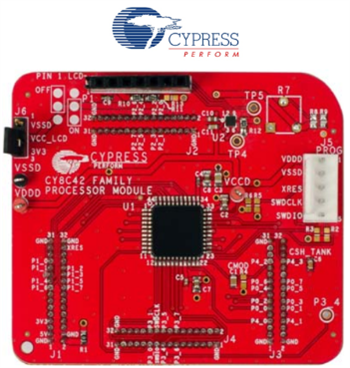

The CY8CKIT-038CY8CKIT-038 PSoC 4200 Family Processor Module is designed for users to evaluate and experiment with Cypress's PSoC 4 programmable system-on-chip architecture. When used in conjunction with the PSoC Development Kit (CY8CKIT-001CY8CKIT-001), it provides a development platform with access to all I/O pins on the device. This processor module is suitable for development with the PSoC 4100 and PSoC 4200 family of devices. You can also design your own projects with PSoC Creator, the integrated design environment (IDE) for PSoC devices. The CY8CKIT-001 PSoC Development Kit (DVK) provides a common development platform where you can prototype and evaluate different solutions using any one of the PSoC 1, PSoC 3, PSoC 4, or PSoC 5LP architectures.

PSoC 4200 is a family of programmable embedded system devices with an ARM Cortex-M0 CPU. It combines programmable analog, programmable interconnect, and user programmable digital logic with a high -performance ARM Cortex-M0 subsystem.

Note: Processor modules can not be used stand-alone, they must be used in conjunction with the CY8CKIT-001CY8CKIT-001

Key Applications: Sensor-less e-bike, White Goods, Field Oriented Control (FOC) Motor Control, Home Appliances

More Development Kits and Tools
	More Cypress Development Kits		Cypress Overview
	Knode Development Kits & Platform Room		element14 Knode

Development Tools

Software Development Tools:

Tool Type	Supplier	MPN	Supported Family	Description
IDE	Cypress	PSoC Createor	PSoC 3 / PSoC 4 / PSoC 5 / PSoC 5LP	PSoC Creator is a state-of-the-art software development IDE combined with a revolutionary graphical design editor to form a uniquely powerful hardware/software co-design environment. This co-design approach frees embedded designers from hardware re-spins and software hacks. It also enables immediate testing of new ideas, rapid response to hardware changes, and error-free software interaction with on-chip peripherals. Learn More
Programmer Software	Cypress	PSoC Programmer	All PSoC	The PSoC Programmer software tool supports all Cypress PSoC programming hardware and PSoC devices. PSoC Programmer is a simple GUI that connects to programming hardware to program and configure PSoC devices. From the GUI users will be able to select the target device, configure programming selections and execute a number of programming actions such as Program, Read, Verify and Erase. PSoC Programmer is a required installation for both PSoC Creator and PSoC Designer.
IDE	ARM	Keil MDK-ARM	ARM Cortex-M / Cortex-R4 / ARM7 / ARM9	The MDK-ARM is a complete software development environment for Cortex-M, Cortex-R4, ARM7 and ARM9 processor-based devices. MDK-ARM is specifically designed for microcontroller applications, it is easy to learn and use, yet powerful enough for the most demanding embedded applications.Learn More
RTOS	Segger	embOS	ARM Cortex-M	embOS is a priority-controlled real time operating system, designed to be used as foundation for the development of embedded real-time applications. It is a zero interrupt latency, high-performance RTOS that has been optimized for minimum memory consumption in both RAM and ROM, as well as high speed and versatility. Learn More

Hardware Development Tools:

Tool Type	Supplier	MPN	Supported Family	Description
Emulator / Debugger / Programmer	ARM	ULINK2ULINK2	ARM Cortex-M / ARM7 / ARM9	ULINK2 Debug Adapter
Emulator / Debugger / Programmer	ARM	ULINKProULINKPro	ARM Cortex-M / ARM7 / ARM9	ULINKpro Debug and Trace Unit
Emulator	Segger	J-LinkJ-Link	ARM Cortex-M / Cortex-R4 / Cortex-A / ARM7 / ARM9	JTAG/SWD Emulator with USB interface
Programmer	Segger	Flasher ARMFlasher ARM	ARM Cortex-M / Cortex-R4 / Cortex-A / ARM7 / ARM9	Flash Programmer for ARM and Cortex cores

Technical Documents

Learning Center

Type	Description
User Guide	Cypress: User Guide for CY8CKIT-038 PSoC 4200 Family Processor Module Kit
Quick Start Guide	Cypress: Quick Start Guide for CY8CKIT-038 PSoC 4200 Family Processor Module Kit
Datasheet	Cypress: Datasheet for PSoC 4: PSoC 4200 Family
Release Notes	Cypress: Release Notes for CY8CKIT-038 PSoC 4200 Family Processor Module Kit

Design Elements

Type	Description
Schematic	Cypress: Schematic file for CY8CKIT-038 PSoC 4200 Family Processor Module Kit
BOM	Cypress: BOM file for CY8CKIT-038 PSoC 4200 Family Processor Module Kit
Layout	Cypress: Layout file for CY8CKIT-038 PSoC 4200 Family Processor Module Kit
Design Package	Cypress: Design Package for CY8CKIT-038 PSoC 4200 Family Processor Module Kit (Kit Design Files, Documentation, Examples)

Video

Kit Features

44-Pin TQFP package PSoC 4200 family device
- 48-MHz Cortex-M0 CPU (0.9 DMIPS/MHz)
- 32-KB flash and 4-KB SRAM
- Programmable logic: Four universal digital blocks
- Analog blocks: 12-bit 1-MSPS SAR ADC with sample and hold and a programmable sequencer, a continuous time block with two opamps with a comparator mode, a temperature sensor, and two low-power comparators
- Fixed-function digital blocks: Two combination UART/SPI/I2C (one function at a time) serial communication blocks (SCB). Four 16-bit counter/timer/PWMs with center-aligned capability
- Fixed-function special blocks: CSD CapSense block with shield driver for waterproofing and digital LCD drive on all pins
- Clocking: Trimmed IMO and ILO clock sources
- Deep Sleep, Hibernate, and Stop low-power modes

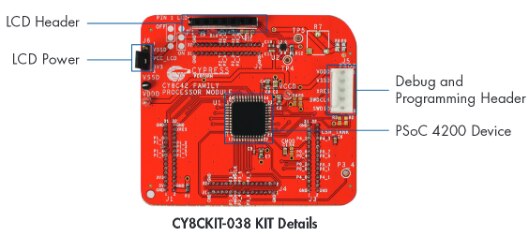

Four 2 × 16 headers, which connect to the CY8CKIT-001 DVK main board
CMOD circuitry for CapSense application
Single-wire debug (SWD) connector

Kit Contents

PSoC 4200 Family Processor Module Board featuring a CY8C4245AXI-483CY8C4245AXI-483 device
I2C Character LCD
Kit CD/DVD
Quick Start Guide
