failing clearance checks

bzzz
bzzz over 9 years ago

Hi,



I tried to verify the routing, but it fails stating the clearance rules are not followed. I tried to change the clearance from 0.2mm to 0.1mm, but that didn't help.

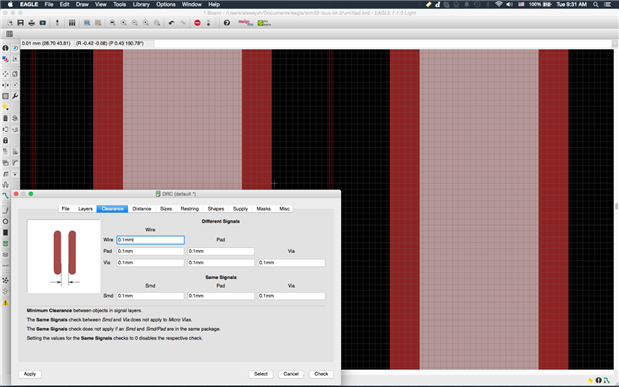

it was even complaining about the space between stm32's pads. here are couple screenshots.





what am I doing wrong?



thansk, Alex

  • Sign in to reply
  • Cancel
  • autodeskguest
    0 autodeskguest over 9 years ago

    On 28/10/2014 7:50 p.m., alex tomas wrote:

    Hi,



    I tried to verify the routing, but it fails stating the clearance rules

    are not followed. I tried to change the clearance from 0.2mm to 0.1mm,

    but that didn't help.

    it was even complaining about the space between stm32's pads. here are

    couple screenshots.







    what am I doing wrong?





    Check your net classes. The clearances specified there have to be

    satisfied as well.



    HTH

    Warren





    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Reject Answer
    • Cancel
  • bzzz
    0 bzzz over 9 years ago in reply to autodeskguest

    oh, silly me.. thanks a lot!
