Help me to setup the software to use the trimak motor

manojroy123 2 months ago

I am trying to install TMCL-IDE for windows. I am getting this error. Please help me in solving it.

Top Replies

cstanton 1 month ago in reply to manneveru +3

manneveru said: This is not right forum for this post This post is relating to a RoadTest and its consequent review, it's the correct place for it to be situated. You can turn off replies to the thread…
Jan Cumps 1 month ago in reply to manojroy123 +2

Manoj, it may help if you: use the correct name in the subject. Shows respect to the manufacturer that sponsored the board explain what step you are trying to complete in the user guide/documentation…
beacon_dave 2 months ago in reply to manojroy123 +1

https://www.analog.com/media/en/technical-documentation/user-guides/how-to-start-linux-tmcl-ide.pdf

manojroy123 1 month ago in reply to Jan Cumps

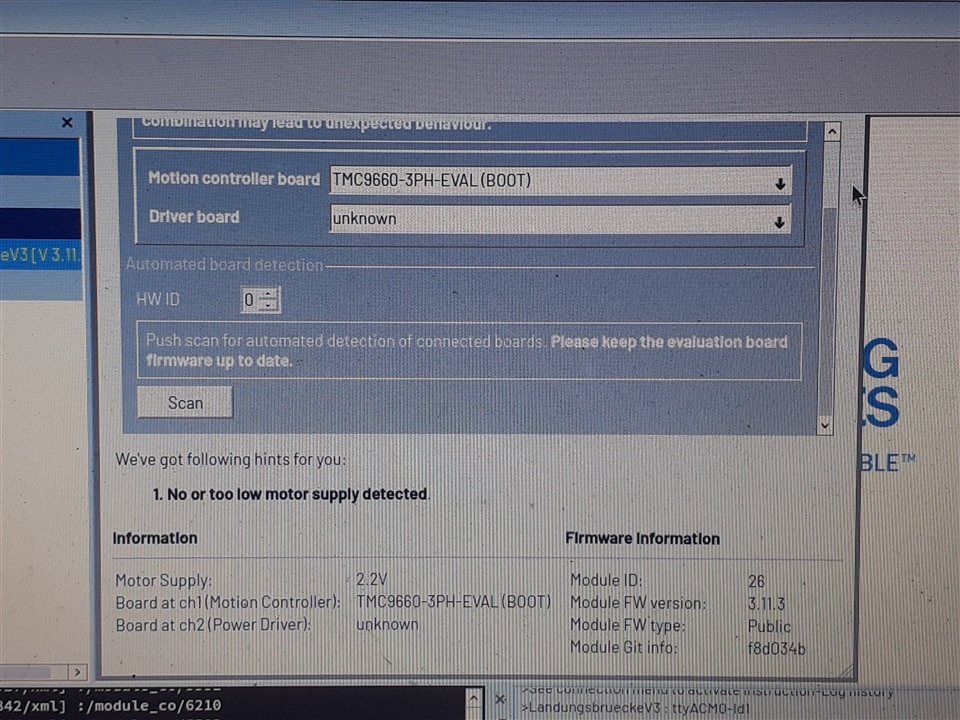

Which driver board to select and what HW ID to set.
Cancel
Vote Up 0 Vote Down

Sign in to reply

Cancel
Jan Cumps 1 month ago in reply to manojroy123
Cancel
Vote Up 0 Vote Down

Sign in to reply

Cancel
beacon_dave 1 month ago in reply to manojroy123

Do you mean this one ?
Cancel
Vote Up 0 Vote Down

Sign in to reply

Cancel
beacon_dave 1 month ago in reply to manojroy123

Perhaps need to consider resolving this first before jumping ahead to the Wizard Pool ?

There appears to be a separate tool

UblTools

that can configure the bootloader independently of the one built into TMCL-IDE

https://www.analog.com/en/resources/app-notes/an-2601.html

If nothing else, the following two commands look like they could give useful information:

Command: inspect chip

Command: inspect config
Cancel
Vote Up 0 Vote Down

Sign in to reply

Cancel
beacon_dave 1 month ago in reply to manojroy123

This may be relevant

and may explain why it isn't showing in TMCL-IDE device tree on the Linux version.

This may be an issue as you don't really want to commit to using the OTP just yet, and looks like the config data is lost if the board is power cycled/reset.
Cancel
Vote Up 0 Vote Down

Sign in to reply

Cancel
manojroy123 1 month ago in reply to Jan Cumps

But what about driver board. Which driver board should I select.
Cancel
Vote Up 0 Vote Down

Sign in to reply

Cancel
manojroy123 1 month ago in reply to Jan Cumps

For motion control which board to select TMC9660-3PH-EVKIT(BOOT) or TMC9660-3PH-EVKIT(PARAM)
Cancel
Vote Up 0 Vote Down

Sign in to reply

Cancel
manojroy123 1 month ago in reply to beacon_dave

yes
Cancel
Vote Up 0 Vote Down

Sign in to reply

Cancel
beacon_dave 1 month ago in reply to manojroy123

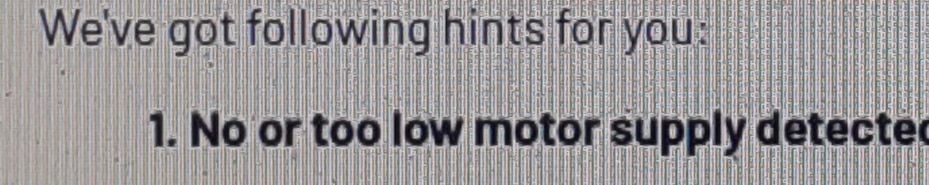

It looks like it turns red once the motor supply voltage reaches an acceptable threshold but it's the type of behaviour that would be best verified by referring to the user documentation for the TMCL-IDE.
Cancel
Vote Up 0 Vote Down

Sign in to reply

Cancel
manojroy123 1 month ago

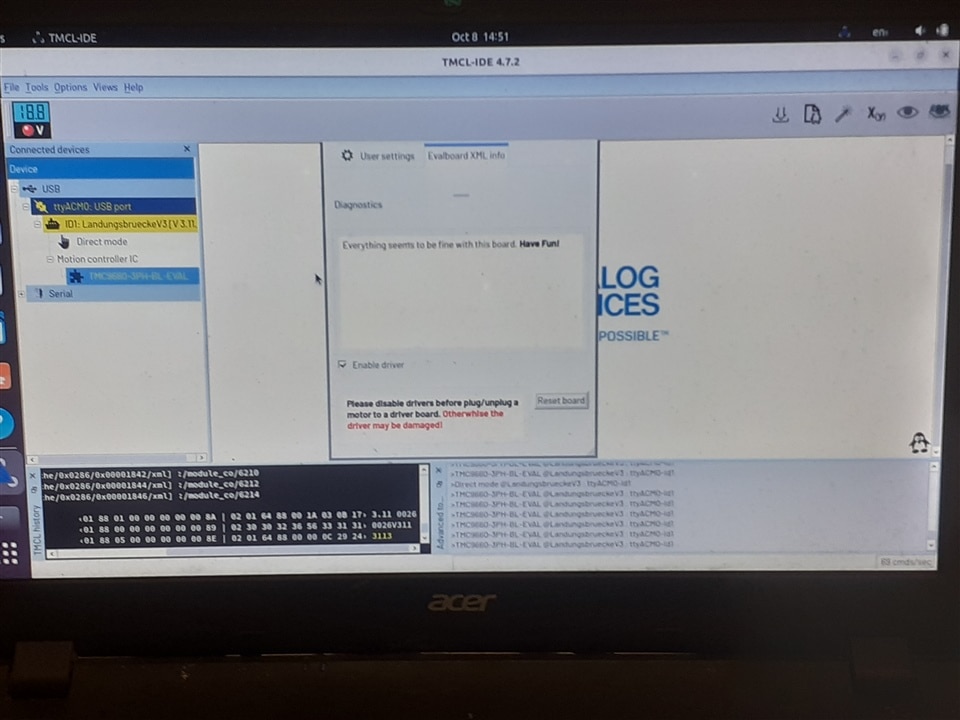

I am able to get red signal on on the software and fault signal of in the driver board. Know how to start the motor and allow it to rotate.
